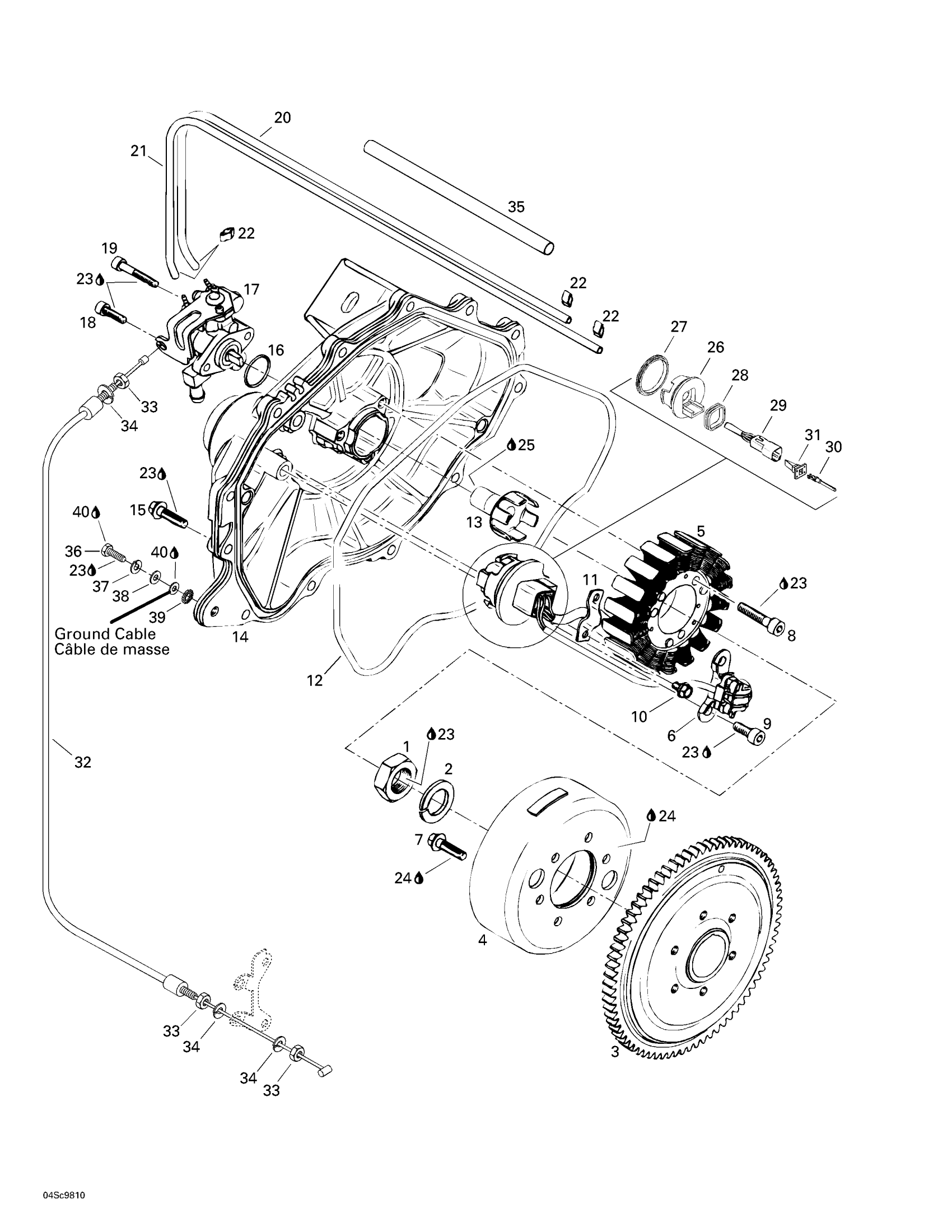

Sea-doo GTX Limited, 5837/5842, 1998 03- Magneto, Oil Pump Diagram

#

Description
Price

1

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

2

Lock Washer 18 mm

290945757

Unavailable

3

Hub Flywheel

290966680

Unavailable

4

MAGNETO FLYWHEEL - Call your local BRP dealership

290886598

Unavailable

5

STATOR PLATE ASS'Y - Call your local BRP dealership

290886588

Unavailable

6

Sensor Ass'y

420966832

$184.99

7

Socket Head Screw M6 x 16

290640171

Unavailable

8

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

9

Socket Head Screw M6 x 16

420241237

$2.22

10

Hex. Screw M5 x 8

215050848

Unavailable

11

Retainer Plate

290853080

Unavailable

12

O-Ring

290931690

Unavailable

13

Oil Pump Shaft

290837390

Unavailable

14

Ignition Cover

290811062

Unavailable

15

Hex. Screw M6 x 25

290240032

Unavailable

16

O-RING - Call your local BRP dealership

293300018

Unavailable

17

Oil Pump Ass'y

290887335

Unavailable

18

Cylindrical Slotted Screw M5 x 16

215951660

Unavailable

19

Socket Head Screw M5 x 30

290940883

Unavailable

20

Oil Hose 1500Mm Long

219704404

$17.26

21

Oil Hose 1500Mm Long

219704404

$17.26

22

Clamp

290256408

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

Sealant Loctite 648

219703000

$45.99

25

Dow Corning 111, 150 g

413707000

$59.99

26

Adaptor

270000138

Unavailable

27

Gasket

293300033

Unavailable

28

Gasket

293200030

Unavailable

29

Male Terminal Housing, 6 Circuits

710001539

$19.99

30

Male Terminal

278000631

$4.39

31

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

32

Injection Cable | Includes 32 - 34.

270000382

Unavailable

33

Hex. Nut M6

232160600

$1.15

34

Lock Washer Helical M6

234161601

$1.15

35

Protector Hose

290260437

Unavailable

36

Hex. Screw M6 X 16

207161660

$1.59

37

Lock Washer Helical M6

234161601

$1.15

38

Flat Washer M6, Stainless

234062600

$0.77

39

External Serrated Lock Washer 6 mm

234461608

$1.15

40

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

41

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290888131

Unavailable

42

Cylinder Gasket Set (Not Shown)

290888136

Unavailable
