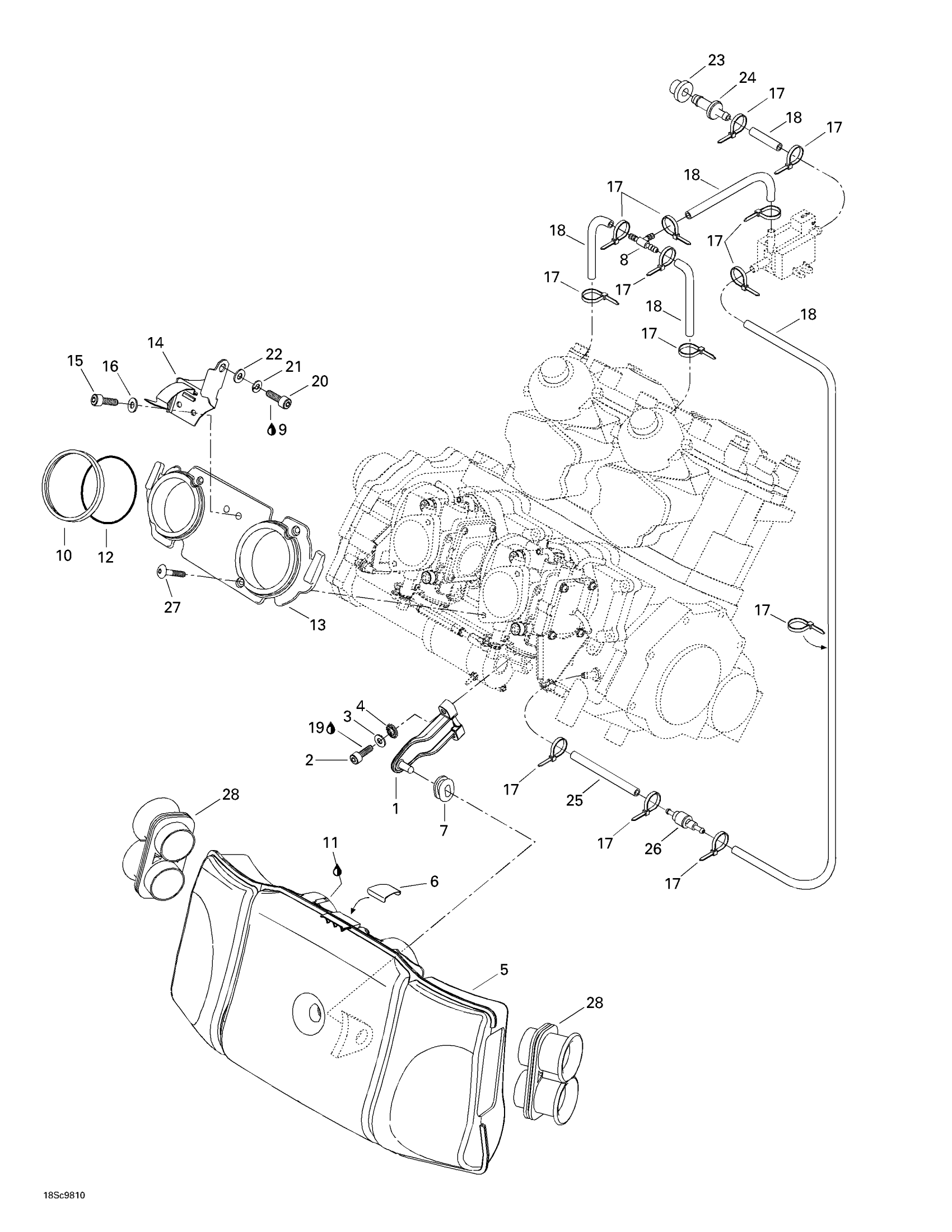

Sea-doo GTX Limited, 5837/5842, 1998 Air Intake System Diagram

#

Description
Price

1

Silencer Support

273000123

Unavailable

2

Socket Head Screw M6 X 35

205063560

$1.85

3

Stainless Flat Washer M6

234061600

$0.25

4

External Serrated Lock Washer 6 mm

234461608

$0.92

5

Air Silencer

273000114

Unavailable

6

Support Plate

273000112

Unavailable

7

Cable Grommet

293720052

Unavailable

8

T-Fitting

293710068

$6.59

9

Loctite 243, 10 ml

293800060

$20.77

10

Gasket

293250122

$60.42

11

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

12

O-Ring

293250065

Unavailable

13

Air Silencer Adaptor

270500383

Unavailable

14

Holder

270000419

Unavailable

15

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.49

16

Stainless Flat Washer M6

234061600

$0.25

17

Tie Wrap 94 mm | 4X4

293750001

$0.83

18

Was 420660574 Pressure Hose 280 mm

219704352

$202.21

19

Loctite 271, 10 ml

293800005

$20.77

20

SCREW-SOCKET HD.DIN.912A2 - Call your local BRP dealership

215981660

Unavailable

21

Lock Washer 8 mm, Stainless

234181601

$0.46

22

Flat Washer 8 mm, Stainless

234082600

$1.98

23

Grommet

293720029

$1.13

24

Fitting

293700031

Unavailable

25

Hose 6 Mm 15000Mm Long

219704360

$104.62

26

Check Valve

275500417

Unavailable

27

Screw

270500357

Unavailable

28

Inlet Tube

273000107

Unavailable
