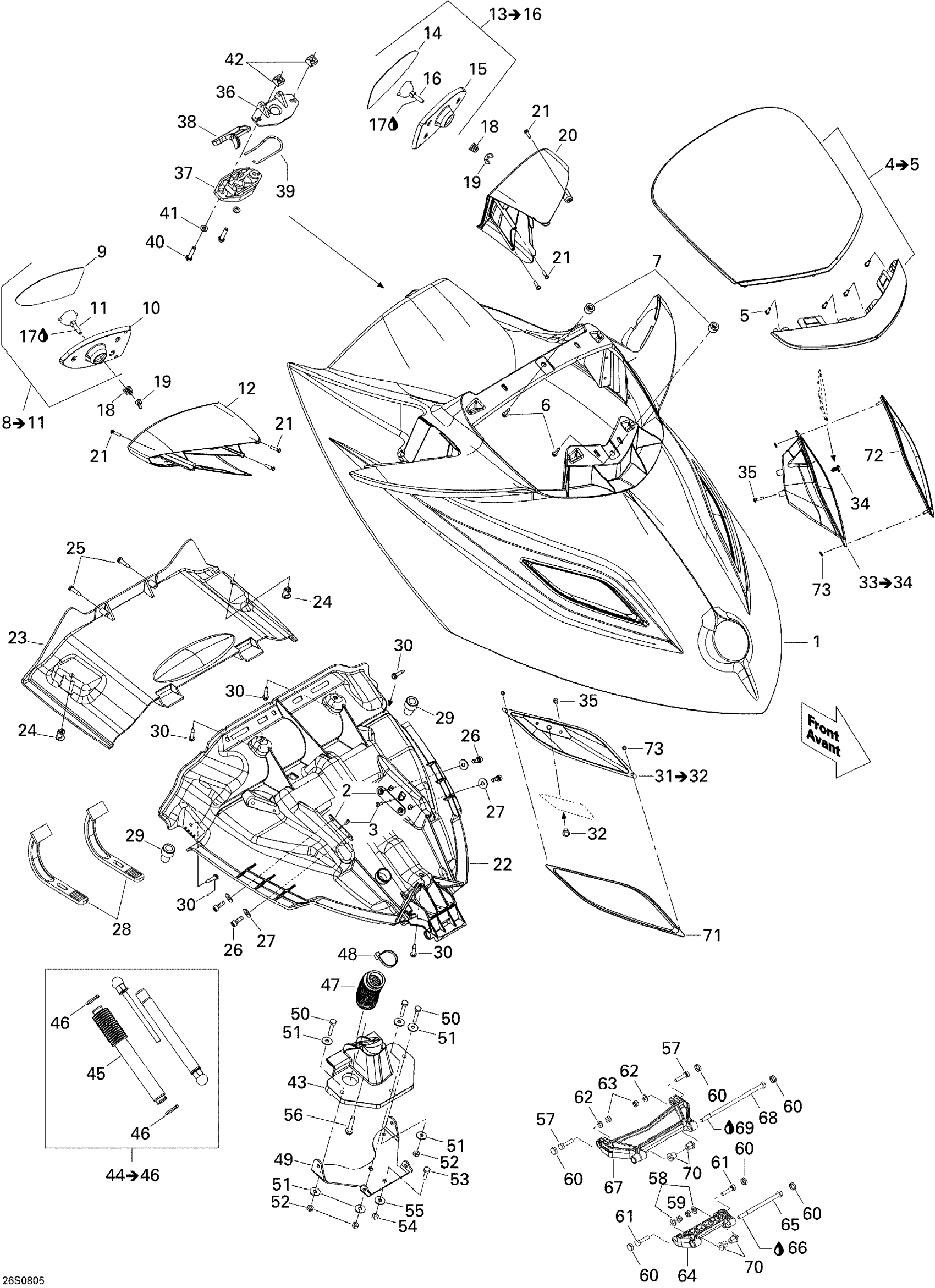

Sea-doo GTX Limited 215, 2008 Front Storage Compartment Diagram

#

Description
Price

1

STORAGE COVER - Call your local BRP dealership | Includes 1 to 3

269501534

Unavailable

2

PLATE - Call your local BRP dealership

277001479

Unavailable

3

Pop RIvet 1/8 X ,375

293150285

$0.33

4

Deflector | Includes 4 to 5

269501611

$154.99

5

Hex. Flange Screw K40 X 13

241141360

$0.67

6

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

7

Spacer

291001203

$13.49

8

RH Mirror Ass'y | Includes 8 to 11

269501602

Unavailable

9

RH Mirror

269501328

Unavailable

10

Mirror Frame

269501330

Unavailable

11

MIRROR BALL JOINT - Call your local BRP dealership

269501333

Unavailable

12

RH MIRROR HOUSING - Call your local BRP dealership

269501535

Unavailable

13

LH Mirror Ass'y | Includes 13 to 16

269501603

Unavailable

14

LH MIRROR - Call your local BRP dealership | Includes 10 to 12

269501634

Unavailable

15

Mirror Frame

269501330

Unavailable

16

MIRROR BALL JOINT - Call your local BRP dealership

269501333

Unavailable

17

Synthetic Grease, 400 G

293550010

Unavailable

18

Mirror Spring

269500453

$10.49

19

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

20

LH MIRROR HOUSING - Call your local BRP dealership

269501536

Unavailable

21

Flange Torx Screw K40 X 16

250000287

$2.11

22

STORAGE COVER SUB-ASS'Y - Call your local BRP dealership

269501552

Unavailable

23

ACCESS BOARD - Call your local BRP dealership

269501610

Unavailable

24

Tuflok Plastic Rivet

293150230

$1.47

25

Hex. Screw 10-14 X 7/8”

211000023

$3.59

26

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

27

Flat Washer M6, Stainless

234062600

$0.77

28

Strap

269502417

$17.69

29

Rubber Buffer

293830119

$18.49

30

Hex. Screw 10-14 X 7/8”

211000023

$3.59

31

RH Grille Ass'y | Includes 31 to 32

269501635

Unavailable

32

Black, Dart

293730016

$9.97

33

LH Grille Ass'y | Includes 33 to 34

269501636

Unavailable

34

Black, Dart

293730016

$9.97

35

Flange Torx Screw K40 X 16

250000287

$2.11

36

Latch Ass'y

269700109

$24.99

37

Latch Ass'y

269700109

$24.99

38

Latch Ass'y

269700109

$24.99

39

Latch Spring

269700017

$9.19

40

Hex. Screw M6 X 30

207063060

$1.89

41

Stainless Flat Washer M6

234061600

$0.33

42

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

43

SHOCK BASE - Call your local BRP dealership

269501553

Unavailable

44

Shock Ass'y | Includes 44 to 46

269501555

$92.99

45

BELLOW - Call your local BRP dealership

269501557

Unavailable

46

Tie Wrap 94 mm | 4X4

293750001

$1.03

47

GROMMET - Call your local BRP dealership

293720078

Unavailable

48

Tie-Rap 180 mm

414115200

$0.11

49

PIVOT SUPPORT - Call your local BRP dealership

269501639

Unavailable

50

Hex. Screw M6 X 30

207163060

$1.48

51

Flat Washer M6, Stainless

234062600

$0.77

52

Elastic Stop Nut M6, Brass

232561200

$4.23

53

Hex. Forming Screw M6 X 20

207162060

$1.29

54

Elastic Stop Nut M6, Brass

232561200

$4.23

55

Flat Washer M6, Stainless

234062600

$0.77

56

Plastite Hex. Screw M6.8 X 35

243163560

$4.44

57

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

58

Stainless Flat Washer M6

234061600

$0.33

59

Elastic Stop Nut M6, Brass

232561200

$4.23

60

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

61

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

62

Stainless Flat Washer M6

234061600

$0.33

63

Elastic Stop Nut M6, Brass

232561200

$4.23

64

FRONT ARM - Call your local BRP dealership

269501482

$19.99

65

Hex. Screw M6 X 100

230060060

$7.41

66

Loctite 243, 10 ml

293800060

$21.49

67

REAR ARM - Call your local BRP dealership

269501481

Unavailable

68

Hex. Screw M6 X 150

230065060

$10.16

69

Loctite 271, 10 ml

293800005

$26.99

70

Sleeve

269500706

$4.65

71

RH CHROME CAP - Call your local BRP dealership

269501547

Unavailable

72

LH CHROME CAP - Call your local BRP dealership

269501551

Unavailable

73

Push Nut | Not shown

211100002

$2.19
