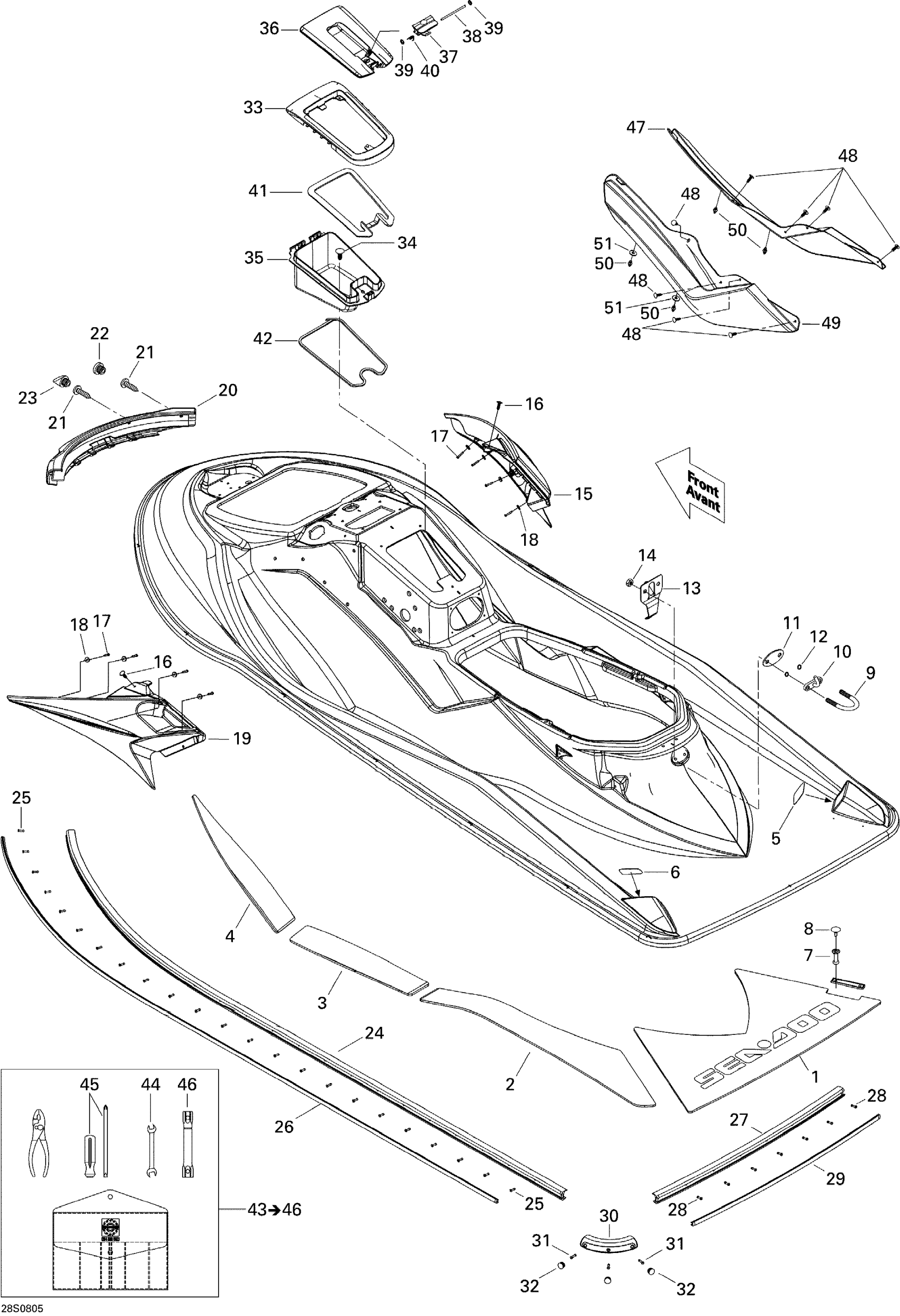

Sea-doo GTX Limited 215, 2008 Body, Rear View Diagram

#

Description
Price

1

ANTI SLIP MAT_DECK - Call your local BRP dealership

291002316

Unavailable

2

RH CENTER REAR CARPET - Call your local BRP dealership

291002382

Unavailable

2

LH CENTER REAR CARPET - Call your local BRP dealership

291002383

Unavailable

3

RH CENTER FRONT CARPET - Call your local BRP dealership

291002384

Unavailable

3

LH Center Front Carpet

291002385

Unavailable

4

RH FRONT CARPET - Call your local BRP dealership

291002386

Unavailable

4

LH FRONT CARPET - Call your local BRP dealership

291002387

Unavailable

5

RH ANTI-SKID - Call your local BRP dealership

291001758

Unavailable

6

LH Anti-Skid

291001759

Unavailable

7

Rivet 1/8"

293150016

$0.40

8

Black, Snap Cap

293000014

$1.09

9

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

10

Hook | Package LTD

291002351

$69.99

11

Black, Finition Plate

291001386

$10.99

12

O-Ring

293300123

$1.03

13

Retainer Plate

291001747

Unavailable

14

Hex. Elastic Nut M8 Brass

232581200

$2.22

15

RH FRONT MOULDING - Call your local BRP dealership

269501570

Unavailable

16

Black, Dart

293730006

$0.99

17

Hex. Flange Screw K40 X 25

241142560

$2.64

18

WASHER 4.3 MM, NYLON - Call your local BRP dealership

250200055

Unavailable

19

LH Front Moulding

269501571

Unavailable

20

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

21

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

Unavailable

22

Bumper Plug, Black

291001519

$5.49

23

Bumper Plug, Black

291001040

$7.39

24

Black, Side Bumper

204050270

$179.99

25

Pop Rivet 3/16"

293150005

$0.52

26

SIDE TRIM, GREY - Call your local BRP dealership

291002324

Unavailable

27

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

28

Pop Rivet 3/16"

293150005

$0.52

29

REAR BUMPER TRIM, GREY - Call your local BRP dealership

291002325

Unavailable

30

Bumper Corner

291002244

$48.99

31

Pop Rivet 3/16"

293150013

$1.37

32

Bumper Plug, Black

291000339

$2.99

33

Cover Trim, Black

269501031

$53.99

34

Black, Dart

293730006

$0.99

35

GLOVE BOX - Call your local BRP dealership

269501281

Unavailable

36

Glove Box Door

269501647

Unavailable

37

Latch, Black

269500553

$21.99

38

Pin

211400008

$9.10

39

Push Nut | Not shown

211100002

$2.19

40

Latch Spring

291000922

$7.39

41

GASKET - Call your local BRP dealership

293250146

Unavailable

42

GASKET - Call your local BRP dealership

293250127

Unavailable

43

TOOL KIT - Call your local BRP dealership | Includes 43 to 46

294000744

Unavailable

44

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

45

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

RH SIDE MOULDING - Call your local BRP dealership

291002447

Unavailable

48

Black, Dart

293730006

$0.99

49

LH SIDE MOULDING - Call your local BRP dealership

291002448

Unavailable

50

DART, DOUBLE - Call your local BRP dealership

293730008

Unavailable

51

Seal

293200099

Unavailable
