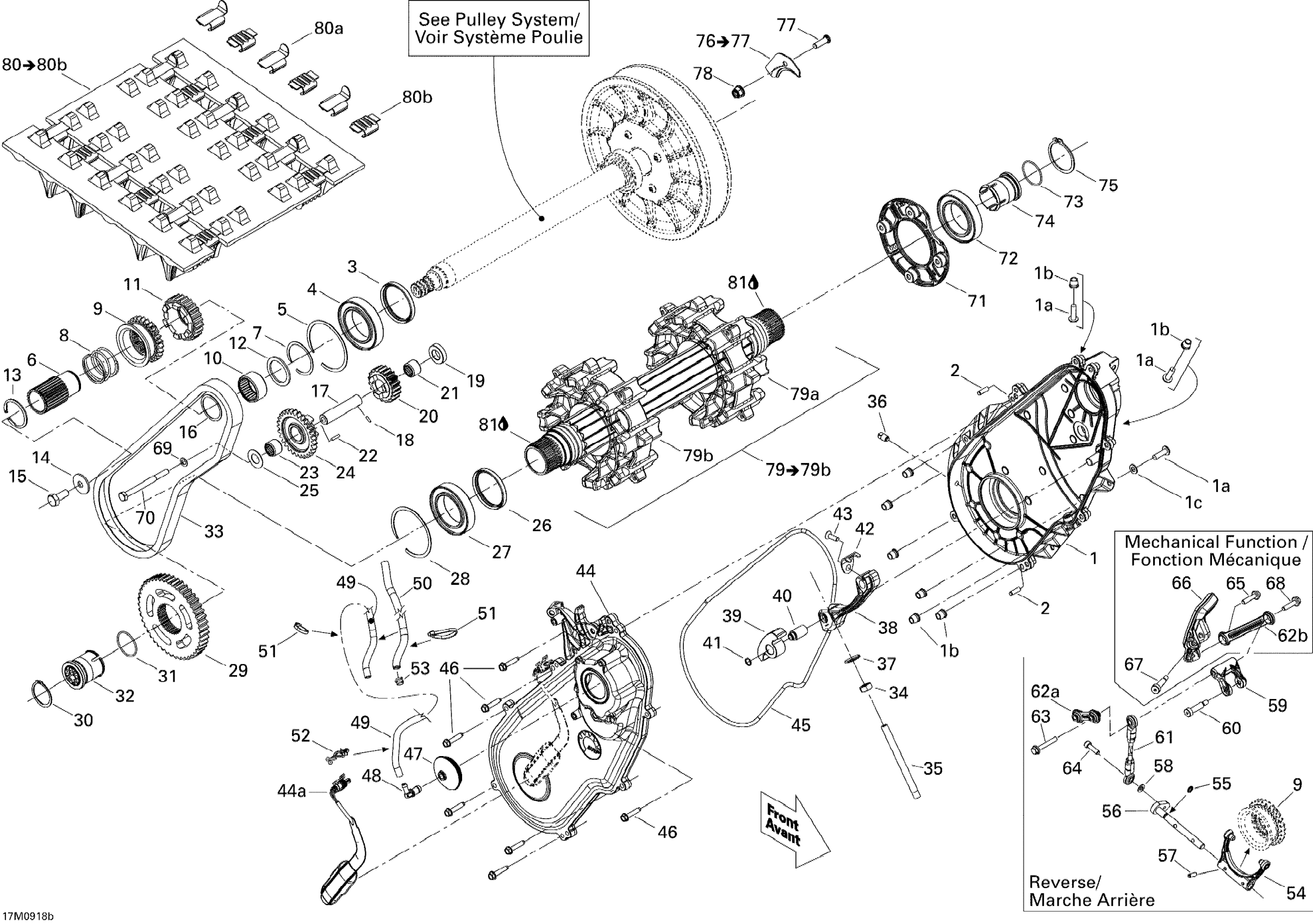

Ski-Doo GTX LE 1200 4-TEC, 2009 Drive System Diagram

#

Description
Price

1

Chaincase

504153184

$321.51

1a

Hex. Flange Screw M6 X 20

207662034

$1.74

1b

Flange Elastic Nut M6

233261434

$3.61

1c

Flat Washer 6 mm

234061410

$1.04

2

Dowel Pin

250400048

$2.06

3

Oil Seal

293200158

$12.52

4

Ball Bearing

293350115

$11.15

5

Circlip

504152576

$8.71

6

Coupling Shaft

504152687

Unavailable

7

Circlip

293370054

$7.31

8

Spring Release

504153179

$9.83

9

Sliding Gear, 27 Teeth

504152853

Unavailable

10

Needle Bearing

293350063

$23.05

11

SPROCKET, 24 TEETH - Call your local BRP dealership

504152852

Unavailable

12

Washer

504152689

$6.26

13

Circlip

293370055

$7.31

14

Spring Washer M10

504152784

$6.26

15

Hex. Screw M10 X 25

207102544

$1.11

16

Washer

504152862

$9.31

17

Reverse Shaft

504083100

$46.12

18

Rolled Pin M3 X 10

250400010

$1.85

19

Ring

504078700

$17.66

20

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

581096900

$103.82

21

Needle Bearing

293350064

$22.28

22

Alignement Rod

570048600

$13.77

23

Needle Bearing

293350064

$22.28

24

Sprocket, 29 Teeth

504152724

$175.35

25

Spacer

504077300

$6.26

26

Oil Seal

293200159

$13.12

27

Ball Bearing

293350059

$30.74

28

Circlip

504152582

$8.71

29

Kit Sprocket This part replaces 504152593.

861805538

$153.05

30

Circlip

504152572

$6.26

31

O-Ring

293300122

$2.06

32

Magnetic Cap

504152619

$23.05

33

Drive Chain, 104 Links

504152629

$173.82

34

Hex. Nut M10 X 1.5

232006414

$1.11

35

Adjustment Screw

504152602

$9.62

36

Magnetic Plug 1/8 - 27 NPTF

504152636

$8.95

37

Bonded Washer

250200100

$1.74

38

Chaine Tensionner

504153431

$13.77

39

Slider Chain

504152739

$67.66

40

Tensioner Axle

504152841

$14.65

41

Circlip

504152282

$3.11

42

Chain Slider

504153122

$15.35

43

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

44

Chaincase Cover Ass'y

504152785

Unavailable

44a

Rotation Sensor

504152896

$35.35

45

Tight Seal

293300130

$7.31

46

Hex. Flange Screw M6 X 1.0 X 30

250000360

$1.74

47

Cap

504152860

$19.20

48

Male Connector

414580700

$3.38

49

Polyurethane Hose 10000Mm Long

219704410

$46.12

50

Protector Tube

504153074

$12.58

51

Tie Wrap 142 mm

293750002

$0.88

52

ATTACHE *BRACKET - Call your local BRP dealership

291000714

Unavailable

53

Spring Clamp

414554800

$0.83

54

Fork Ass'y

504152797

Unavailable

55

O-Ring

414484400

$7.31

56

Welded Axle Fork

504152956

$28.43

57

Spring Pin M5 X 16

250400045

$3.73

58

Flat Washer 6 mm

234061410

$1.04

59

Lever

504153427

$28.43

60

Socket Head Screw M8 X 25, Scotch Grip

250000340

$6.18

61

Ball Joint

504152951

$44.58

62a

Double Ball Joint

504152710

$51.51

62b

Double Ball Joint

504152766

$15.35

63

Socket Head Screw M6 X 20, Scotch Grip

205562044

$1.74

64

Socket Head Screw M6 X 20, Scotch Grip

205562044

$1.74

65

Hex. Flange Screw M6 X 25

207562544

$1.39

66

Grip

504153082

$33.05

67

Socket Head Screw M8 X 25, Scotch Grip

250000340

$6.18

68

Hex. Flange Screw M6 X 25

207562544

$1.39

69

Washer

504082900

$2.58

70

Hex. Screw M8 X 90

207089044

$2.82

71

Bearing Housing

507032437

$18.43

72

Ball Bearing

293350059

$30.74

73

O-Ring

293300122

$2.06

74

Magnetic Cap

504152619

$23.05

75

Circlip

504152572

$6.26

76

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$16.89

77

Clinch Stud, M8 X 25

250300028

$4.28

78

Hex. Flange Elastic Nut M8

233281414

$1.14

79

Drive Axle Ass'y

504154054

$516.89

79a

Not Available As Spare Part - Friction Washer

Unavailable

79b

Not Available As Spare Part - Friction Washer

Unavailable

80

Track Ass'y 15X137X1.0

504152755

$879.99

80a

Track Guide | Track Width 16''

415129528

$3.12

80b

Cleat

504152651

$8.22

81

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
