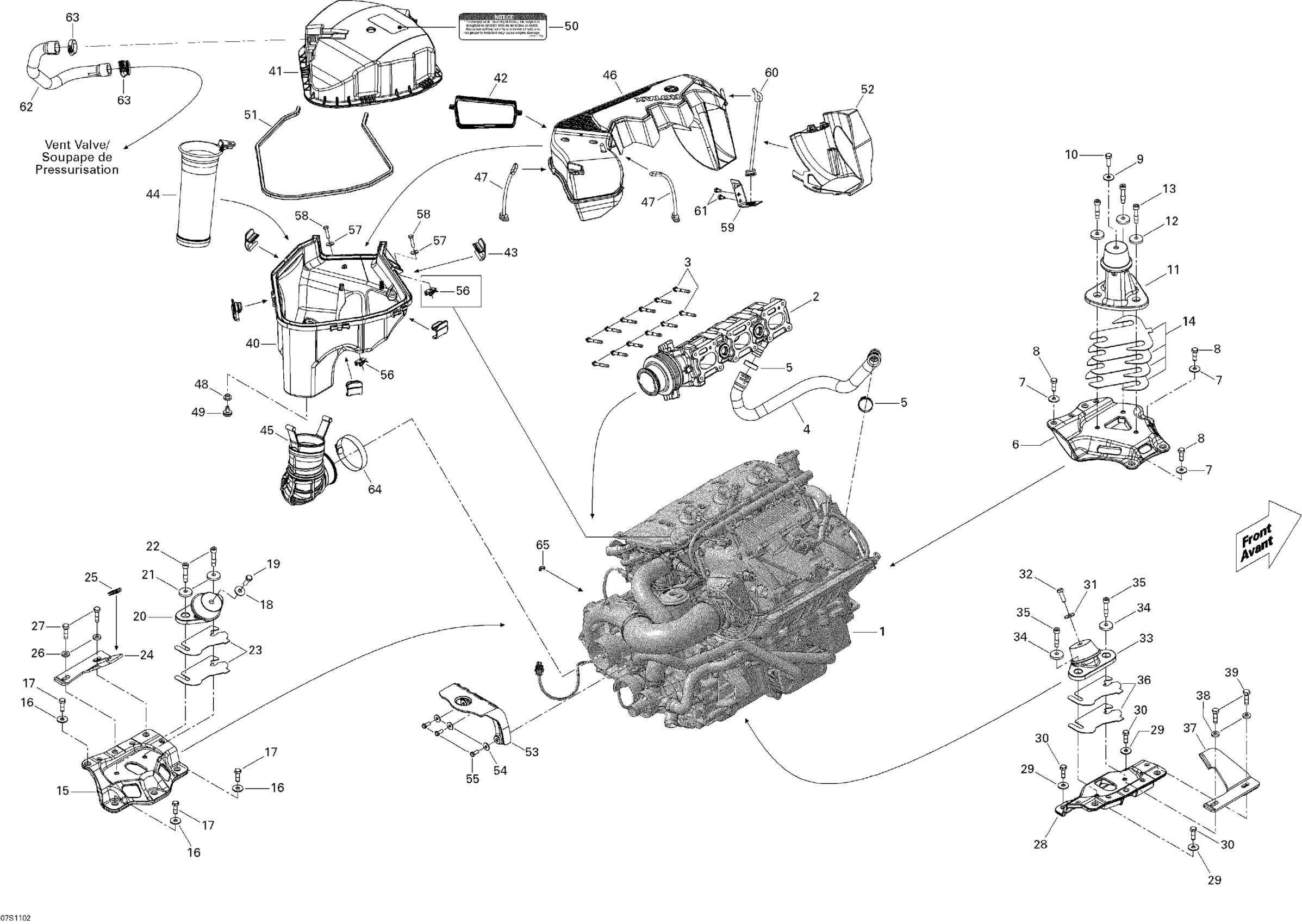

Sea-doo GTX iS 215, 2011 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

1

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

2

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$651.92

3

Torx Flange Screw M6 X 45

420641198

$3.38

4

FORMED HOSE - Call your local BRP dealership

420822174

Unavailable

5

Crimp Clamp

293650217

$7.90

6

SPACER - Call your local BRP dealership

270000767

Unavailable

7

Flat Washer 8 mm, Stainless

234082600

$1.98

8

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

9

Flat Washer 8 mm, Stainless

234082600

$1.98

10

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

11

Rubber Mount

270000886

$98.77

12

Cone Washer

250200018

$4.64

13

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

14

Shim 1.3 mm

270000770

$12.86

15

SPACER - Call your local BRP dealership

270000763

Unavailable

16

Flat Washer 8 mm, Stainless

234082600

$1.98

17

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

18

Flat Washer 8 mm, Stainless

234082600

$1.98

19

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

20

Engine Support Ass'y

270001081

$84.47

21

Cone Washer

250200018

$4.64

22

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

23

Shim 1.3 mm

270000762

$9.04

24

LH STOPPER - Call your local BRP dealership

270000796

Unavailable

25

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

26

Flat Washer M8.5 x 18

293050001

$1.29

27

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.64

28

Spacer

270000766

$73.10

29

Flat Washer 8 mm, Stainless

234082600

$1.98

30

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

31

Flat Washer 8 mm, Stainless

234082600

$1.98

32

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

33

Engine Support Ass'y

270001081

$84.47

34

Cone Washer

250200018

$4.64

35

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

36

Shim 1.3 mm

270000762

$9.04

37

RH Stopper

270000799

Unavailable

38

Flat Washer M8.5 x 18

293050001

$1.29

39

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.64

40

AIR SILENCER LOW - Call your local BRP dealership

273000250

Unavailable

41

Air Silencer Upper

273000249

$55.19

42

SEAL - Call your local BRP dealership

293250190

$13.70

43

Clip

269501718

$12.97

44

Intake Hose

273000359

$44.00

45

CONNECTOR HOSE - Call your local BRP dealership

273000251

Unavailable

46

INTAKE TUBE - Call your local BRP dealership

273000253

Unavailable

47

Strap

269501299

$14.92

48

GROMMET - Call your local BRP dealership

293720064

Unavailable

49

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

50

Air Silencer Notice Decal

219903177

Unavailable

51

NEOPRENE SEAL - Call your local BRP dealership

293200123

Unavailable

52

DEFLECTOR - Call your local BRP dealership

273000271

Unavailable

53

AIR BOX SUPPORT - Call your local BRP dealership

270000735

Unavailable

54

Flat Washer M6, Stainless

234062600

$0.64

55

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

56

Panel Nut M6 X 1

420942108

$11.48

57

Flat Washer M6, Stainless

234062600

$0.64

58

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.22

59

AIR BOX BRACKET - Call your local BRP dealership

273000260

Unavailable

60

Strap

273000261

$12.58

61

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

62

Formed Hose

270000807

$51.46

63

Tridon Gear Clamp

293650051

$3.61

64

Tridon Clamp

293650179

$8.81

65

Tie Wrap 142 mm

293750002

$0.88
