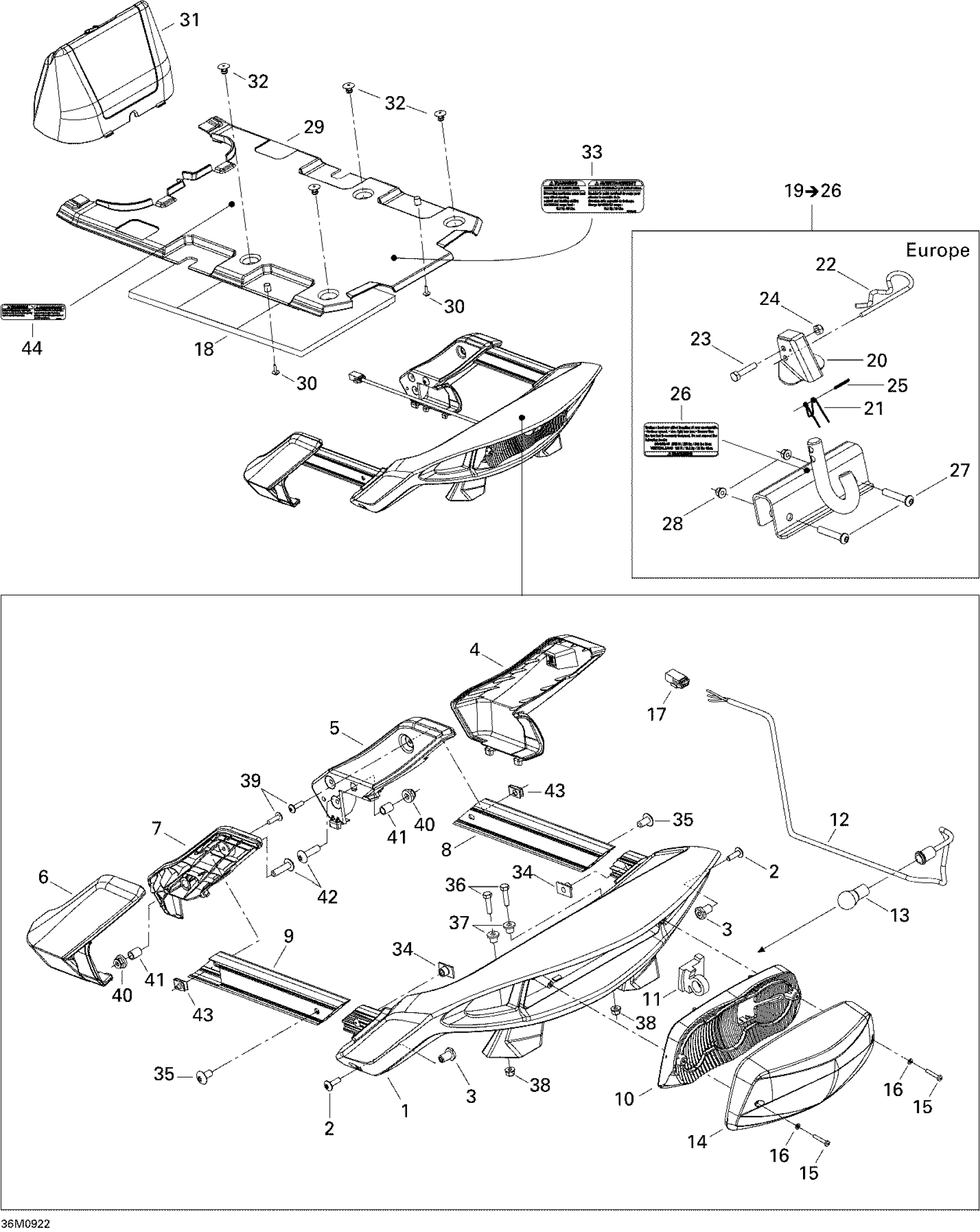

Ski-Doo GTX Fan, 2009 09- Luggage Rack Diagram

#

Description
Price

1

RACK - Call your local BRP dealership

511000317

Unavailable

2

Torx Screw M6 X 20

250000722

$1.68

3

INSERT - Call your local BRP dealership

511000398

Unavailable

4

RH OUTSIDE ARM - Call your local BRP dealership

511000322

Unavailable

5

RH INSIDE ARM - Call your local BRP dealership

511000326

Unavailable

6

LH OUTSIDE ARM - Call your local BRP dealership

511000323

Unavailable

7

LH INSIDE ARM - Call your local BRP dealership

511000327

Unavailable

8

RH SIDE BAR - Call your local BRP dealership

511000321

Unavailable

9

LH SIDE BAR - Call your local BRP dealership

511000345

Unavailable

10

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

11

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

12

BULB SOCKET - Call your local BRP dealership | Includes 9 to 10

511000466

Unavailable

13

Bulb

520000758

$9.10

14

Lens

511000315

$36.99

15

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

Male Housing, 3 Circuits

515175494

$16.18

18

RADIATOR COVER SHIM - Call your local BRP dealership

511000364

Unavailable

19

HITCH ASS'Y - Call your local BRP dealership | Includes 17 to 23, Europe

511000509

Unavailable

20

PAWL - Call your local BRP dealership | Europe

511000514

Unavailable

21

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

22

Hair Pin

114045200

$11.11

23

Hex. Flange Screw M6 X 35

207063544

$1.37

24

Elastic Stop Nut M6

232561414

$0.55

25

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

26

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

27

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

RADIATOR COVER - Call your local BRP dealership

511000440

Unavailable

30

Screw M4 X 16

250000725

$3.49

31

Tank Cover

511000357

Unavailable

32

Pop Rivet 3/16"

293150103

$0.55

33

WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership

516002960

Unavailable

34

THREAD INSERT - Call your local BRP dealership

511000341

Unavailable

35

Torx Truss Screw M8 X 16

250000746

$3.38

36

Hex. Screw M6 X 25

207162544

$1.15

37

FLANGED BUSHING - Call your local BRP dealership

511000340

Unavailable

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

39

Hex Torx Truss M8 X30

250000745

$3.17

40

Hex. Flange Elastic Nut M8

233281414

$1.47

41

BUSHING - Call your local BRP dealership

511000325

Unavailable

42

Torx Screw M5 X 20

250000724

$1.69

43

Panel Nut M5 X 0.8

250000958

$4.23

44

CLENCHING DECAL - Call your local BRP dealership

516003035

Unavailable
