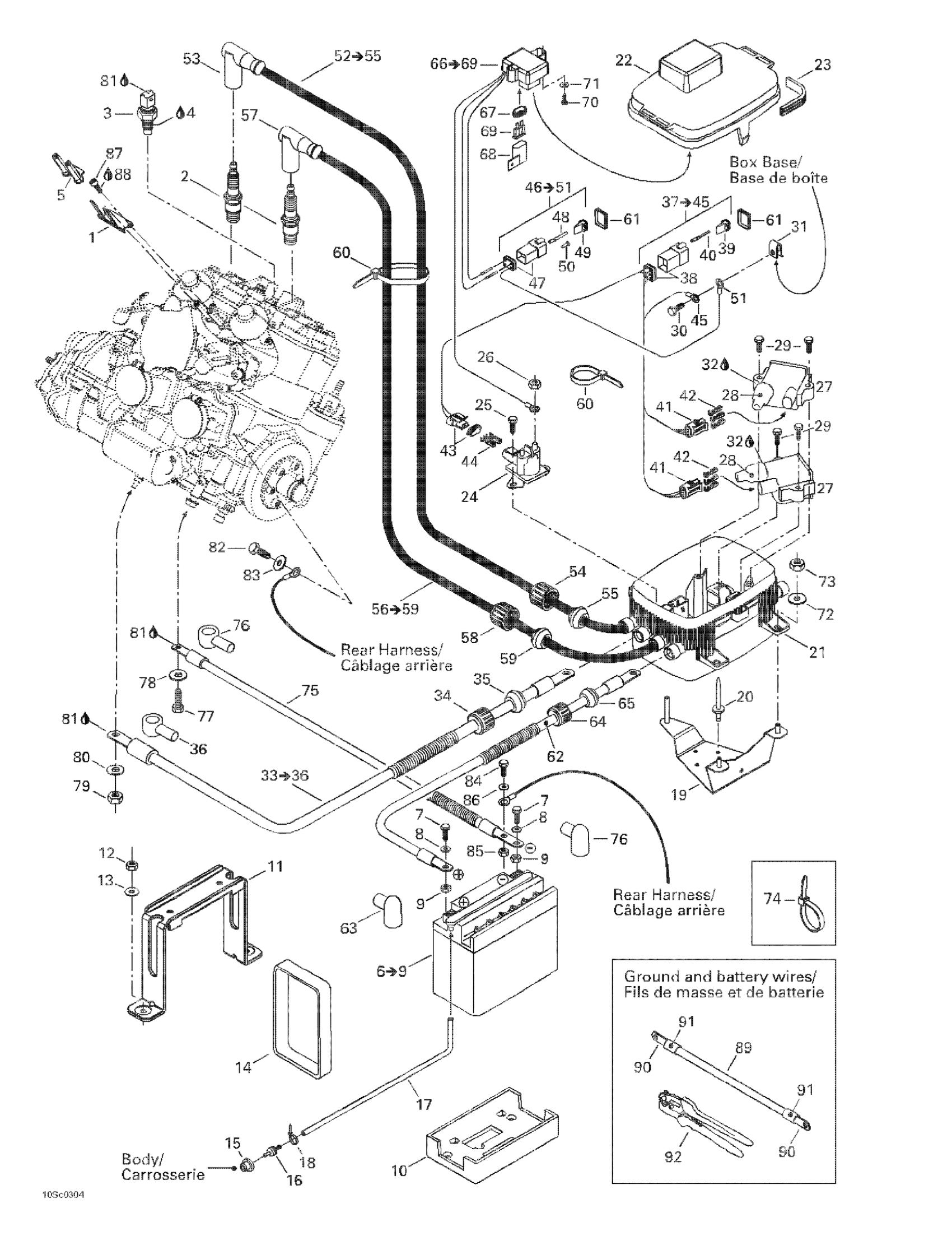

Sea-doo GTX DI, 6118/6119, 2003 Rear Electrical Box Diagram

#

Description
Price

1

GROUND PLATE - Call your local BRP dealership

278001662

Unavailable

2

Spark Plug NGK Zfr4f-11

278001650

$4.63

3

Temperature Sensor

278002895

$36.54

4

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

5

INSULATOR - Call your local BRP dealership

278001512

Unavailable

6

Battery 19A | Includes 5 to 8

278001756

$144.75

7

Hex. Screw M6 X 16

207161644

$0.70

8

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

9

Hex. Nut M6

232061414

$0.51

10

Lower Battery Pad

278001746

Unavailable

11

BATTERY SUPPORT - Call your local BRP dealership

278001677

Unavailable

12

Hex. Elastic Nut M8

232581600

$1.43

13

Flat Washer 8 mm, Stainless

234082600

$2.27

14

Battery Strap 297mm

278001765

Unavailable

15

Grommet

293720029

$1.30

16

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

17

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

18

Tie Wrap 94 mm | 4X4

293750001

$0.96

19

Electric Box Support

278001487

Unavailable

20

Avdel Rivet 3/16"

293150037

$0.54

21

Electric Box Base

278001760

Unavailable

22

Box Cover

278001785

Unavailable

23

GASKET - Call your local BRP dealership

278001173

Unavailable

24

Starter Relay

278003012

$40.27

25

Hex. Flange Screw M6 X 10

210261040

$1.43

26

Hex. Elastic Stop Nut M6

232561600

$1.06

27

IGNITION COIL - Call your local BRP dealership

278001451

Unavailable

28

PROTECTOR CAP - Call your local BRP dealership

278001470

Unavailable

29

SCREW-TAPP.HEX.ISO.1479F - Call your local BRP dealership

209463840

Unavailable

30

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.04

31

U Type Nut M6

250100029

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

33

STARTER CABLE (RED) - Call your local BRP dealership | Includes 33 - 36.

278001457

Unavailable

34

Electric Wire Cap

278000100

Unavailable

35

GROMMET - Call your local BRP dealership

278000098

Unavailable

36

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

37

Box Harness | Includes 17 to 25

278001458

Unavailable

38

Male Terminal Housing, 6 Circuits

710001539

$17.88

39

Female Lock, 6 Circuits

278000735

$2.93

40

Male Terminal

278000631

$4.00

41

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

42

FEMALE TERMINAL - Call your local BRP dealership

278001468

Unavailable

43

Male Connector, 2 Circuits

278001113

$14.52

44

Female Terminal

278001114

$2.93

45

Open Barrel Terminal

278001392

$4.00

46

Electric Box Harness | Includes 46 - 51.

278001811

Unavailable

47

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

48

MALE TERMINAL - Call your local BRP dealership

515175261

Unavailable

49

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

50

Sealing Cap

293000052

$2.93

51

Open Barrel Terminal

278001392

$4.00

52

COIL CABLE, 735 MM - Call your local BRP dealership | Includes 31 to 33

278001454

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Electric Wire Cap

278000100

Unavailable

55

Grommet

278000682

Unavailable

56

COIL CABLE, 635MM - Call your local BRP dealership | Includes 34 to 36

278001466

Unavailable

57

Not Available As Spare Part - Friction Washer

Unavailable

58

Electric Wire Cap

278000100

Unavailable

59

Grommet

278000682

Unavailable

60

Tie Wrap 142 mm

293750002

$1.01

61

Gasket

293200055`

Unavailable

62

Battery Positive Cable, Red | Includes 63 to 65

278001728

Unavailable

63

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

64

Electric Wire Cap

278000100

Unavailable

65

GROMMET - Call your local BRP dealership

278000098

Unavailable

66

CUT-OFF RELAY - Call your local BRP dealership | Includes 62 to 65

278001784

Unavailable

67

Cushion

278000805

$3.12

68

Not Available As Spare Part - Friction Washer

Unavailable

69

Fuse, 30 Amperes

410917200

$3.12

70

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

71

Flat Washer M5, Stainless

234051600

$0.73

72

Flat Washer M6, Stainless

234062600

$0.73

73

Hex. Elastic Stop Nut M6

232561600

$1.06

74

Tie Wrap 94 mm | 4X4

293750001

$0.96

Tie Wrap 142 mm

293750002

$1.01

Tie-Rap 180 mm

414115200

$0.10

Tie Wrap 368 mm

293750008

$0.97

75

Ground Cable, Black

278001462

Unavailable

76

Wire Cap (Black)

278001491

Unavailable

77

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.78

78

Flat Washer 10 mm, Stainless

234001600

$1.04

79

Hex. Elastic Stop Nut M6

232561600

$1.06

80

Stainless Flat Washer M6

234061600

$0.28

81

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

82

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

83

Stainless Flat Washer M6

234061600

$0.28

84

Hex. Cap Screw M6 X 12

207161260

$1.21

85

Hex. Elastic Stop Nut M6

232561600

$1.06

86

Stainless Flat Washer M6

234061600

$0.28

87

Socket Head Screw M6 X 25

205062560

$1.63

88

Loctite 243, 10 ml

293800060

$21.49

89

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

90

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

91

Not Available As Spare Part - Friction Washer

Unavailable

92

Not Available As Spare Part - Friction Washer

Unavailable
