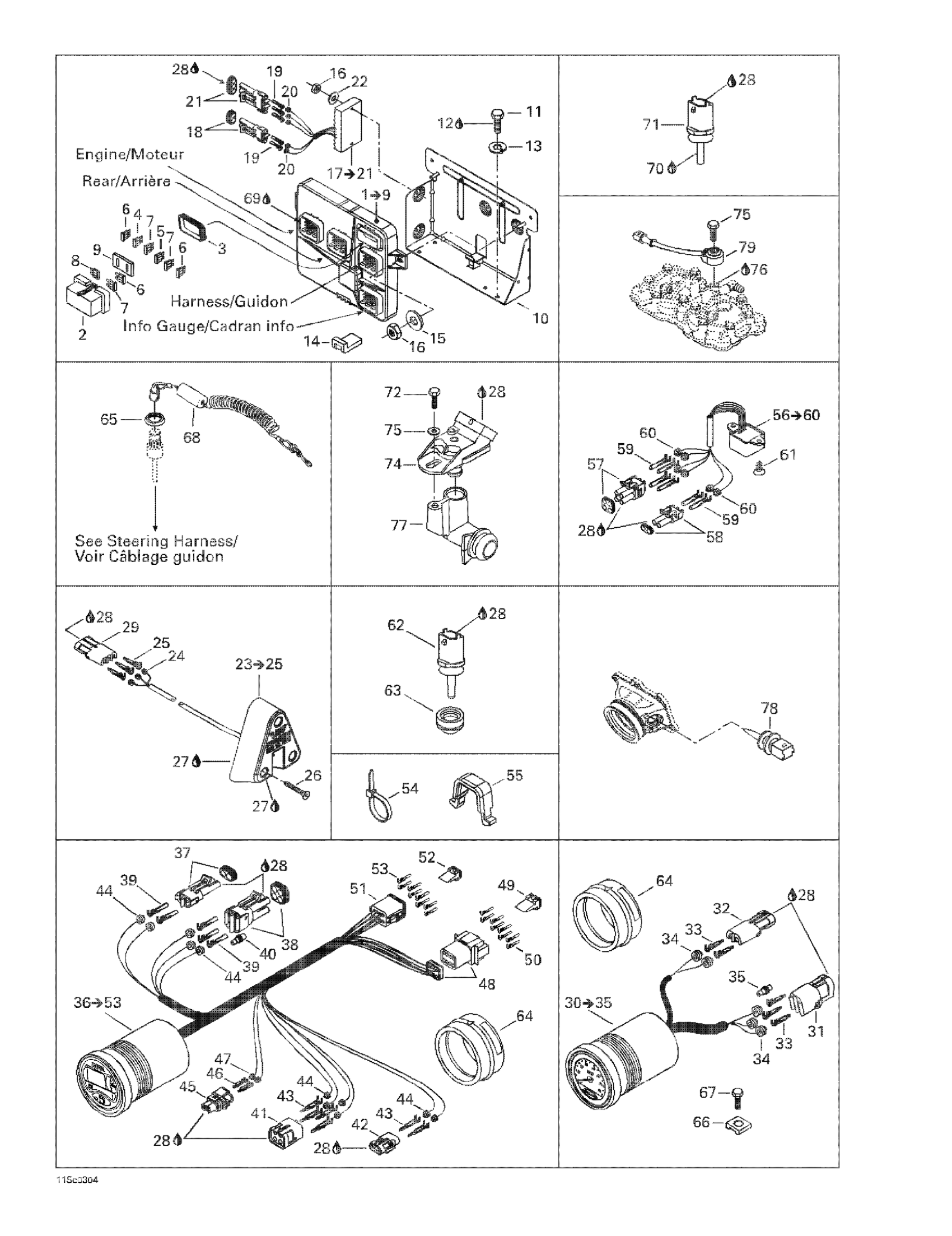

Sea-doo GTX DI, 6118/6119, 2003 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

Electronic Module Ass'y | Includes 1 - 9.

278001813

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Cover Seal

278001070

Unavailable

4

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

5

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

6

Fuse, 15 Amperes

278000343

$2.72

7

Fuse, 25 Amperes

278001443

$3.26

8

Fuse, 30 Amperes

410917200

$3.22

9

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

10

Module Support

278001447

Unavailable

11

Hex. Screw 10-14 X 7/8”

211000023

$2.91

12

Loctite 271, 10 ml

293800005

$20.77

13

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

14

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

15

Flat Washer M6, Stainless

234062600

$0.64

16

Hex. Elastic Stop Nut M6

232561600

$0.92

17

Rectifier Ass’Y | Includes 30 - 34.

278001554

Unavailable

18

Male Connector, 2 Circuits

278000220

$11.02

19

Female Terminal

409007300

$0.36

20

Wire Seal

278000218

$3.48

21

Male Housing, 3 Circuits

278000273

$7.59

22

Stainless Flat Washer M6

234061600

$0.25

23

Speed Sensor

278001993

$143.62

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

27

Silicone Sealant 51388, 300 ml

296000309

$35.72

28

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

29

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

30

Speedometer | Includes 30 - 35.

278001865

Unavailable

31

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

32

Female Housing, 2 Circuits

278000217

$7.59

33

Male Terminal | XT Models

278000222

$2.55

34

Wire Seal

278001065

$6.03

35

Wire Seal

278000216

$2.55

36

LCD Info Gauge | Includes 36 - 53.

278001708

Unavailable

37

Male Connector, 2 Circuits

278000220

$11.02

38

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

39

Female Terminal

278000223

$2.55

40

Wire Seal

278000216

$2.55

41

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

42

Female Housing, 2 Circuits

278000217

$7.59

43

Male Terminal | XT Models

278000222

$2.55

44

Wire Seal

278001065

$6.03

45

Male Housing, 2 Circuits

278001005

$15.57

46

Female Terminal

278000998

$3.48

47

Wire Seal

278000999

$2.55

48

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001742

Unavailable

49

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

50

Male Terminal | GTI RFI LE

278001664

Unavailable

51

MALE HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001743

Unavailable

52

SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership

278001744

Unavailable

53

Female Terminal

278001665

$3.73

54

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 142 mm

293750002

$0.88

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85

55

U Bracket

277001069

Unavailable

56

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

57

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

58

Male Connector, 2 Circuits

278000220

$11.02

59

Female Terminal

278000223

$2.55

60

Wire Seal

278000218

$3.48

61

Black Dart

293730010

$0.81

62

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

63

INSULATOR - Call your local BRP dealership

278001054

Unavailable

64

Gauge Support

293720047

Unavailable

65

Safety Nut (DESS Switch)

278002963

$2.72

66

Tie Rap Mount

293750026

$2.41

67

Hex. Flange Screw K40 X 13

241141360

$0.56

68

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87

69

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

70

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

71

Temperature Sensor

278002895

$31.82

72

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

73

Flat Washer | XT

211200035

$0.46

74

Pressure Sensor

270600040

$157.92

75

Hex. Screw M8 X 30

207183060

$1.30

76

Loctite 243, 10 ml

293800060

$20.77

77

VALVE ADAPTOR - Call your local BRP dealership

270600019

Unavailable

78

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

79

Noise Sensor

270000484

$65.62
