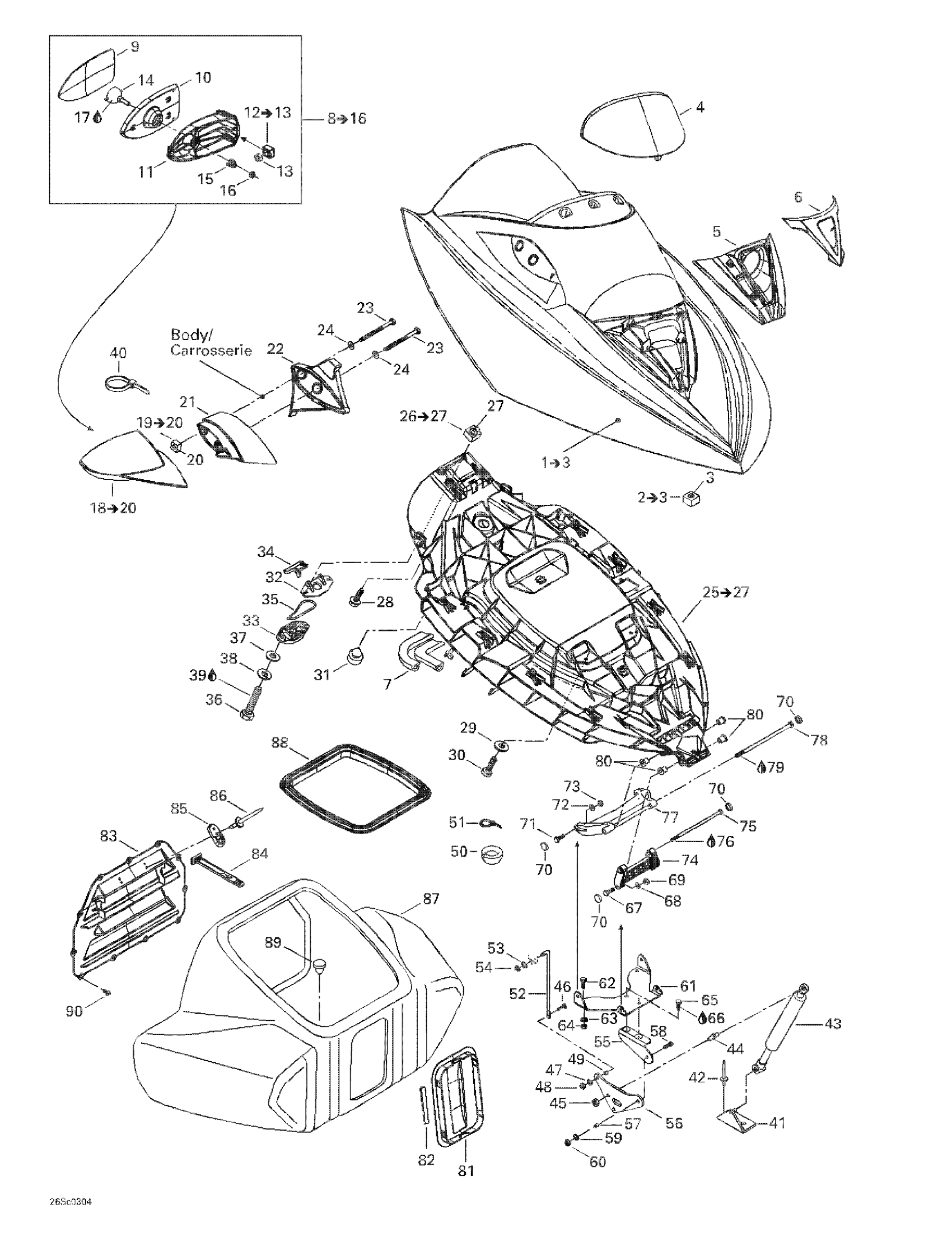

Sea-doo GTX DI, 6118/6119, 2003 Front Storage Compartment Diagram

#

Description
Price

1

Upper Storage Cover | Includes 1 - 3. (Red)

269501047

Unavailable

2

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

3

Hex. Nut M6

232061600

$1.15

4

Deflector, Amber | Viper Red, B-267

269500943

Unavailable

5

Lower Grille

269500994

Unavailable

6

Upper Grille

269500942

Unavailable

7

Was 293200017 Neoprene Seal

219704365

$149.99

8

RH Mirror Ass’Y | Includes Items 19 to 28 / LE

269500685

Unavailable

LH Mirror Ass'y | Includes Items 19 to 28 / LE

269500688

Unavailable

9

RH Mirror

269500687

Unavailable

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

10

Frame Mirror

269500697

Unavailable

11

Housing Support | WAKE

269500807

Unavailable

12

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

13

Hex. Elastic Nut M8

232581600

$1.48

14

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

15

Mirror Spring

269500453

$10.49

16

Hex. Elastic Stop Nut M6

232561600

$1.15

17

Synthetic Grease, 400 G

293550010

Unavailable

18

RH Mirror Shell | Includes 18 - 20. AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.

269501042

Unavailable

19

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

20

Hex. Elastic Nut M8

232581600

$1.48

21

RH Mirror Support | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.

269501044

Unavailable

LH Mirror Support | AUTOMNE RED (B-549)

269501045

Unavailable

22

RH Spacer

269500950

Unavailable

LH Spacer

269500951

Unavailable

23

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

24

Flat Washer 8 mm, Stainless

234082600

$2.43

25

Lower Storage Cover Ass'y | Includes 25 to 27

269500952

Unavailable

26

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

27

Hex. Nut M6

232061600

$1.15

28

Hex. Flange Screw K40 X 13

241141360

$0.67

29

Flat Washer M6, Stainless

234062600

$0.77

30

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

31

Rubber Bumper

293830005

$8.09

32

Latch Ass'y

269700109

$24.99

33

Latch Ass'y

269700109

$24.99

34

Latch Ass'y

269700109

$24.99

35

Latch Spring

269700017

$9.19

36

Hex. Screw M6 X 30

207063060

$1.89

37

Stainless Flat Washer M6

234061600

$0.33

38

Lock Washer Helical M6

234161601

$1.15

39

Loctite 243, 10 ml

293800060

$21.49

40

Tie Wrap 368 mm

293750008

$1.04

41

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

42

Avdel Rivet 3/16"

293150037

$0.56

43

Gas Shock Ass'y

269501625

$77.99

44

Ball Head Stud

250300016

$14.81

45

Hex. Elastic Nut M8

232581600

$1.48

46

Hex. Screw M4 X 16 | Europe

207141660

$1.47

47

Flat Washer 4 mm, Stainless

234041600

$1.15

48

Elastic Stop Nut M4

232541600

$1.15

49

SPACER - Call your local BRP dealership

269501130

Unavailable

50

Cable Grommet

293720063

Unavailable

51

Tie-Rap 180 mm

414115200

$0.11

52

ROD - Call your local BRP dealership

269500842

Unavailable

53

Stainless Flat Washer M6

234061600

$0.33

54

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

55

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

56

LEVER - Call your local BRP dealership

269501576

Unavailable

57

SPACER - Call your local BRP dealership

269501172

Unavailable

58

Hex. Forming Screw M6 X 20

207162060

$1.29

59

Flat Washer M6, Stainless

234062600

$0.77

60

Hex. Elastic Stop Nut M6

232561600

$1.15

61

Pivot Support

269500934

Unavailable

62

Hex. Forming Screw M6 X 20

207162060

$1.29

63

Flat Washer M6, Stainless

234062600

$0.77

64

Hex. Elastic Stop Nut M6

232561600

$1.15

65

Hex. Forming Screw M6 X 20

207162060

$1.29

66

Loctite 243, 10 ml

293800060

$21.49

67

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

68

Stainless Flat Washer M6

234061600

$0.33

69

Hex. Elastic Stop Nut M6

232561600

$1.15

70

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

71

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

72

Stainless Flat Washer M6

234061600

$0.33

73

Hex. Elastic Stop Nut M6

232561600

$1.15

74

FRONT ARM - Call your local BRP dealership

269501482

$19.99

75

Hex. Screw M6 x 100

230006060

Unavailable

76

Loctite 243, 10 ml

293800060

$21.49

77

REAR ARM - Call your local BRP dealership

269501481

Unavailable

78

Hex. Screw M6 X 150

230065060

$10.16

79

Loctite 271, 10 ml

293800005

$26.99

80

Sleeve

269500706

$4.65

81

Front Door

291001744

Unavailable

82

Gasket (Meter)

293250078

Unavailable

83

Rear Door

291001743

Unavailable

84

Strap

269502417

$17.69

85

Hook

269500521

$9.09

86

Avdel Rivet

293150027

$2.49

87

Front Tray

269500955

Unavailable

88

Cover Trim

269501234

Unavailable

89

Black Plug

291000279

$7.69

90

Tuflok Plastic Rivet

293150230

$1.47
