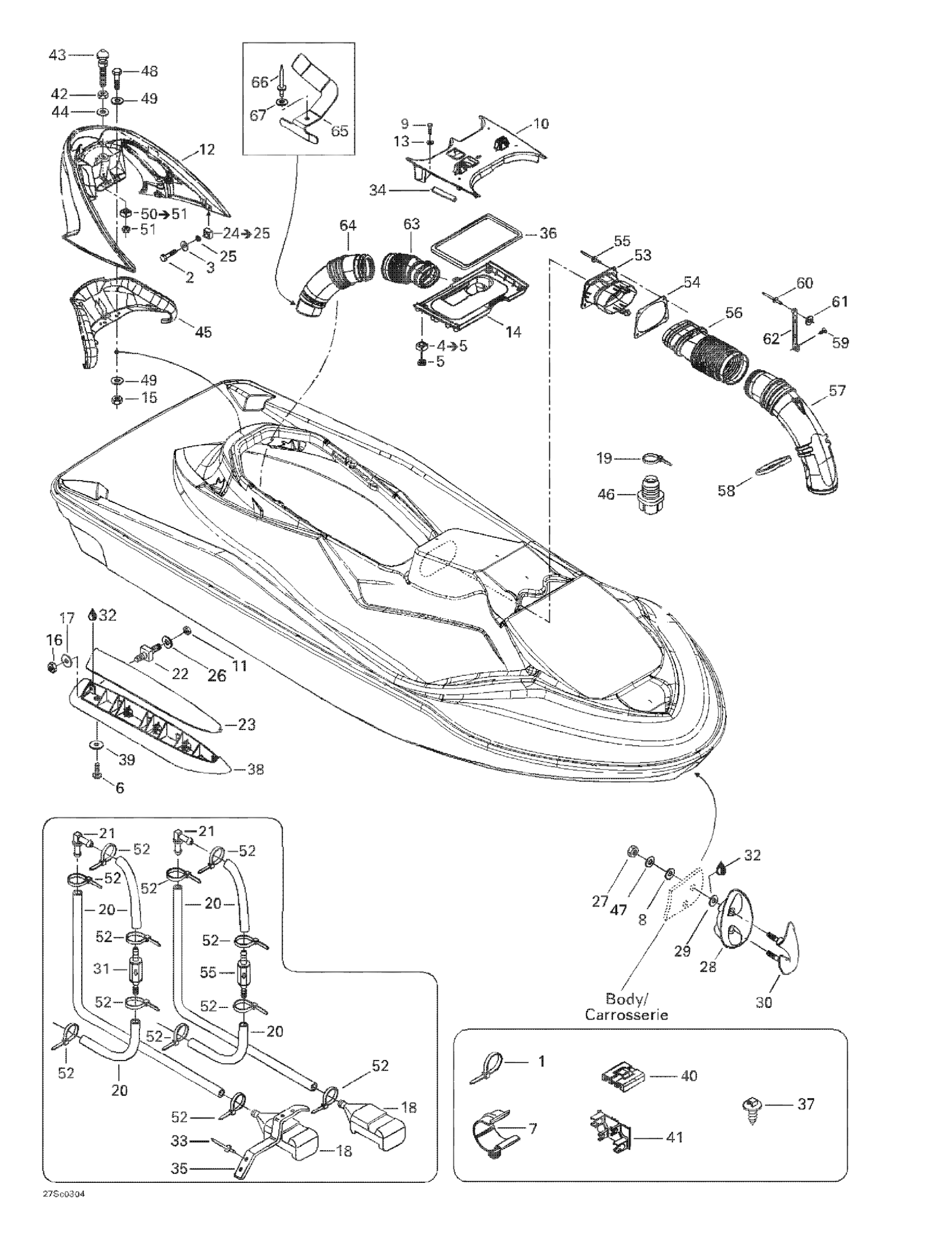

Sea-doo GTX DI, 6118/6119, 2003 Body, Front View Diagram

#

Description
Price

1

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

2

Hex. Screw M6 X 25

207162560

$1.47

3

Flat Washer M6, Stainless

234062600

$0.77

4

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

5

Elastic Stop Nut M6, Brass

232561200

$4.23

6

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

7

Cable Retainer

275500527

$2.68

8

Rubber Washer

293830037

$2.68

9

Hex. Screw M6 X 75

207167560

Unavailable

10

Upper Bridge, Black

291001602

Unavailable

11

Hex. Nut M6

232061600

$1.15

12

GRAB HANDLE, BLACK - Call your local BRP dealership

269000722

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

Lower Bridge, Black

291001599

Unavailable

15

Hex. Elastic Nut M8

232581600

$1.48

16

Hex. Nut M6

232061600

$1.15

17

Flat Washer M6, Stainless

234062600

$0.77

18

Bailer Screen

292000688

Unavailable

19

Tie-Rap 180 mm

414115200

$0.11

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

22

THREADED INSERT - Call your local BRP dealership

293450227

Unavailable

23

RH SPONSON COVER - Call your local BRP dealership

292000815

Unavailable

LH SPONSON COVER - Call your local BRP dealership

292000817

Unavailable

24

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

25

Hex. Elastic Stop Nut M6

232561600

$1.15

26

Flat Washer M6, Stainless

234062600

$0.77

27

Hex. Elastic Nut M8

232581600

$1.48

28

Black Shell

292001837

$20.99

29

Stainless, Flat Washer 8 mm

234081600

$0.55

30

Eye-Bow (Black) This part replaces 292000708.

292000452

$42.99

31

Check Valve

276000093

Unavailable

32

Silicone Sealant 51388, 300 ml

296000309

$36.99

33

Avdel Rivet 3/16"

293150037

$0.56

34

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

35

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

36

GASKET - Call your local BRP dealership

293200090

Unavailable

37

Mount Dart

293730040

$1.04

38

RH SPONSON - Call your local BRP dealership

292000818

Unavailable

LH SPONSON - Call your local BRP dealership

292000816

Unavailable

39

Flat Washer M5, Stainless

234051600

$0.77

40

Tie-Rap Mount

293750025

$1.25

41

Clamp Tie

291001399

Unavailable

42

Hex. Jam Nut M10

232100600

$2.22

43

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

44

Flat Washer 10 mm, Stainless

234002600

$2.22

45

HANDLE COVER, BLACK - Call your local BRP dealership

269000749

Unavailable

46

GROMMET - Call your local BRP dealership

293720042

Unavailable

47

Flat Washer 8 mm, Stainless

250200175

$3.06

48

Hex. Screw M8 X 45

207084560

$3.38

49

Stainless, Flat Washer 8 mm

234081600

$0.55

50

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

51

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

52

Tie Wrap 94 mm | 4X4

293750001

$1.03

53

FRONT AIR COLLECTOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

291002547

Unavailable

54

FRONT AIR COLLECTOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

291002547

Unavailable

55

Avdel Rivet 3/16"

293150037

$0.56

56

FLEXIBLE HOSE - Call your local BRP dealership

291001746

Unavailable

57

Vent Hose

291001689

Unavailable

58

Neoprene Seal (1PAC=3M)

219704364

$27.49

59

Black Dart

293730010

$0.99

60

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

61

Flat Washer M3, Stainless

234032600

$0.55

62

HOSE SUPPORT - Call your local BRP dealership

291001886

Unavailable

63

Flexible Hose

291001748

Unavailable

64

Vent Hose

291001601

Unavailable

65

Hose Support

291001780

Unavailable

66

Pop Rivet 3/16"

293150043

$2.09

61

FLAT WASHER - Call your local BRP dealership

211200033

Unavailable
