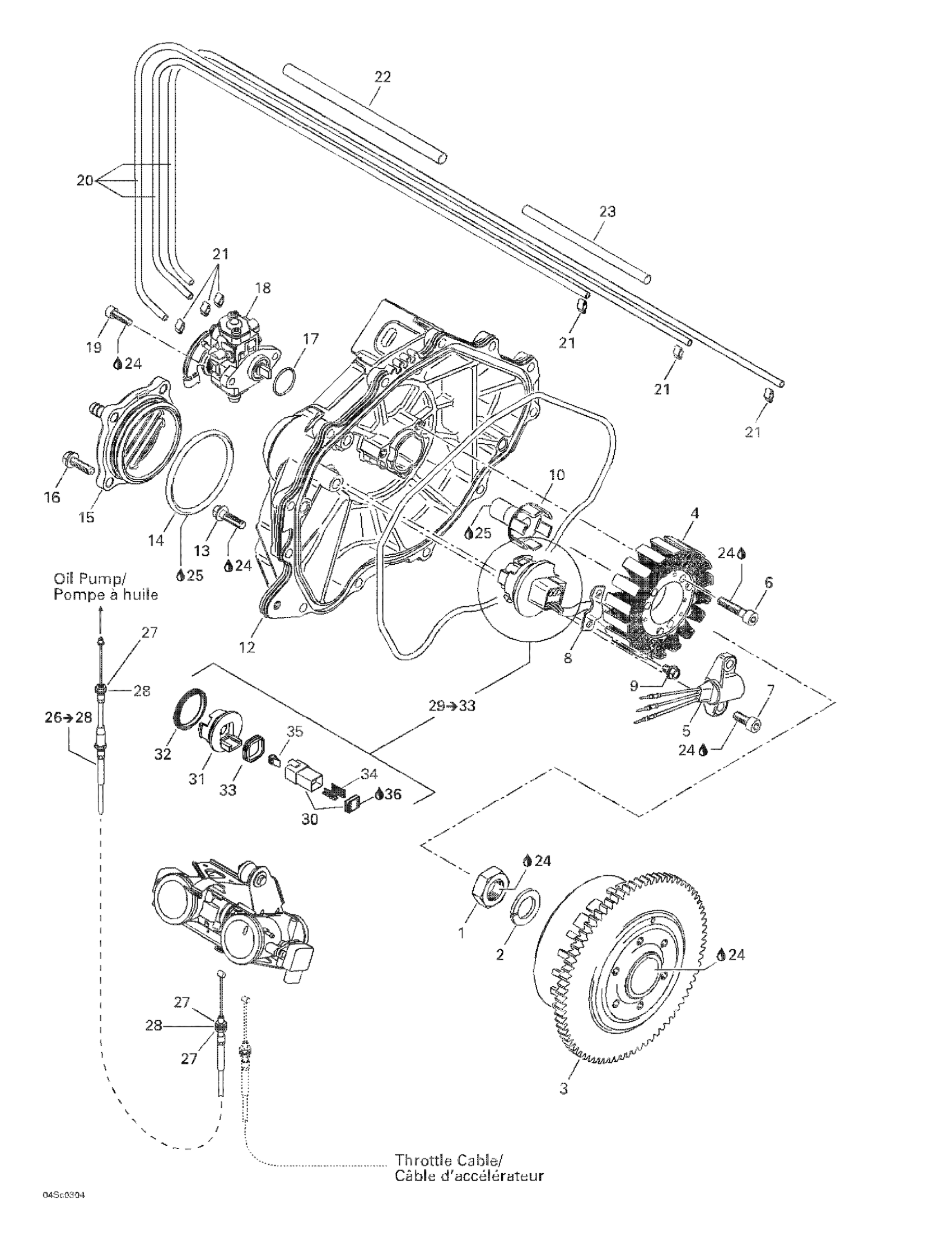

Sea-doo GTX DI, 6118/6119, 2003 Magneto, Oil Pump Diagram

#

Description
Price

1

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

2

LOCK WASHER 18 MM - Call your local BRP dealership

420945757

Unavailable

3

Flywheel Hub

420966822

Unavailable

4

STATOR PLATE ASS'Y - Call your local BRP dealership

420888652

Unavailable

5

Sensor Ass'y

420966760

Unavailable

6

Socket Head Screw M6 X 35 This part replaces 420640051.

420640052

$5.61

7

Hex.Screw M6 X 20

420441311

$5.18

8

RETAINER PLATE - Call your local BRP dealership

420853080

Unavailable

9

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

Unavailable

10

OIL PUMP SHAFT - Call your local BRP dealership

420837395

Unavailable

11

O-RING - Call your local BRP dealership

420931690

Unavailable

12

Ignition Cover

420811421

Unavailable

13

HEX. FLANGED SCREW M6 X 25 - Call your local BRP dealership

420240033

Unavailable

14

O-RING - Call your local BRP dealership

420850390

Unavailable

15

WATERCHANNEL COVER - Call your local BRP dealership

420811225

Unavailable

16

TAPPING SCREW M6 X 20 - Call your local BRP dealership

420941253

Unavailable

17

O-RING - Call your local BRP dealership

293300018

Unavailable

18

OIL PUMP ASS'Y - Call your local BRP dealership

420888541

$309.99

19

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

Unavailable

20

Oil Hose 1500Mm Long

219704404

$17.26

21

Clamp

293650105

$4.44

22

PROTECTION HOSE - Call your local BRP dealership

420960205

Unavailable

23

PROTECTION HOSE - Call your local BRP dealership

420260465

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

Dow Corning 111, 150 g

413707000

$59.99

26

Injection Cable | Includes 28 to 30

270000546

$58.99

27

Hex. Nut M6

232160600

$1.15

28

Stainless Flat Washer M6

234061600

$0.33

29

Adaptor Ass'y | Includes 3 to 7

707000031

Unavailable

30

Male Terminal Housing, 6 Circuits

710001539

$19.99

31

Adaptor

270000138

Unavailable

32

Gasket

293300033

Unavailable

33

Gasket

293200055`

Unavailable

34

Male Terminal

278000631

$4.39

35

Female Lock, 6 Circuits

278000735

$3.19

36

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

37

ENGINE GASKET SET - Call your local BRP dealership

420888134

Unavailable

38

CYLINDER GASKET SET - Call your local BRP dealership

420888139

Unavailable
