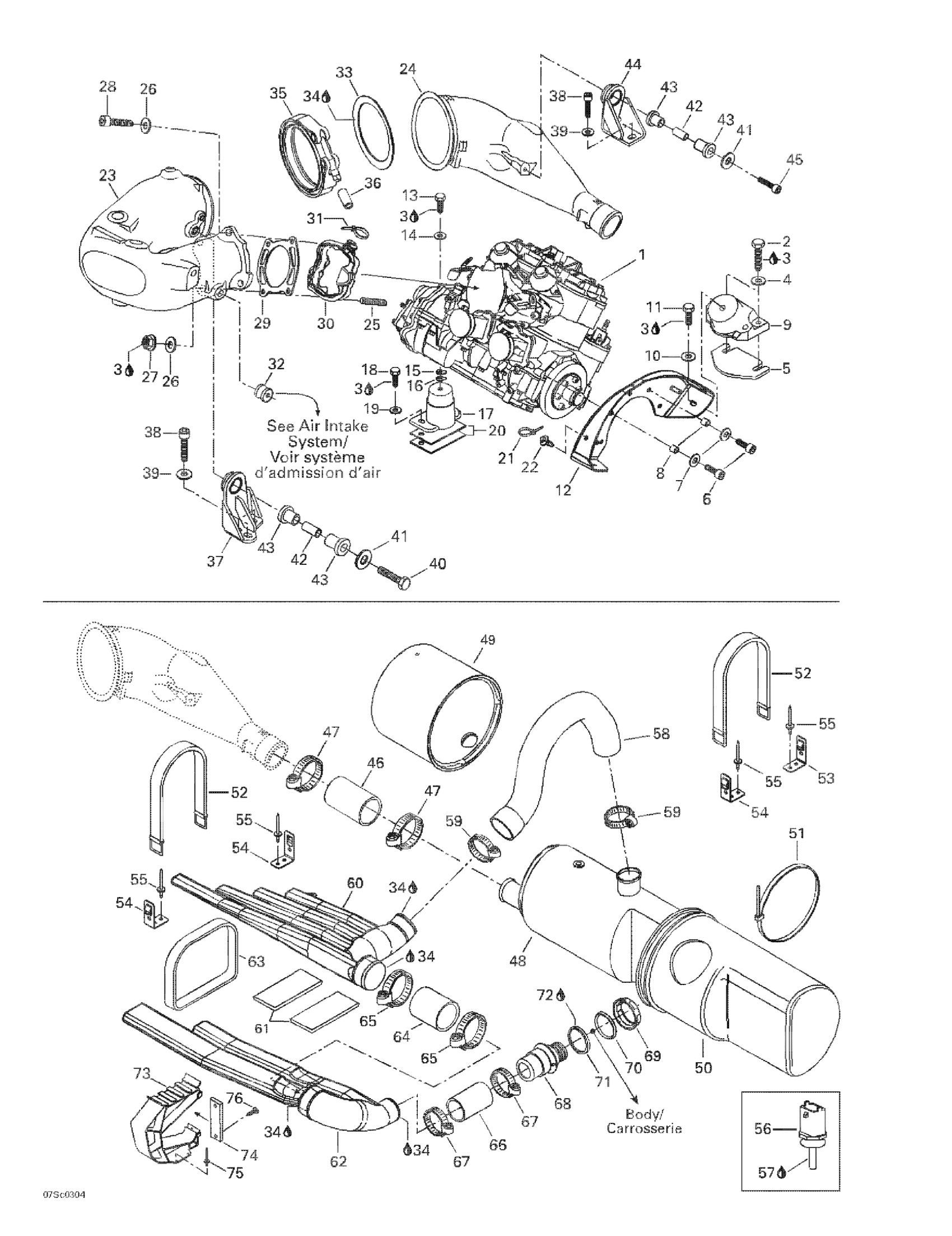

Sea-doo GTX DI, 6118/6119, 2003 Engine Support And Muffler Diagram

#

Description
Price

1

Rotax Engine 947 DI (Silver) | INCLUDES 1 TO 7

270000536

Unavailable

2

Hex. Screw M8 X 40

207184060

$2.22

3

Loctite 243, 10 ml

293800060

$21.49

4

Stainless, Flat Washer 8 mm

234081600

$0.55

5

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

6

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

7

Stainless, Flat Washer 8 mm

234081600

$0.55

8

BUSHING - Call your local BRP dealership

270000453

Unavailable

9

Rubber Mount, Black

270000421

Unavailable

10

Flat Washer 8 mm, Stainless

234082600

$2.43

11

Hex. Screw M8 X 16

207181660

Unavailable

12

Engine Support, Black

270000515

Unavailable

13

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

14

Flat Washer 8 mm, Stainless

234082600

$2.43

15

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

16

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

17

Rubber Mount, Black

270000422

Unavailable

18

Hex. Screw M8 X 40

207184060

$2.22

19

Stainless, Flat Washer 8 mm

234081600

$0.55

20

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

21

Tie-Rap 180 mm

414115200

$0.11

22

Mount Dart

293730040

$1.04

23

Head Pipe | INCLUDES 1 TO 5

274000927

Unavailable

24

EXHAUST CONE, BLACK - Call your local BRP dealership

274000871

Unavailable

25

STUD M10 X 5.1 X 55, SCOTCH GRIP - Call your local BRP dealership

250300008

Unavailable

26

Flat Washer

211200051

$1.68

27

Hex. Flange Nut M10

233101600

$5.29

28

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

29

EXHAUST GASKET - Call your local BRP dealership

420931990

Unavailable

30

PICK UP ENVELOPE - Call your local BRP dealership

274000862

Unavailable

31

Tie Wrap 142 mm

293750002

$1.25

32

Rubber Isolator

707000949

$11.49

33

SEALING RING - Call your local BRP dealership

274000511

Unavailable

34

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

35

EXHAUST CLAMP - Call your local BRP dealership

274000510

Unavailable

36

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

37

Pipe Support

274000890

Unavailable

38

SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

244083060

Unavailable

39

FLAT WASHER M8.4 - Call your local BRP dealership

250200012

Unavailable

40

HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership

245004060

Unavailable

41

Flat Washer 10 mm, Stainless

234002600

$2.22

42

BUSHING - Call your local BRP dealership

274000861

Unavailable

43

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

44

Pipe Support

274000777

Unavailable

45

Hex. Screw M10 X 40, Scotch Grip

244004060

$4.86

46

Exhaust Hose

274000896

Unavailable

47

Tridon Clamp

293650064

$8.29

48

MUFFLER - Call your local BRP dealership

274000826

Unavailable

49

MUFFLER COVER, FRONT - Call your local BRP dealership

274000796

Unavailable

50

Muffler Cover, Rear

274000799

Unavailable

51

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

52

Fuel Tank Strap

293850036

$18.99

53

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

54

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

55

Avdel Rivet 3/16"

293150037

$0.56

56

Temperature Sensor

278002895

$39.99

57

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

58

Exhaust Hose

274000834

Unavailable

59

Tridon Clamp

293650179

$11.49

60

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

61

RUBBER PAD - Call your local BRP dealership

274000752

Unavailable

62

RESONATOR EXTENSION - Call your local BRP dealership

274000701

Unavailable

63

Rubber Strip

293830034

Unavailable

64

EXHAUST HOSE - Call your local BRP dealership

274000726

Unavailable

65

Tridon Clamp

204000079

$9.99

66

Exhaust Hose

274000616

Unavailable

67

Tridon Clamp

293650064

$8.29

68

Exhaust Hose, Outlet

274001391

$29.49

69

Nut 72 mm

274000224

$16.34

70

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

71

GASKET - Call your local BRP dealership

293250041

Unavailable

72

Silicone Sealant 51388, 300 ml

296000309

$36.99

73

Pole L.H

292000819

Unavailable

74

Support Plate

292000820

Unavailable

75

Avdel Rivet 3/16"

293150037

$0.56

76

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable
