Sea-doo GTX DI, 5563/5564/5595/5596, 2002 Electrical Harness Diagram

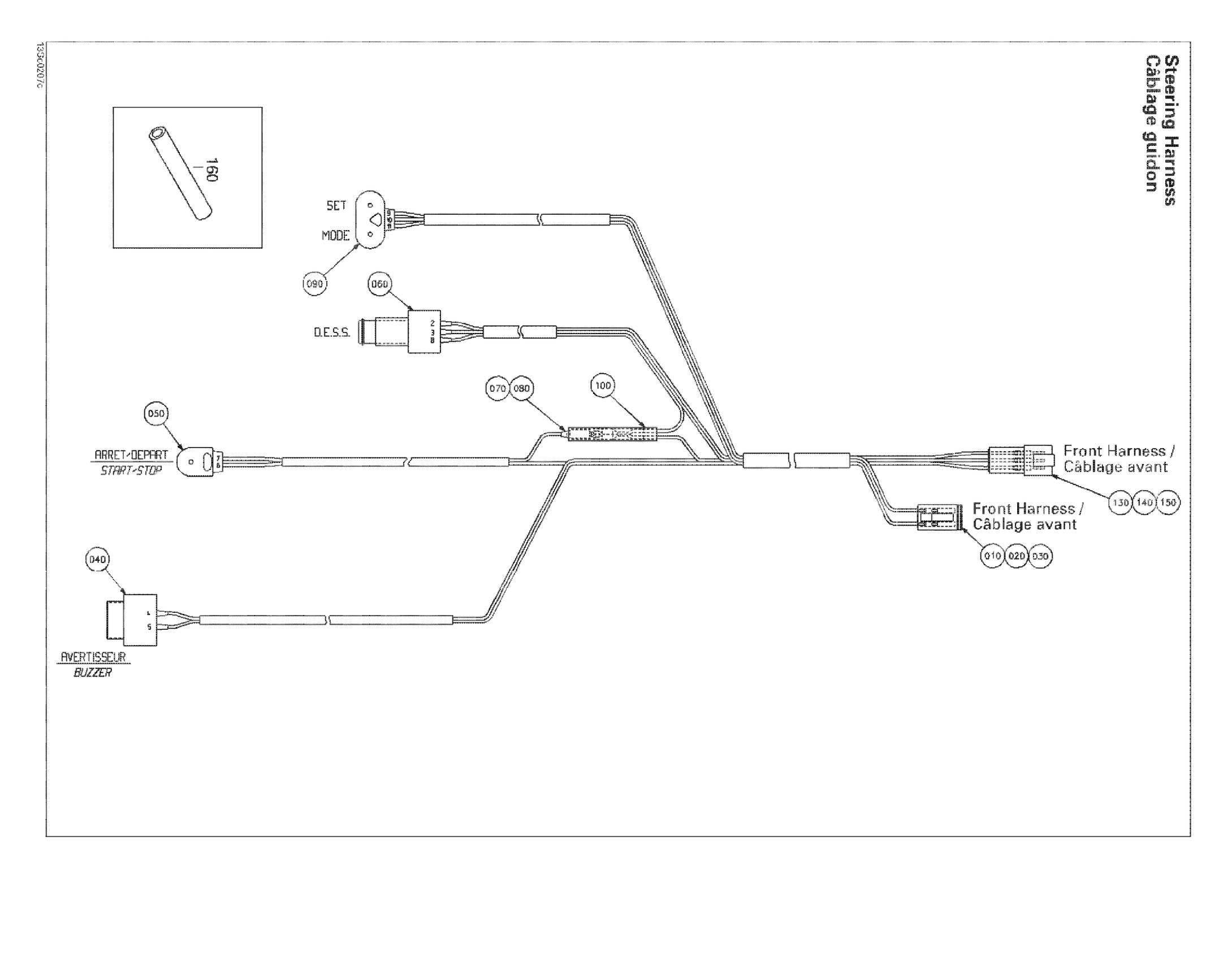

Steering Harness Ass'y | Includes 10 - 160.

278001608

Unavailable

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

Female Terminal

278000632

$1.69

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

BUZZER - Call your local BRP dealership

278001586

Unavailable

Switch Ass'y

278001716

Unavailable

Safety Switch This part replaces 278002325.

278002773

$89.67

Male Terminal

278000230

$3.48

Insulated Sheath

278001008

$3.20

Mode/Set Switch

278001590

Unavailable

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

Male Housing

278002378

$10.91

Male Lock, 3 Circuits

409207600

$3.02

Male Terminal

278000631

$4.12

Housing 9 mm, Meter

293100012

Unavailable

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

$37.66

Pvc Vinyl Tubing

293100011

Unavailable

Heat Shrink Tubing 25 mm

512059668

Unavailable
