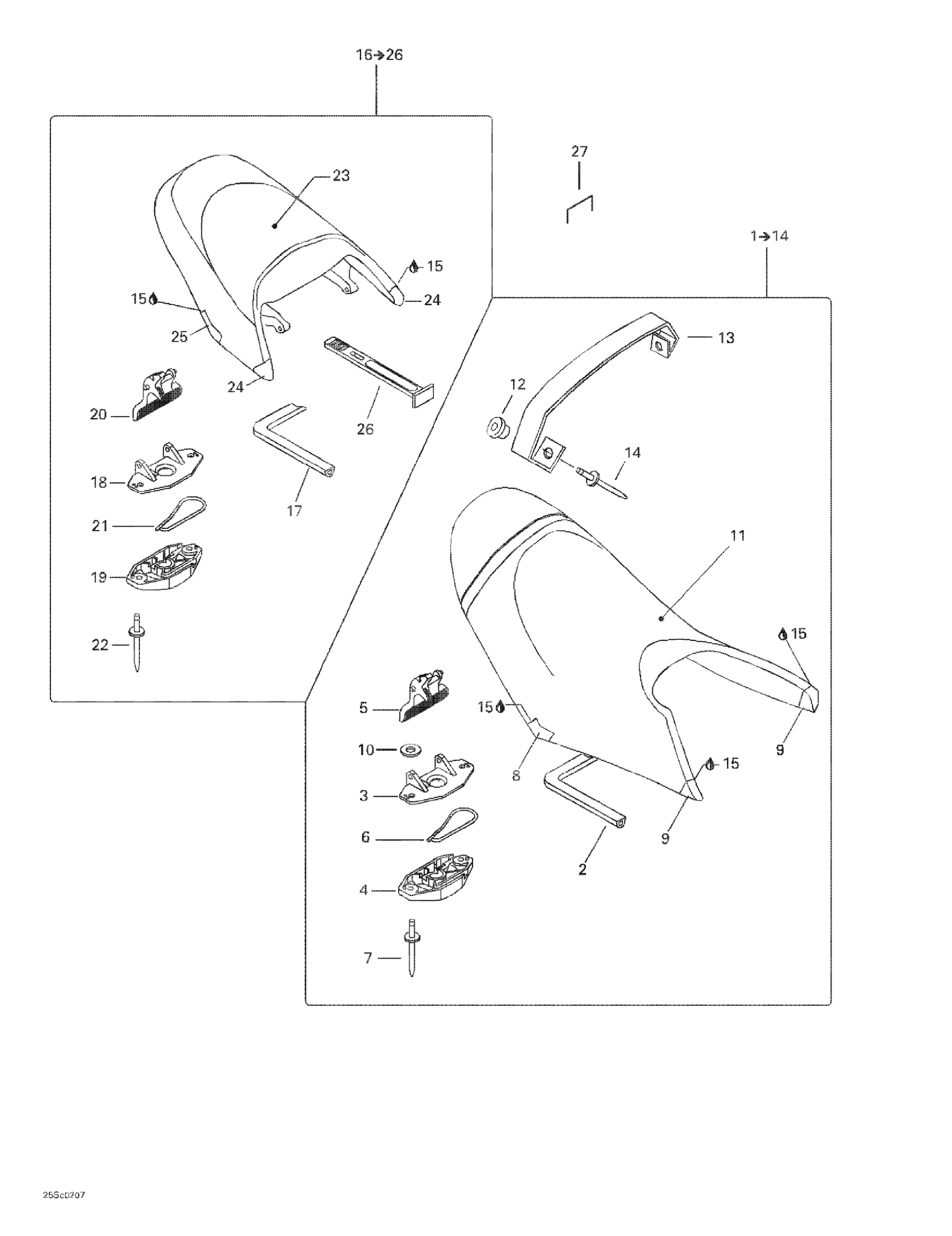

Sea-doo GTX DI, 5563/5564/5595/5596, 2002 Seat Diagram

#

Description
Price

1

Front Seat Ass'y (Jade) | Includes 1 - 14. GTX DI 5563/5564.

269000727

Unavailable

Front Seat Ass'y | GTX 4-TEC 5593/5594.

269000819

Unavailable

2

Was 293200062 Seal

219704366

$76.49

3

Latch Ass'y

269700109

$24.99

4

Latch Ass'y

269700109

$24.99

5

Latch Ass'y

269700109

$24.99

6

Latch Spring

269700017

$9.19

7

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

8

Seat Corner R.H | GTX DI 5563/5564.

269000726

Unavailable

RH Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.

269000822

Unavailable

Seat Corner L.H | GTX DI 5563/5564.

269000729

Unavailable

LH Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.

269000823

Unavailable

9

Seat Corner R.H | GTX DI 5563/5564.

269000785

Unavailable

RH Front Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.

269000824

Unavailable

Seat Corner L.H | GTX DI 5563/5564.

269000786

Unavailable

LH Front Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.

269000825

Unavailable

10

Stainless Flat Washer M6

234061600

$0.33

11

Cover and Foam (Jade) | GTX DI 5563/5564.

269000737

Unavailable

Cover and Foam | GTX 4-TEC 5593/5594.

269000820

Unavailable

12

Grommet

293720067

$12.99

13

Seat Strap (Jade) | GTX DI 5563/5564.

269000739

Unavailable

Seat Strap | BLUE (B-544) GTX 4-TEC 6125/6126.

269000821

Unavailable

14

RIVET_POP 1/4 X ,725 - Call your local BRP dealership

293150078

Unavailable

15

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

16

Rear Seat Ass'y (Green) | Includes 16 - 26. GTX DI 5563/5564.

269000723

Unavailable

Rear Seat Ass'y | GTX 4-TEC 5593/5594.

269000815

Unavailable

17

Was 293200062 Seal

219704366

$76.49

18

Latch Ass'y

269700109

$24.99

19

Latch Ass'y

269700109

$24.99

20

Latch Ass'y

269700109

$24.99

21

Latch Spring

269700017

$9.19

22

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

23

Cover and Foam (Green) | GTX DI 5563/5564.

269000734

Unavailable

Cover and Foam | GTX 4-TEC 5593/5594.

269000816

Unavailable

24

Seat Corner R.H | GTX DI 5563/5564.

269000735

Unavailable

RH Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.

269000817

Unavailable

Seat Corner L.H | GTX DI 5563/5564.

269000736

Unavailable

LH Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.

269000818

Unavailable

25

Seat Corner | GTX DI 5563/5564.

269000832

Unavailable

Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.

269000772

Unavailable

26

Strap

269502417

$17.69

27

Staple

293730005

Unavailable
