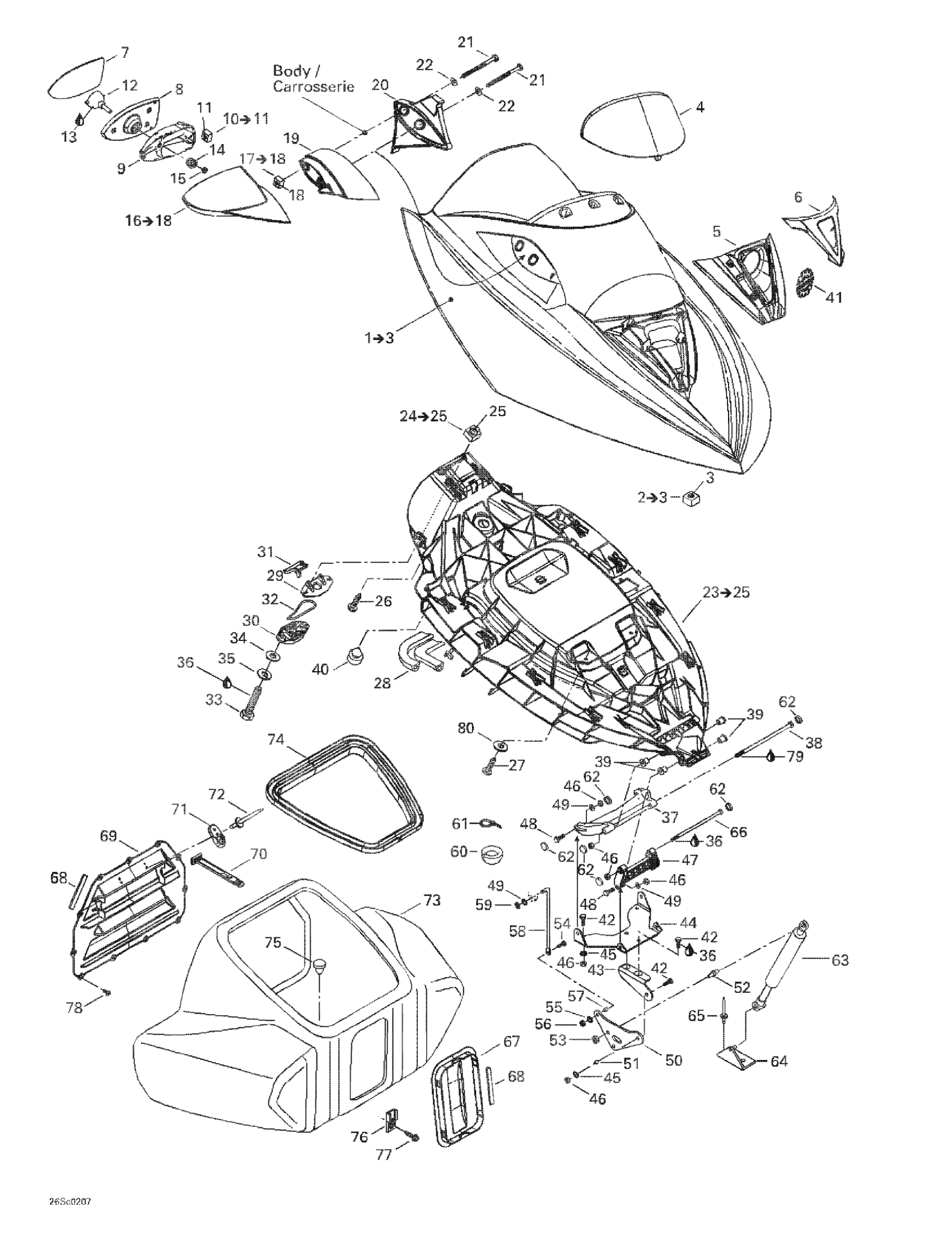

Sea-doo GTX DI, 5563/5564/5595/5596, 2002 Front Storage Compartment Diagram

#

Description
Price

1

UPPER STORAGE COVER (GREEN) - Call your local BRP dealership | Includes 1 - 3. GTX DI 5563/5564.

269501151

Unavailable

Cover 5593 Models (Blue) | GTX 4-TEC 5593/5594.

269501140

Unavailable

2

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

3

Hex. Nut M6

232061600

$0.91

4

Deflector, Amber | Viper Red, B-267

269500943

Unavailable

5

Lower Grille

269500994

Unavailable

6

Upper Grille

269500942

Unavailable

7

RH Mirror

269500687

Unavailable

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

8

Frame Mirror

269500697

Unavailable

9

Housing Support | WAKE

269500807

Unavailable

10

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

11

Hex. Elastic Nut M8

232581600

$1.25

12

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

13

Synthetic Grease, 400 G

293550010

Unavailable

14

Mirror Spring

269500453

$7.97

15

Hex. Elastic Stop Nut M6

232561600

$0.92

16

Mirror Shell RH (Green) | Includes 16 - 18. GTX DI 5563/5564.

269500945

Unavailable

RH Mirror Shell | BLUE (B-544) GTX 4-TEC 6125/6126.

269500893

Unavailable

Mirror Shell LH (Green) | GTX DI 5563/5564.

269500948

Unavailable

LH mirror shell | BLUE (B-544)

269500895

Unavailable

17

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

18

Hex. Elastic Nut M8

232581600

$1.25

19

Mirror Support RH (Green) | GTX DI 5563/5564.

269501017

Unavailable

RH Mirror Support | BLUE (B-544) GTX 4-TEC 6125/6126.

269500897

Unavailable

Mirror Support LH (Green) | GTX DI 5563/5564.

269501018

Unavailable

LH Mirror Support | BLUE (B-544)

269500899

Unavailable

20

RH Spacer

269500950

Unavailable

LH Spacer

269500951

Unavailable

21

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

22

Flat Washer 8 mm, Stainless

234082600

$1.98

23

Lower Storage Cover Ass'y | Includes 25 to 27

269500952

Unavailable

24

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

25

Hex. Nut M6

232061600

$0.91

26

Hex. Flange Screw K40 X 13

241141360

$0.56

27

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.22

28

Was 293200017 Neoprene Seal

219704365

$118.27

29

Latch Ass'y

269700109

$20.12

30

Latch Ass'y

269700109

$20.12

31

Latch Ass'y

269700109

$20.12

32

Latch Spring

269700017

$7.27

33

Hex. Screw M6 X 30

207063060

$1.51

34

Stainless Flat Washer M6

234061600

$0.25

35

Lock Washer Helical M6

234161601

$0.92

36

Loctite 243, 10 ml

293800060

$20.77

37

REAR ARM - Call your local BRP dealership

269501481

Unavailable

38

Hex. Screw M6 X 150

230065060

$9.40

39

Sleeve

269500706

$4.30

40

Rubber Bumper

293830005

$5.33

41

BRP Logo 48mm

516008738

$12.87

42

Hex. Forming Screw M6 X 20

207162060

$1.03

43

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

44

Pivot Support

269500934

Unavailable

45

Flat Washer M6, Stainless

234062600

$0.64

46

Hex. Elastic Stop Nut M6

232561600

$0.92

47

FRONT ARM - Call your local BRP dealership

269501482

Unavailable

48

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

49

Stainless Flat Washer M6

234061600

$0.25

50

LEVER - Call your local BRP dealership

269501576

Unavailable

51

SPACER - Call your local BRP dealership

269501172

Unavailable

52

Ball Head Stud

250300016

$11.69

53

Hex. Elastic Nut M8

232581600

$1.25

54

Hex. Screw M4 X 16 | Europe

207141660

$1.22

55

Flat Washer 4 mm, Stainless

234041600

$0.91

56

Elastic Stop Nut M4

232541600

$0.92

57

SPACER - Call your local BRP dealership

269501130

Unavailable

58

ROD - Call your local BRP dealership

269500842

Unavailable

59

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

60

Cable Grommet

293720063

Unavailable

61

Tie-Rap 180 mm

414115200

$0.09

62

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

63

Gas Shock Ass'y

269501625

$60.42

64

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

65

Avdel Rivet 3/16"

293150037

$0.47

66

Hex. Screw M6 x 100

230006060

Unavailable

67

Front Door

291001744

Unavailable

68

Gasket, Neoprene 2000Mm Long

219704476

$12.64

69

Rear Door

291001743

Unavailable

70

Strap

269502417

$14.27

71

Hook

269500521

Unavailable

72

Avdel Rivet

293150027

$2.30

73

Front Tray

269500955

Unavailable

74

Cover Trim

269501016

Unavailable

75

Black Plug

291000279

$5.99

76

Clip

270000141

$8.33

77

Flange Screw K40 X 20

241642060

$1.06

78

Tuflok Plastic Rivet

293150230

$1.21

79

Loctite 271, 10 ml

293800005

$20.77

80

Flat Washer M6, Stainless

234062600

$0.64
