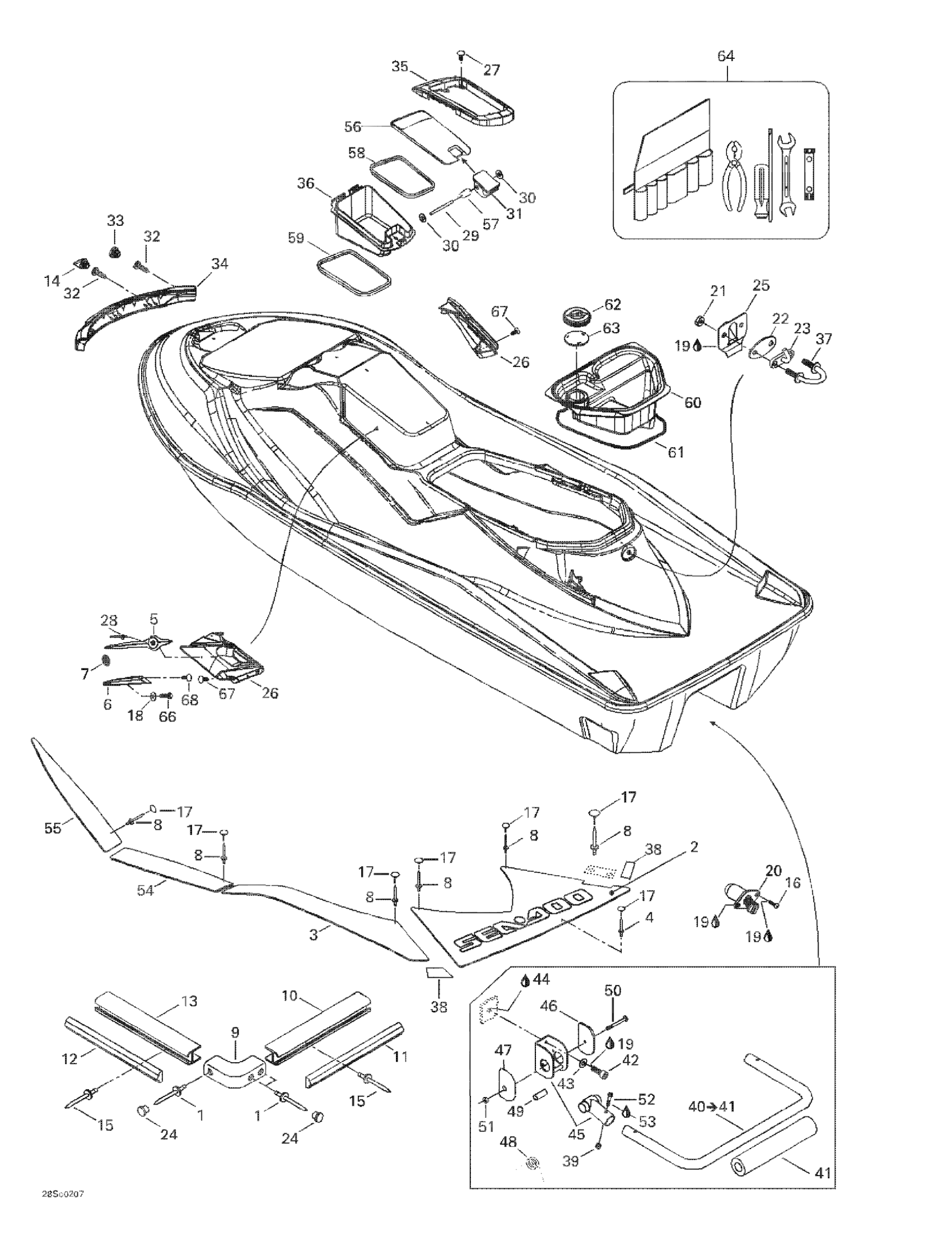

Sea-doo GTX DI, 5563/5564/5595/5596, 2002 Body, Rear View Diagram

#

Description
Price

1

Pop Rivet 3/16"

293150013

$1.37

2

Rear Carpet (Black)

291001592

Unavailable

3

RH Rear Carpet

291001593

Unavailable

LH Rear Carpet

291001594

Unavailable

4

Pop Rivet 1/8”

293150015

$0.40

5

FINITION PLATE - Call your local BRP dealership

269500716

Unavailable

6

RH INSERT - Call your local BRP dealership | WAKE

293450223

Unavailable

LH INSERT - Call your local BRP dealership | WAKE

293450224

Unavailable

7

BRP Logo 48mm

516008738

$16.99

8

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

9

Bumper Corner

291002244

$48.99

10

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

11

REAR BUMPER TRIM - Call your local BRP dealership | GTX DI 5563/5564.

291001612

Unavailable

Rear Bumper Trim | Blue (B-544) GTX 4-TEC 6125/6126.

291001540

Unavailable

12

SIDE BUMPER TRIM - Call your local BRP dealership

204050271

Unavailable

Side Bumper Trim | Blue (B-544) GTX 4-TEC 6125/6126.

291001763

Unavailable

13

Black, Side Bumper

204050270

$179.99

14

Bumper Plug, Black

291001040

$7.39

15

Pop Rivet 3/16"

293150005

$0.52

16

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

17

Black, Snap Cap

293000014

$1.09

18

Flat Washer 5 mm, Stainless

234052600

$0.77

19

Silicone Sealant 51388, 300 ml

296000309

$36.99

20

DRAIN ASSY - Call your local BRP dealership

292000685

Unavailable

21

Hex. Elastic Nut M8

232581600

$1.48

22

Black, Finition Plate

291001386

$10.99

23

Hook | Package LTD

291002351

$69.99

24

Bumper Plug, Black

291000339

$2.99

25

Retainer Plate

291001853

Unavailable

26

RH GRILL, BLACK - Call your local BRP dealership | WAKE

269500931

Unavailable

LH GRILL, BLACK - Call your local BRP dealership | WAKE

269500932

Unavailable

27

Black, Dart

293730006

$0.99

28

Pop Rivet 3/16"

293150008

$0.50

29

Pin

211400008

$9.10

30

Push Nut | Not shown

211100002

$2.19

31

Latch, Black

269500553

$21.99

32

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

33

Bumper Plug, Black

291001519

$5.49

34

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

35

Cover Trim, Black

269501031

$53.99

36

GLOVE BOX - Call your local BRP dealership

269500968

Unavailable

37

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

38

RH ANTI-SKID - Call your local BRP dealership

291001758

Unavailable

LH Anti-Skid

291001759

Unavailable

39

Nut M6 | Model-Australie, Brezil, Europe

232361600

$4.34

40

Stair Tube Ass’Y | Includes items 42 to 43

292000778

Unavailable

41

PROTECTIVE SLEEVE - Call your local BRP dealership

292000781

Unavailable

42

Socket Head Screw M6 X 25, Scotch Grip

250000076

$1.69

43

Flat Washer M6, Stainless

234062600

$0.77

44

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

45

Support Ass’Y

292000539

Unavailable

46

RH Support Cap

292000540

Unavailable

47

LH Support Cap

292000548

Unavailable

48

RECALL SPRING - Call your local BRP dealership

292000541

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Phillips Screw

211000186

Unavailable

51

NUT-LOCKING 1/4-20 - Call your local BRP dealership

211100061

Unavailable

52

Socket Head Screw M6 X 35

205063560

$2.22

53

Loctite 243, 10 ml

293800060

$21.49

54

RH Center Carpet

291001595

Unavailable

LH Center Carpet

291001596

Unavailable

55

RH Front Carpet

291001597

Unavailable

LH Front Carpet

291001598

Unavailable

56

GLOVE BOX DOOR - Call your local BRP dealership

269501648

Unavailable

Box Door | Blue (B-544) GTX 4-TEC 6125/6126.

269501144

Unavailable

57

Latch Spring

291000922

$7.39

58

GASKET - Call your local BRP dealership

293250126

Unavailable

59

GASKET - Call your local BRP dealership

293250127

Unavailable

60

Rear Tray

269501036

Unavailable

61

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

62

COVER - Call your local BRP dealership

269000788

Unavailable

63

COVER SEAL - Call your local BRP dealership

269000810

Unavailable

64

Owners Tool Kit

295500783

Unavailable

65

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

66

Hex. Flange Screw K40 X 16

241141660

$1.48

67

Black, Dart

293730006

$0.99

68

Black Dart

293730010

$0.99
