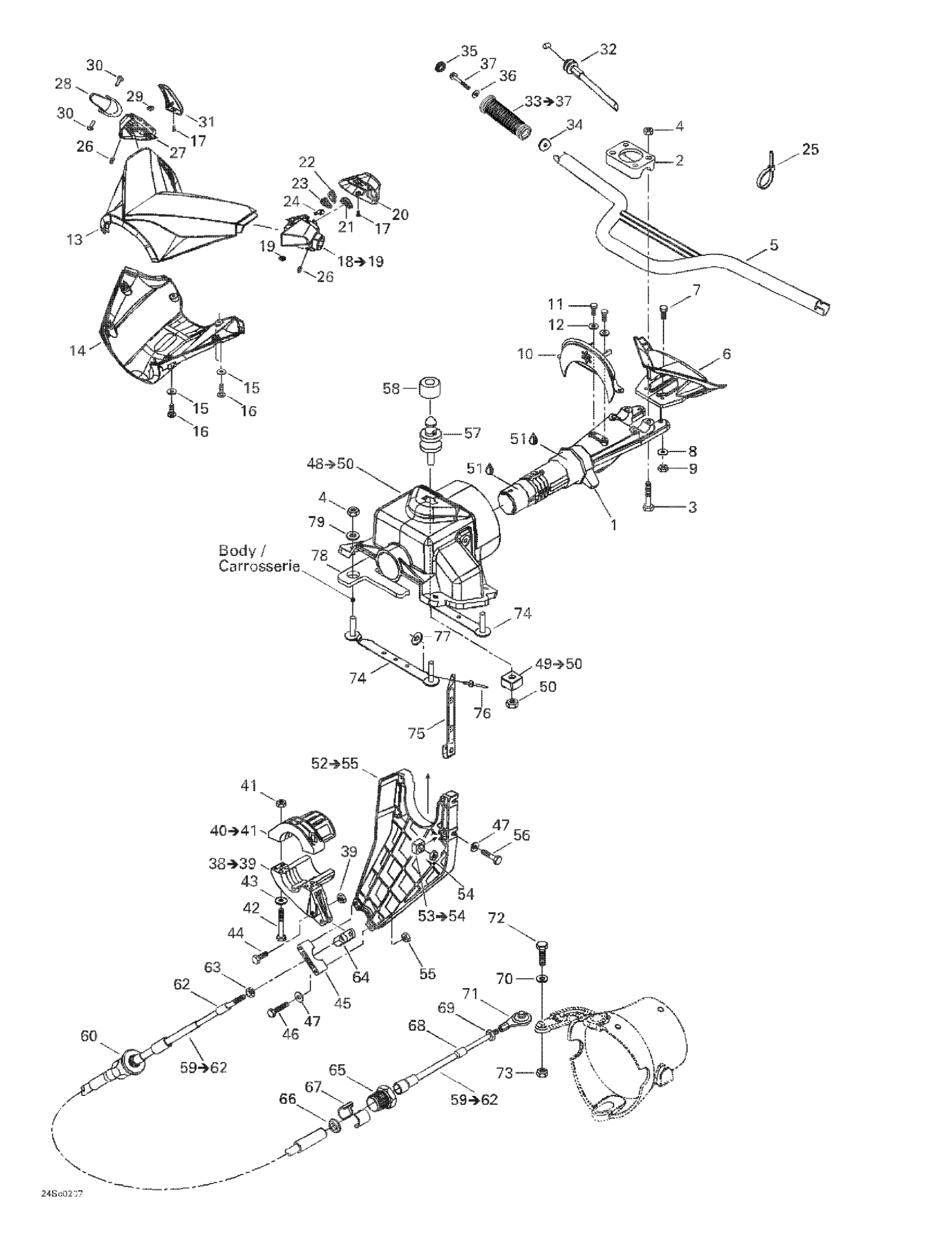

Sea-doo GTX DI, 5563/5564/5595/5596, 2002 Steering System Diagram

#

Description
Price

1

Steering Stem

277000562400

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

3

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

4

Hex. Elastic Nut M8

232581600

$1.48

5

Handlebar

277001012

Unavailable

6

Handle Pad (Jade) | GTX DI 5563/5564.

277000950

Unavailable

Handle Pad (Blue) | GTX 4-TEC 5593/5594.

277001078

Unavailable

7

Hex. Screw M6 X 30

207063060

$1.89

8

Stainless Flat Washer M6

234061600

$0.33

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

PLATE - Call your local BRP dealership

277000549

Unavailable

11

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.77

13

UPPER STEERING COVER, BLACK - Call your local BRP dealership

277000952

Unavailable

14

Lower Steering Cover

277000953

Unavailable

15

Flat Washer M5, Stainless

234051600

$0.77

16

Hex. Flange Screw K40 X 16

241141660

$1.48

17

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

18

HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9

277001481

Unavailable

19

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

20

LH Cover Housing

277001025

Unavailable

21

Stop Knob

278001713

$18.49

22

MODE KNOB - Call your local BRP dealership

278001714

Unavailable

23

SET KNOB - Call your local BRP dealership

278001715

Unavailable

24

U Bracket

277001069

Unavailable

25

Tie Wrap 142 mm

293750002

$1.25

26

Socket Head Screw M6 X 16

250000036

$9.00

27

THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19

277001483

Unavailable

28

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

29

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

30

PIN - Call your local BRP dealership

277000381

Unavailable

31

THROTTLE HOUSING COVER - Call your local BRP dealership

277001023

Unavailable

32

Throttle Cable

277000851

Unavailable

33

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Black, Cap

277000203

$9.39

36

Flat Washer M6, Stainless

234062600

$0.77

37

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

38

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

39

Hex. Elastic Stop Nut M6

232561600

$1.15

40

Arm Thrust | Includes 43 to 44

277000519

Unavailable

41

Hex. Elastic Stop Nut M6

232561600

$1.15

42

Hex. Screw M6 X 25

207162560

$1.47

43

Flat Washer M6, Stainless

234062600

$0.77

44

Hex. Screw M6 X 30

211000081

$3.59

45

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

46

Hex. Screw M6 X 50

207065060

$2.22

47

Stainless Flat Washer M6

234061600

$0.33

48

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

49

Nut Housing Ass’Y | Includes 64 to 65

271001115

Unavailable

50

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

51

Synthetic Grease, 400 G

293550010

Unavailable

52

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

53

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

54

Hex. Nut M6

232061600

$1.15

55

Hex. Elastic Stop Nut M6

232561600

$1.15

56

Hex. Forming Screw M6 X 20

207162060

$1.29

57

Latch Stud

291001420

Unavailable

58

RUBBER PAD - Call your local BRP dealership

293830078

Unavailable

59

Steering Cable Ass’Y | Includes 44 to 47

277000949

Unavailable

60

Ajustment Knob

277000782

$22.99

61

Hex. Nut 1/4"-28

211100056

$0.69

62

Terminal Wiper

277000441

$11.99

63

Stainless, Flat Washer 8 mm

234081600

$0.55

64

Ball Joint

277001180

$35.99

65

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

66

Rubber Washer

293830063

$1.90

67

Half Ring

277001527

$10.37

68

Terminal Wiper

277000441

$11.99

69

Hex. Nut 1/4"-28

211100056

$0.69

70

Stainless Flat Washer M6

234061600

$0.33

71

Ball Joint

277000775

$51.99

72

Hex. Screw M6 X 35

207063560

$2.22

73

Hex. Elastic Stop Nut M6

232561600

$1.15

74

STEERING SUPPORT - Call your local BRP dealership

277001072

Unavailable

75

Hose Support

291001760

Unavailable

76

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

77

Flat Washer M3, Stainless

234032600

$0.55

78

GASKET - Call your local BRP dealership

293250171

Unavailable
