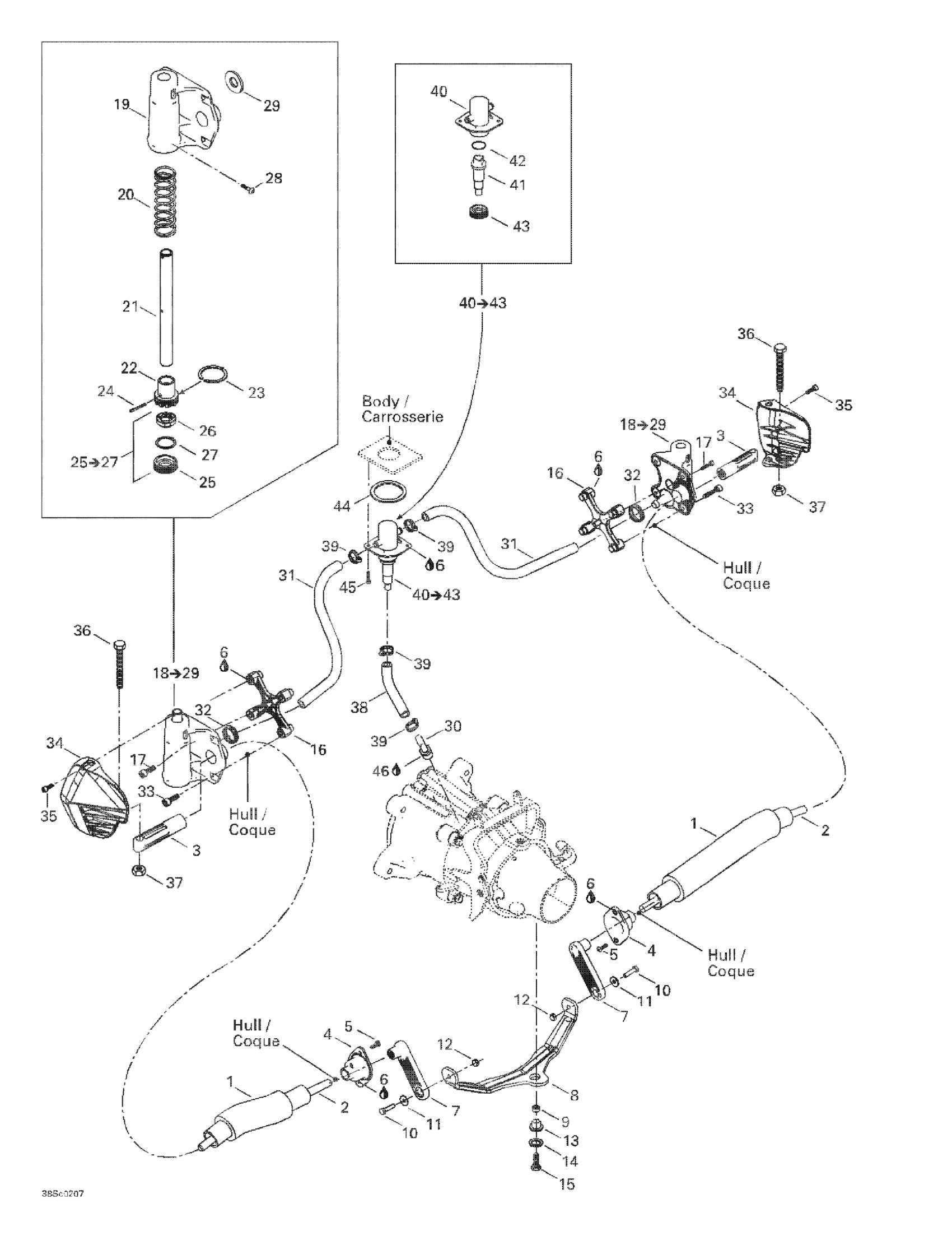

Sea-doo GTX DI, 5563/5564/5595/5596, 2002 Off Power Assisted Steering Diagram

#

Description
Price

1

Seal Tube

277001123

$45.99

2

RH TIE ROD - Call your local BRP dealership

277001063

Unavailable

LH TIE ROD - Call your local BRP dealership

277000976

Unavailable

3

FITTING STABILISATOR - Call your local BRP dealership

265000014

Unavailable

4

ROD GROMMET - Call your local BRP dealership

277000977

Unavailable

5

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

6

Silicone Sealant 51388, 300 ml

296000309

$36.99

7

LEVER - Call your local BRP dealership

265000013

Unavailable

8

U LEVER - Call your local BRP dealership

277000979

Unavailable

9

Venturi Bushing

271000321

$8.69

10

Hex. Screw M6 X 25

207162560

$1.47

11

FLANGED BUSHING - Call your local BRP dealership

293900042

Unavailable

12

Hex. Elastic Stop Nut M6

232561600

$1.15

13

Bushing

277000980

$15.99

14

Flat Washer 8 mm, Stainless

234082600

$2.43

15

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

16

Support Plate

277000981

Unavailable

17

Hex. Flange Screw K40 X 25

241142560

$2.64

18

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

19

CYLINDER SUPPORT R.H - Call your local BRP dealership

277001106

Unavailable

CYLINDER SUPPORT L.H - Call your local BRP dealership

277001105

Unavailable

20

SPRING - Call your local BRP dealership

277000962

Unavailable

21

Pivot Rod

277001091

$56.99

22

Piston

277000965

Unavailable

23

Split Ring

277000983

Unavailable

24

Spring Pin

250400014

$3.28

25

COVER ASS'Y - Call your local BRP dealership | Includes 25 - 27.

277001081

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

29

SEAL - Call your local BRP dealership

293250119

Unavailable

30

ELBOW ASSY - Call your local BRP dealership

271001298

Unavailable

31

Was 276000001 Hose 12.5 mm

219704394

$51.99

32

OETIKER CLAMP - Call your local BRP dealership

293650123

Unavailable

33

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

34

Side Vane R.H

277000960

Unavailable

Side Vane L.H

277000959

Unavailable

35

Socket Screw M4 X 16 (Scotch Grip)

205541660

$2.09

36

HEX. SCREW M8 X 110 - Call your local BRP dealership

250000077

Unavailable

37

Hex. Elastic Nut M8

232581600

$1.48

38

Formed Hose

276000101

Unavailable

39

Tridon Gear Clamp

293650172

$3.09

40

Valve Housing

277000999

Unavailable

40

Valve Housing

277000990

Unavailable

41

Piston

277000996

Unavailable

42

O-Ring

414542700

Unavailable

43

Threaded Cover

277000967

Unavailable

44

Seal

293250120

Unavailable

45

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

46

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99
