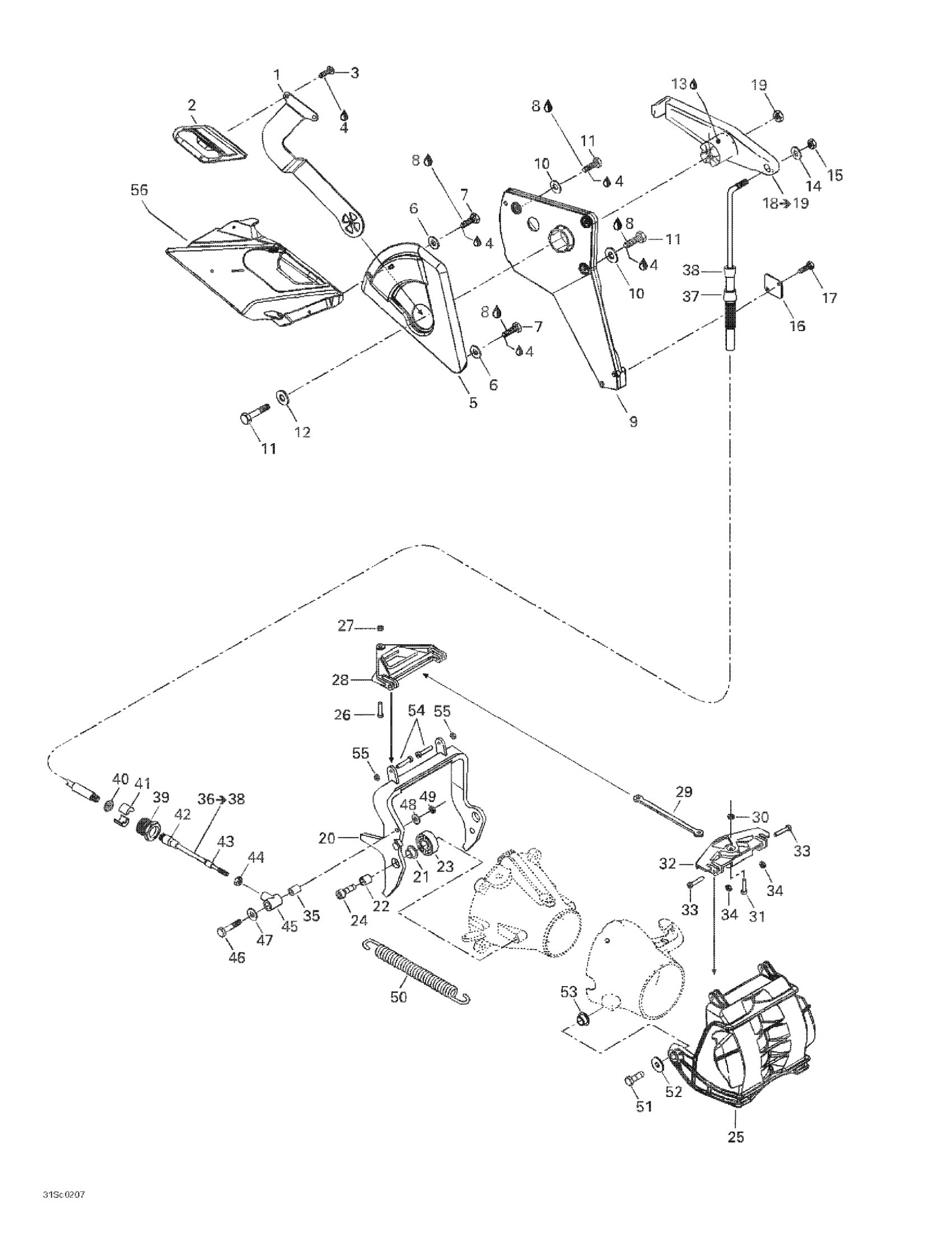

Sea-doo GTX DI, 5563/5564/5595/5596, 2002 Reverse Diagram

#

Description
Price

1

REVERSE HANDLE LEVER - Call your local BRP dealership | GTS PRO

268000022

Unavailable

2

REVERSE HANDLE, BLACK - Call your local BRP dealership

271001157

Unavailable

3

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

4

Loctite 243, 10 ml

293800060

$20.77

5

REVERSE HANDLE HOUSING - Call your local BRP dealership

268000009

Unavailable

6

Flat Washer M6.6 X 22

250200022

$1.87

7

Hex. Cap Screw M6 X 12

207161260

$1.21

8

Silicone Sealant 51388, 300 ml

296000309

$35.72

9

REVERSE CABLE SUPPORT - Call your local BRP dealership

268000010

Unavailable

10

Flat Washer M6, Stainless

234062600

$0.64

11

Hex. Screw M6 X 16

207161660

$1.22

12

Stainless Flat Washer M6

234061600

$0.25

13

Synthetic Grease, 400 G

293550010

Unavailable

14

Flat Washer M5, Stainless

234051600

$0.64

15

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

Unavailable

16

BRACKET - Call your local BRP dealership

277001058

Unavailable

17

Hex. Flange Screw M5 X 30

207153060

$1.53

18

Lever Ass.

271000986

$33.12

19

Hex. Elastic Stop Nut M6

232561600

$0.92

20

ARM BLACK - Call your local BRP dealership

271001012

Unavailable

21

Venturi Bushing

271000321

$6.18

22

Spacer

271001039

$11.78

23

BUSHING - Call your local BRP dealership | GTS PRO

293900038

Unavailable

24

PIVOT SCREW M8 X 25 - Call your local BRP dealership

250000026

Unavailable

25

Gate Reverse

271001317

Unavailable

26

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

27

Hex. Elastic Nut M5 | X

232551600

$0.91

28

TRIANGLE - Call your local BRP dealership

268000013

Unavailable

29

CONNECTOR ROD - Call your local BRP dealership

271001018

Unavailable

30

Hex. Elastic Nut M5 | X

232551600

$0.91

31

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

32

ROD PIVOT - Call your local BRP dealership

268000014

Unavailable

33

SCREW PIVOT - Call your local BRP dealership

250000023

Unavailable

34

Hex. Elastic Nut M5 | X

232551600

$0.91

35

Spacer

271001020

$9.23

36

Reverse Cable | Includes 16 to 18

268000030

$123.47

37

Boot, Large

277000473

Unavailable

38

Boot, Small

277000466

Unavailable

39

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

40

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

41

Half Ring

277000055

$6.19

42

Boot, Large

277000473

Unavailable

43

Boot, Small

277000466

Unavailable

44

Hex. Nut

212100005

$0.90

45

Joint

277001204

$14.27

46

Hex. Screw M6 X 35

207063560

$1.85

47

Flat Washer M6, Stainless

234062600

$0.64

48

Stainless Flat Washer M6

234061600

$0.25

49

Hex. Elastic Stop Nut M6

232561600

$0.92

50

Spring

271001328

$12.57

51

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

52

Flat Washer 8 mm, Stainless

234082600

$1.98

53

Spacer

277001066

Unavailable

54

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

55

Hex. Elastic Nut M5 | X

232551600

$0.91

56

LH GRILL, BLACK - Call your local BRP dealership | WAKE

269500932

Unavailable
