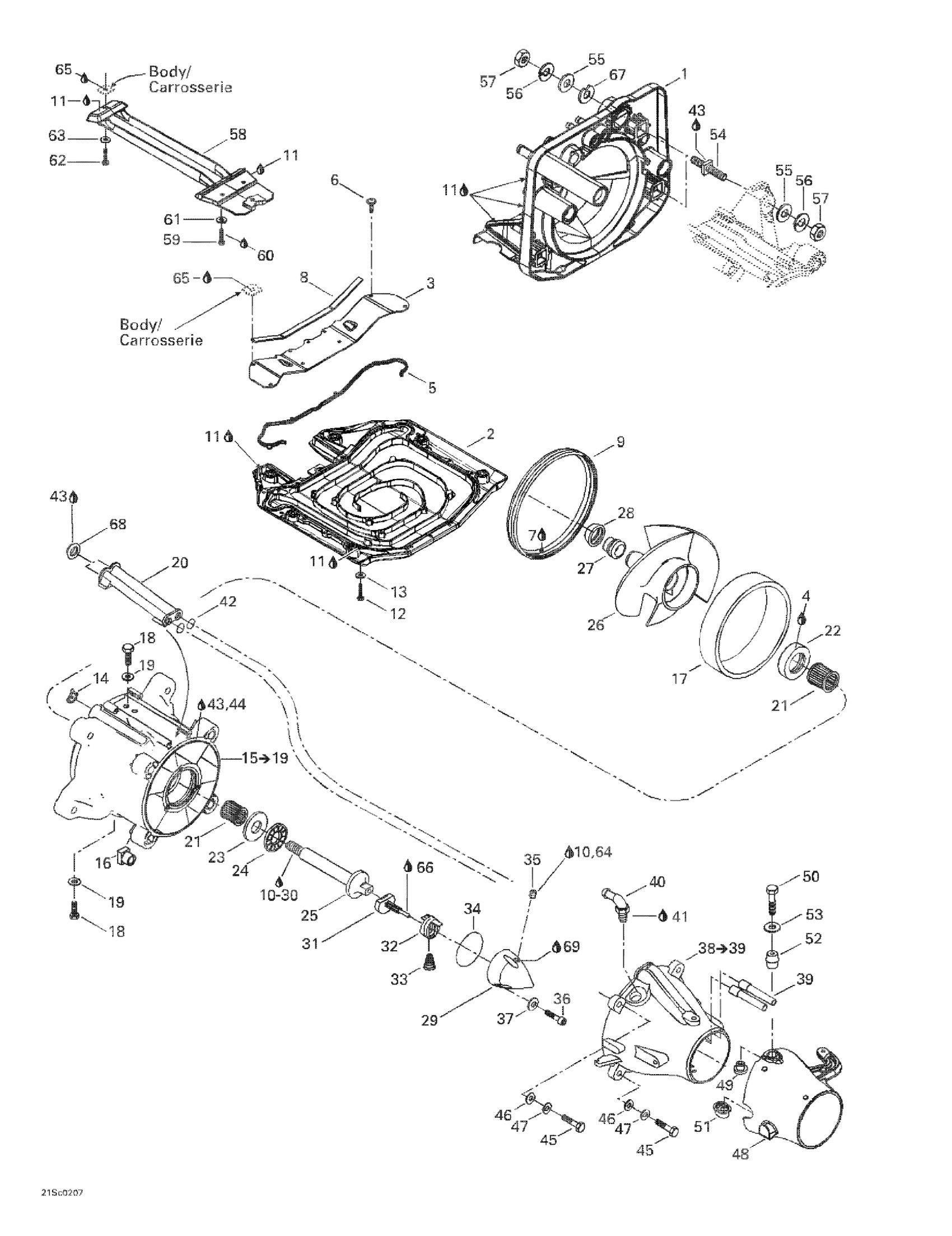

Sea-doo GTX DI, 5563/5564/5595/5596, 2002 Propulsion System Diagram

#

Description
Price

1

Pump Support

271001315

Unavailable

2

Riding Plate

271001305

Unavailable

3

Cover Plate

271001271

Unavailable

4

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

5

OIL SEAL - Call your local BRP dealership

293250129

Unavailable

6

Torx Button Head Screw M6 X 14

250000064

$6.66

7

Glue Tube, Loctite 454, 20 G

413708300

$60.99

8

Gasket, Neoprene 2000Mm Long

219704476

$15.36

9

Neoprene Seal

293200051

$17.74

10

Was 293800041 Loctite Primer 7649

219704458

$39.99

11

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

12

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

13

Stainless, Flat Washer 8 mm

234081600

$0.55

14

Reducer

291001761

Unavailable

15

Impeller Housing | Includes 15 - 19.

271001347

Unavailable

16

Square Nut M8

211100033

$17.99

17

Wear Ring

271000653

$58.49

18

Hex. Plastite Screw #10 X 3/8"

250000040

$1.05

19

Flat Washer M5, Stainless

234051600

$0.77

20

Water Outlet

271000785

$3.80

21

Needle Bearing

293350017

$27.99

22

Oil Seal

267000094

$22.49

23

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

24

Thrust-Bearing

293350022

$45.99

25

Impeller Shaft

271000965

$116.49

26

Impeller Ass’Y

271000920

$391.99

27

Impeller Boot

271000516

$9.59

28

Impeller Ring

271000517

$9.59

29

IMPELLER COVER - Call your local BRP dealership

271001250

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

PUSHER ASS?Y - Call your local BRP dealership

271001124

Unavailable

32

SLIDER - Call your local BRP dealership

271001107

Unavailable

33

SPRING - Call your local BRP dealership

271001108

Unavailable

34

O-Ring

293300011

$8.64

35

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

36

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

37

Stainless Flat Washer M6

234061600

$0.33

38

VENTURI, BLACK - Call your local BRP dealership

271001301

Unavailable

39

Siphon Tube

271001133

$10.99

40

ELBOW ASSY - Call your local BRP dealership

271001298

Unavailable

41

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

42

O-Ring

293300013

$8.18

43

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

44

Was 293800041 Loctite Primer 7649

219704458

$39.99

45

Hex. Screw M8 X 50, Scotch Grip

207285060

$2.11

46

Stainless, Flat Washer 8 mm

234081600

$0.55

47

Lock Washer 8 mm, Stainless

234181601

$0.55

48

Steering Nozzle

271001311

Unavailable

49

Venturi Bushing

293900001

$7.62

50

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

51

Plastic Bushing

293900010

$9.59

52

Sleeve

271001816

$14.99

53

Flat Washer M8.5 x 18

293050001

$3.07

54

Square Stud

250300022

$20.99

55

Flat Washer 10 mm, Stainless

234002600

$2.22

56

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

57

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

58

PUMP GRATE - Call your local BRP dealership

271001169

Unavailable

59

Hex. Screw M6 X 16

207161660

$1.59

60

Loctite 271, 10 ml

293800005

$26.99

61

Stainless Flat Washer M6

234061600

$0.33

62

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

63

Stainless, Flat Washer 8 mm

234081600

$0.55

64

Was 293800013 Loctite 56765

219704454

$65.99

65

Silicone Sealant 51388, 300 ml

296000309

$36.99

66

Synthetic Grease, 400 G

293550010

Unavailable

67

Shim 0.3 mm

272000053

$11.49

68

Watertight Seal

293250084

$7.49

69

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99
