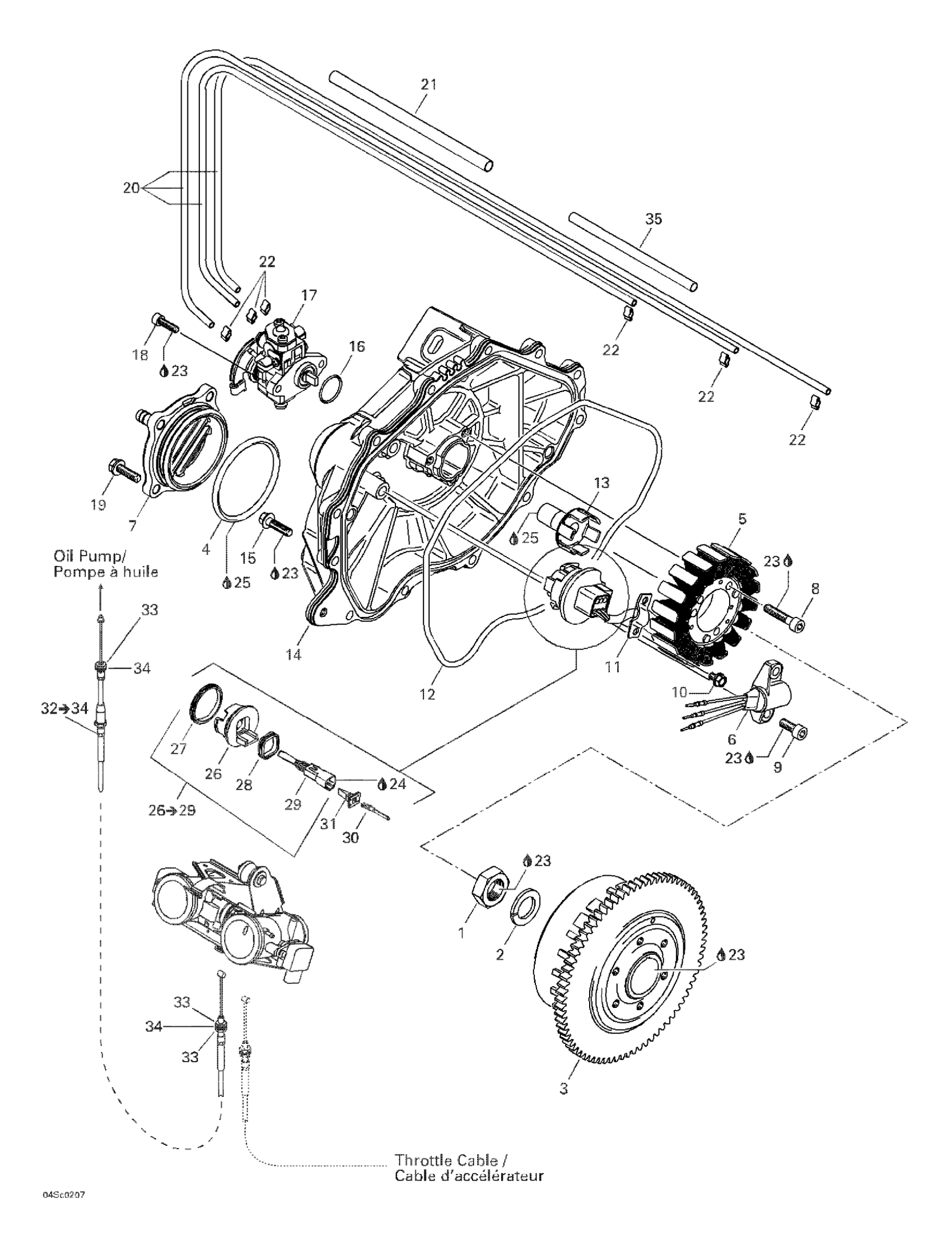

Sea-doo GTX DI, 5563/5564/5595/5596, 2002 Magneto, Oil Pump Diagram

#

Description
Price

1

HEX. NUT M18 - Call your local BRP dealership

420942220

$9.52

2

Lock Washer 18 mm

290945757

Unavailable

3

Flywheel Hub

290966822

Unavailable

4

O-RING - Call your local BRP dealership

420850390

$9.89

5

Stator Plate Ass'y

290888652

Unavailable

6

Sensor Ass'y

290966760

Unavailable

7

Waterchannel Cover

290811225

Unavailable

8

Socket Head Screw M6 X 35 This part replaces 420640051.

420640052

Unavailable

9

Hex.Screw M6 X 20

420441311

$4.24

10

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

$1.18

11

Retainer Plate

290853080

Unavailable

12

O-Ring

290931690

Unavailable

13

OIL PUMP SHAFT - Call your local BRP dealership

290837395

Unavailable

14

Ignition Cover

290811421

Unavailable

15

Hex. Flange Screw M6 x 25

290240033

Unavailable

16

O-RING - Call your local BRP dealership

293300018

Unavailable

17

OIL PUMP ASS'Y - Call your local BRP dealership

420888541

Unavailable

18

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

$1.60

19

Tapping Screw M6 x 20

290941253

Unavailable

20

Oil Hose 1500Mm Long

219704404

$13.62

21

Protection Hose

290960205

Unavailable

22

Clamp

293650105

$3.68

23

Loctite 243, 10 ml

293800060

$20.77

24

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

25

Dow Corning 111, 150 g

413707000

$57.82

26

Adaptor Ass'y | Includes 3 to 7

707000031

Unavailable

26

Adaptor

270000138

Unavailable

27

Gasket

293300033

Unavailable

28

Gasket

293200055`

Unavailable

29

Male Terminal Housing, 6 Circuits

710001539

$15.57

30

Male Terminal

278000631

$4.12

31

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

32

Injection Cable | Includes 28 to 30

270000546

$55.35

33

Hex. Nut M6

232160600

$1.08

34

Hex. Nut M6

232061600

$0.91

35

Protection Hose

290260465

Unavailable

36

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290888134

Unavailable

37

Cylinder Gasket Set (Not Shown)

290888139

Unavailable
