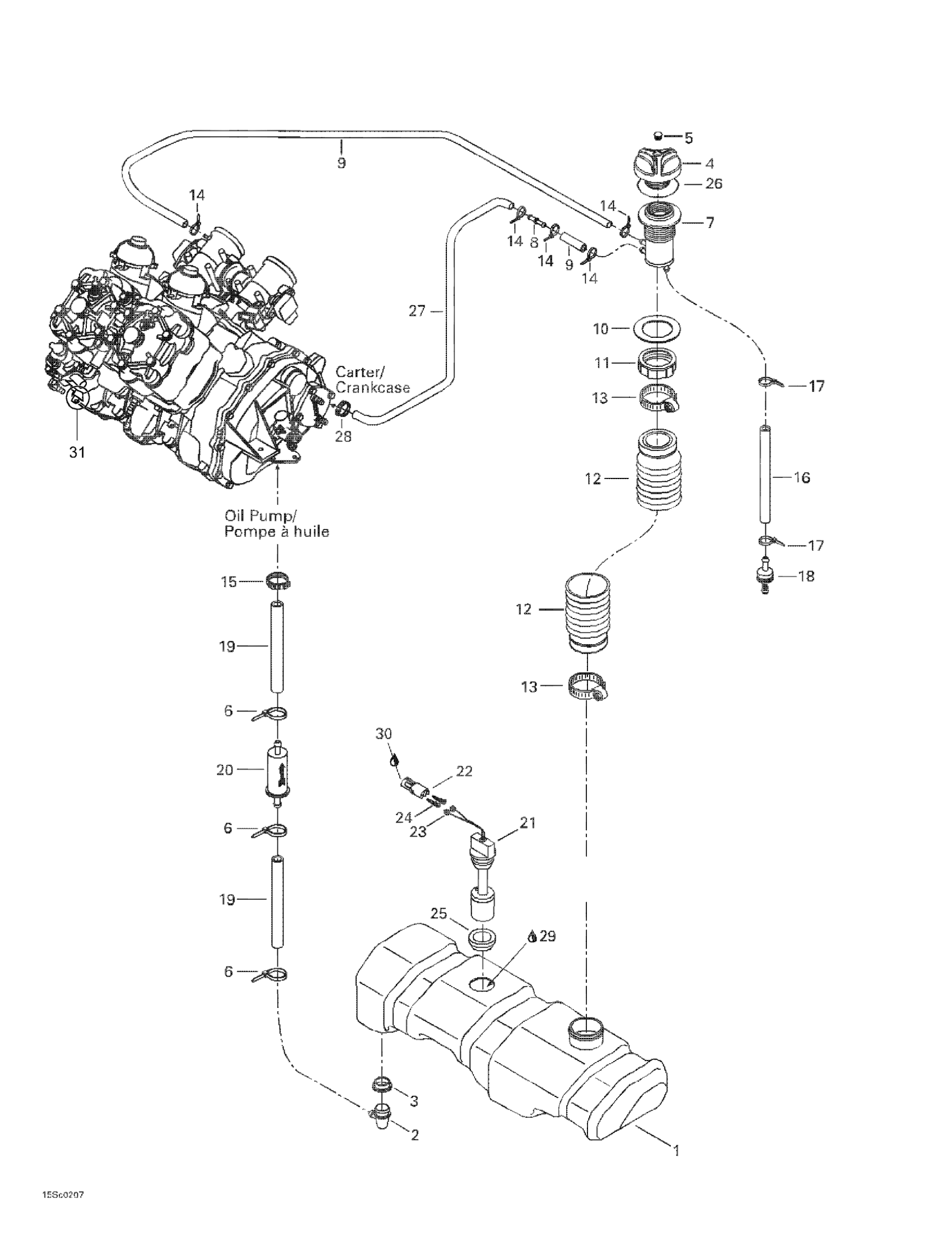

Sea-doo GTX DI, 5563/5564/5595/5596, 2002 Oil Injection System Diagram

#

Description
Price

1

Oil Tank

275000238

$98.99

2

Elbow Fitting 90°

293710070

Unavailable

3

Grommet

293720008

$14.75

4

OIL CAP - Call your local BRP dealership | Includes 17 to 18

275000221

Unavailable

5

Snap Cap, Black

293000076

Unavailable

6

Tie Wrap 94 mm | 4X4

293750001

$1.03

7

FILLER NECK - Call your local BRP dealership

275000234

Unavailable

8

STRAIGHT FITTING - Call your local BRP dealership

275500444

Unavailable

9

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

10

Gasket

293250029

$14.82

11

Filler Neck Nut, Fuel

211100012

$14.22

12

Filler Hose

275000185

Unavailable

13

Tridon Clamp

293650035

$7.29

14

Tie Wrap 94 mm | 4X4

293750001

$1.03

15

Oetiker Clamp

293650042

$3.09

16

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

17

Tie Wrap 94 mm | 4X4

293750001

$1.03

18

Check Valve

275500398

$10.99

19

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

20

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

21

OIL SENSOR - Call your local BRP dealership | Includes 18 to 22

278001515

Unavailable

22

Female Housing, 2 Circuits

278000217

$9.59

23

Wire Seal

278000218

$4.39

24

Male Terminal | XT Models

278000222

$3.19

25

Grommet

293720008

$14.75

26

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

27

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

28

Clamp

293650105

$4.44

29

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

$43.99

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

FORMULA XP-S DI OIL (12 X 1 LITERS) - Call your local BRP dealership

293600032

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

30

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

31

Elbow Fitting 90°

420924652

Unavailable
