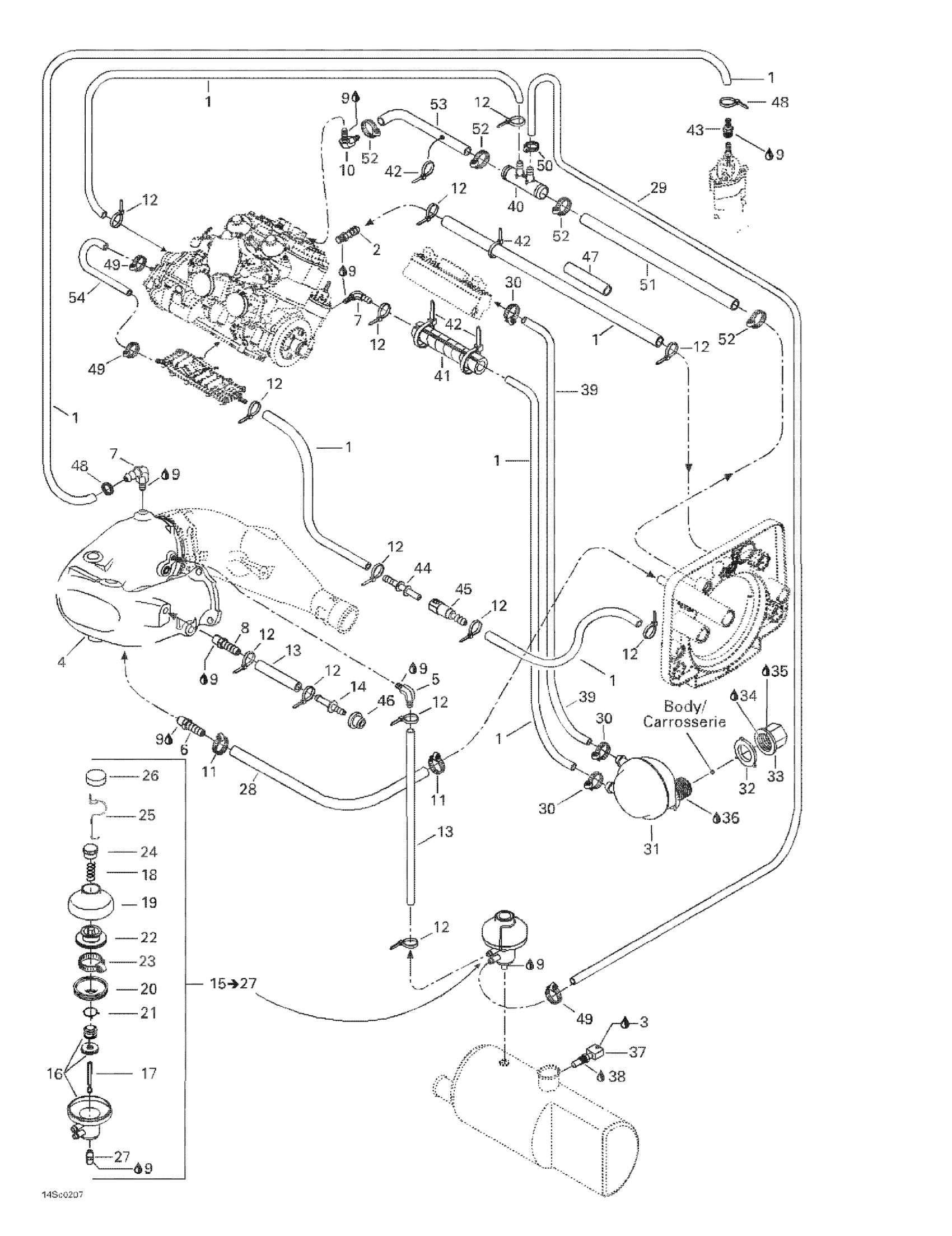

Sea-doo GTX DI, 5563/5564/5595/5596, 2002 Cooling System Diagram

#

Description
Price

1

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

2

MALE CONNECTOR - Call your local BRP dealership

293710066

Unavailable

3

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

4

Head Pipe | INCLUDES 1 TO 5

274000927

Unavailable

5

Elbow Fitting 90°

293710048

Unavailable

6

Male Connector | With Catalyst

293710021

$10.57

7

Elbow Fitting

293700016

Unavailable

8

Male Connector

293710037

$7.23

9

Was 293800013 Loctite 56765

219704454

$63.40

10

Elbow Fitting 90° | Without Catalyst

293700023

$17.13

11

Tridon Gear Clamp

293650172

$2.68

12

Tie Wrap 94 mm | 4X4

293750001

$0.83

13

Hose 6 Mm 15000Mm Long

219704360

$104.62

14

Straight Fitting

293710039

$6.75

15

Pressure Regulator Ass'y | Includes 15 - 27.

274000897

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

18

SPRING 44 MM - Call your local BRP dealership

274000382

Unavailable

19

Valve Cover

420911552

$36.54

20

Bellow

420260721

$42.87

21

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Rivalair Clamp

293650065

Unavailable

24

Adjuster Screw

420241221

$12.15

25

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

26

Cover Screw

274000903

Unavailable

27

MALE CONNECTOR - Call your local BRP dealership

293700010

Unavailable

28

Was 276000001 Hose 12.5 mm

219704394

$42.87

29

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

30

Tridon Gear Clamp

293650170

$1.74

31

Noise Reducer

270000482

Unavailable

32

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

33

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

34

Was 293800041 Loctite Primer 7649

219704458

$41.99

35

Loctite 243, 10 ml

293800060

$20.77

36

Silicone Sealant 51388, 300 ml

296000309

$35.72

37

Temperature Sensor

278002895

$31.82

38

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

39

BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership

276000084

Unavailable

40

Double Fitting

293710094

Unavailable

41

Tubing 10 MM 1000MM Long

219704407

$2.20

42

Tie Wrap 142 mm

293750002

$0.88

43

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

44

Quick Male Fitting

275500435

Unavailable

45

QUICK FEMALE FITTING - Call your local BRP dealership

275500436

Unavailable

46

Grommet

293720029

$1.13

47

Pvc Vinyl Tubing

293100011

Unavailable

48

Oetiker Clamp

293650042

$1.40

49

Tridon Gear Clamp

293650171

$2.46

50

Crimp Clamp, 15.3-706R

293650047

$2.64

51

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

52

Tridon Gear Clamp

293650051

$3.61

53

FORMED HOSE - Call your local BRP dealership

276000098

Unavailable

54

Hose

275500567

Unavailable
