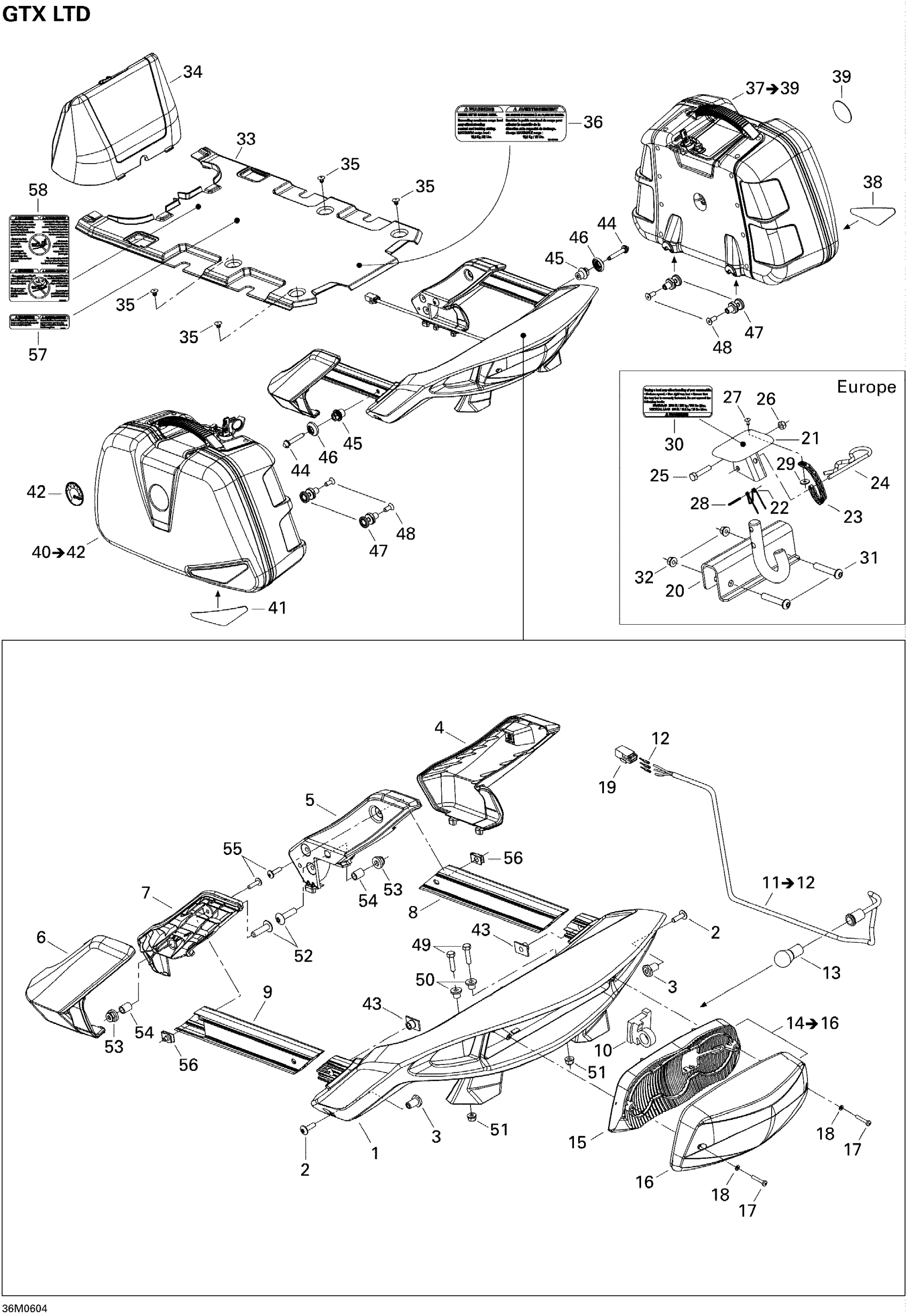

Ski-Doo GTX 800 HO, 2006 09- Luggage Rack LTD Diagram

#

Description
Price

1

RACK - Call your local BRP dealership

511000317

Unavailable

2

Torx Screw M6 X 20

250000722

$1.68

3

INSERT - Call your local BRP dealership

511000398

Unavailable

4

RH OUTSIDE ARM - Call your local BRP dealership

511000322

Unavailable

5

RH INSIDE ARM - Call your local BRP dealership

511000326

Unavailable

6

LH OUTSIDE ARM - Call your local BRP dealership

511000323

Unavailable

7

LH INSIDE ARM - Call your local BRP dealership

511000327

Unavailable

8

RH SIDE BAR - Call your local BRP dealership

511000321

Unavailable

9

LH SIDE BAR - Call your local BRP dealership

511000345

Unavailable

10

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

11

BULB SOCKET - Call your local BRP dealership | Includes 9 to 10

511000466

Unavailable

12

Male Terminal

515175232

$1.58

13

Bulb

520000758

$9.10

14

Lens And Reflector Kit | LTD

861509300

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

17

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

18

Washer - Call your local BRP dealership

414516400

Unavailable

19

Male Housing, 3 Circuits

515175494

$16.18

20

HITCH, BLACK - Call your local BRP dealership | Europe

511000354

Unavailable

21

Hitch Protector | Europe

517152700

Unavailable

22

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Hair Pin

114045200

$11.11

25

Hex. Screw M6 X 30

207063044

$1.26

26

Elastic Stop Nut M6

232561414

$0.55

27

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

28

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

31

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

32

Hex. Flange Elastic Nut M8

233281414

$1.47

33

Radiator Cover | LTD

511000439

Unavailable

34

Tank Cover

511000357

Unavailable

35

Pop Rivet 3/16"

293150103

$0.55

36

WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership

516002960

Unavailable

37

RH SUITCASE - Call your local BRP dealership | LTD, Includes 35 to 37

511000442

Unavailable

38

REAR REFLECTOR, RED - Call your local BRP dealership

520000237

Unavailable

39

BRP Logo, Vinyl

219902477

Unavailable

40

LH Suitcase | LTD, Includes 38 to 40

511000443

Unavailable

41

REAR REFLECTOR, RED - Call your local BRP dealership

520000237

Unavailable

42

BRP Logo, Vinyl

219902477

Unavailable

43

THREAD INSERT - Call your local BRP dealership

511000341

Unavailable

44

SUITCASE STUD - Call your local BRP dealership | Package SE

511000337

Unavailable

45

STUD NUT - Call your local BRP dealership | Package SE

511000423

Unavailable

46

Rubber Bumper | Package SE

511000358

$56.99

47

SUPPORT ROD - Call your local BRP dealership | LTD

511000338

Unavailable

48

Socket Head Screw M8 X 20, Scotch Grip

205882044

$2.96

49

Hex. Screw M6 X 25

207162544

$1.15

50

FLANGED BUSHING - Call your local BRP dealership

511000340

Unavailable

51

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

52

Hex Torx Truss M8 X30

250000745

$3.17

53

Hex. Flange Elastic Nut M8

233281414

$1.47

54

BUSHING - Call your local BRP dealership

511000325

Unavailable

55

Torx Screw M5 X 20

250000724

$1.69

56

Panel Nut M5 X 0.8

250000958

$4.23

57

CLENCHING DECAL - Call your local BRP dealership

516003035

Unavailable

58

Seat Decal | LTD

516003036

Unavailable
