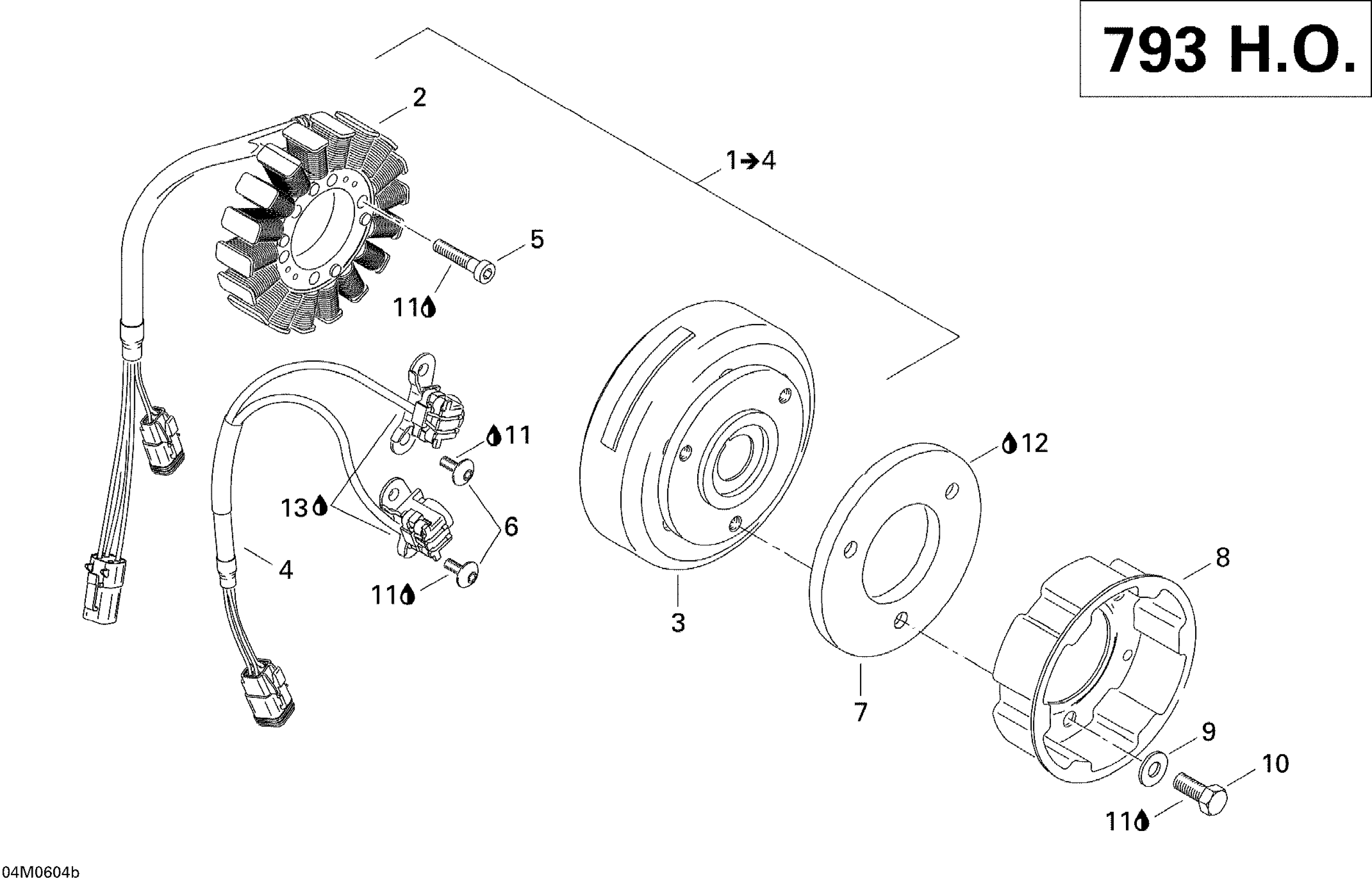

Ski-Doo GTX 800 HO, 2006 03- Magneto 793HO Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate A

420889905

$319.49

3

FLYWHEEL - Call your local BRP dealership

410922947

Unavailable

4

Pickup Ass'y

410922948

$199.99

5

Socket Head Screw M6 X 30

205063044

$1.69

6

Torx Screw M6 X 16

420640324

$2.11

7

Flywheel

420866756

Unavailable

8

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$24.99

9

Flat Washer

420827405

$1.69

10

Hex. Screw M8 X 20

207182044

$0.74

11

Loctite 243, 10 ml

293800060

$21.49

12

Sealant Loctite 648

219703000

$45.99

13

Not Available As Spare Part - Friction Washer

Unavailable
