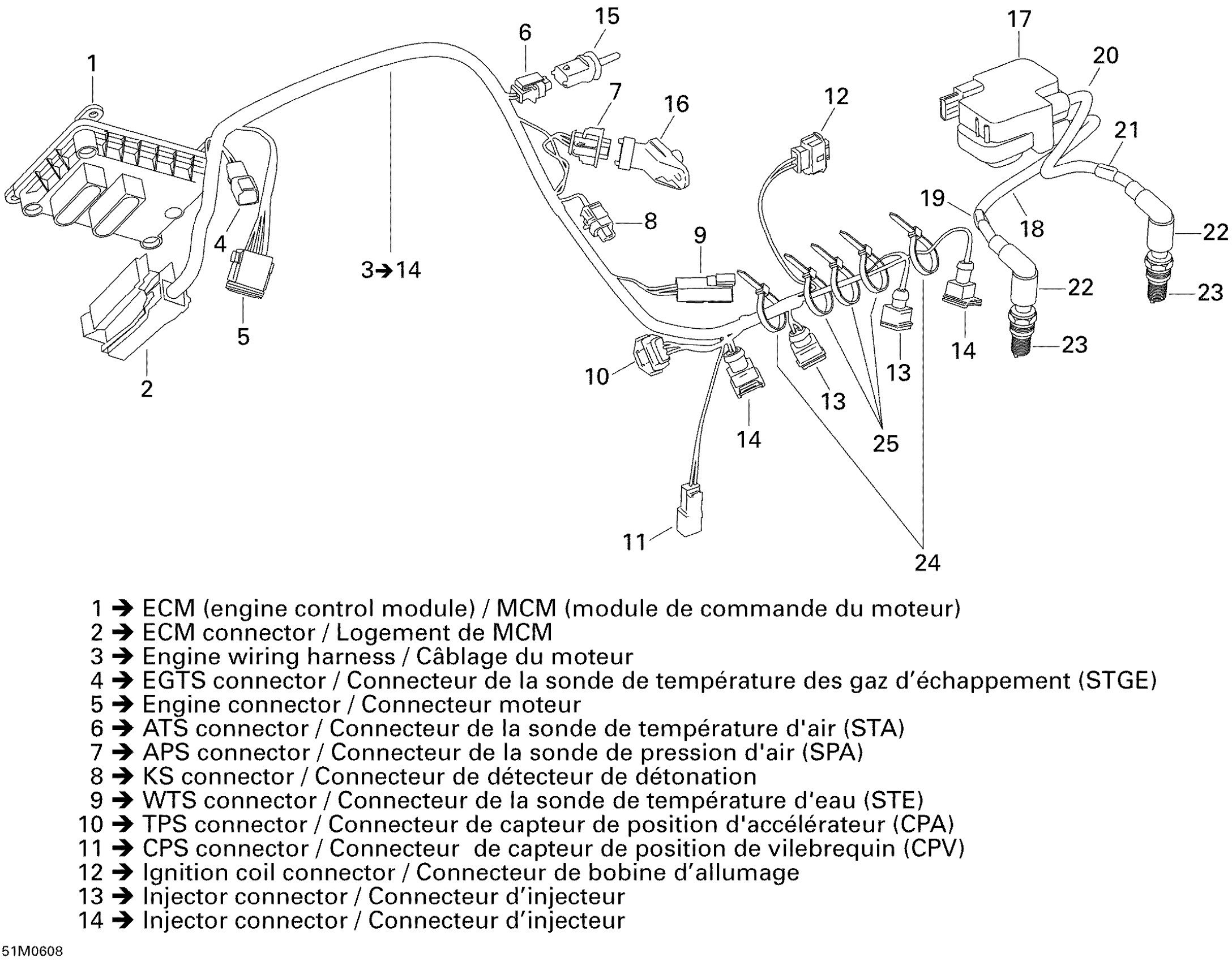

Ski-Doo GTX 600 HO SDI, 2006 10- Engine Harness And Electronic Module Diagram

#

Description
Price

1

ECM, ENGINE CONTROL MODULE - Call your local BRP dealership

420665199

Unavailable

2

ECM Connector

420664450

$27.49

3

Engine Wiring Harness Ass'y | Includes 3 to 14

420664317

Unavailable

4

Male Housing, 2 Circuits

278001005

$19.49

5

MALE HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001743

Unavailable

6

Male Housing, 2 Circuits

278001005

$19.49

7

Housing Connector, 3 Circuits

278001829

$21.99

8

Male Housing, 2 Circuits

278001005

$19.49

9

Female Housing, 4 Circuits

278000635

$16.49

10

Housing Connector, 3 Circuits

278001829

$21.99

11

Male Housing, 2 Circuits

409206900

$9.59

12

Not Available As Spare Part - Friction Washer

Unavailable

13

MALE HOUSING, 2 CIRCUITS, AMP - Call your local BRP dealership

415128566

Unavailable

14

Male Housing, 2 Circuits, Bosch

415128565

Unavailable

15

TEMPERATURE SENSOR - Call your local BRP dealership

420966970

Unavailable

16

Pressure Sensor

270600040

$199.99

17

Ignition Coil

278001546

$158.99

18

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

19

SLEEVE, MAG SIDE - Call your local BRP dealership

420660632

Unavailable

20

SPARK PLUG CABLE, 430 MM, PTO SIDE - Call your local BRP dealership

420664307

Unavailable

21

SLEEVE, PTO SIDE - Call your local BRP dealership

420660630

Unavailable

22

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

23

Spark Plug NGK BR9ECS

415128524

$10.59

24

Tie Rap

420866714

$1.90

25

Tie-Rap

420866716

$1.90
