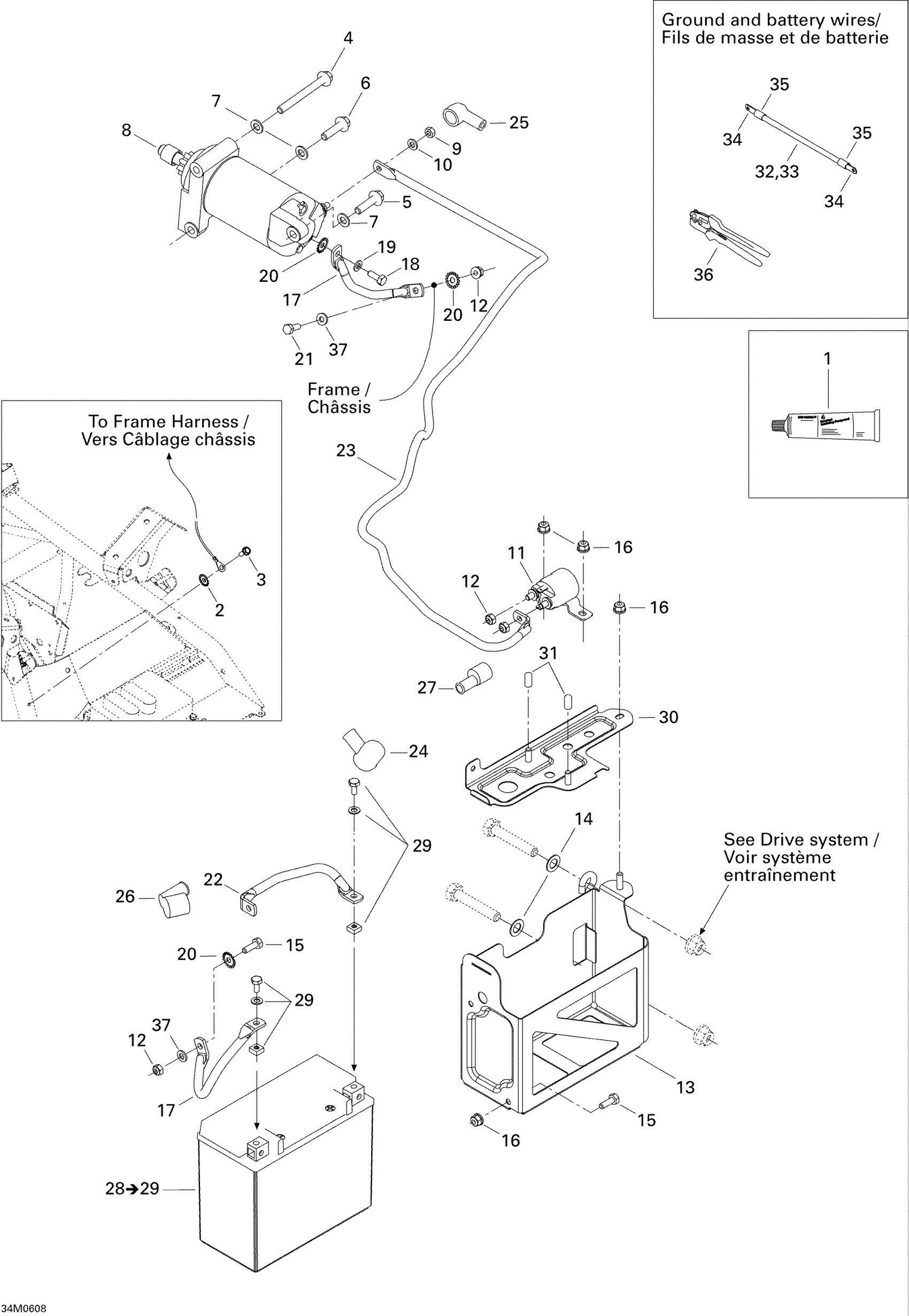

Ski-Doo GTX 600 HO SDI, 2006 10- Battery And Starter Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

3

Hex. Flange Screw M6 X 12

210261250

$1.90

4

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$8.29

5

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

6

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

7

Flat Washer With Teflon 8 mm

250200008

$3.80

8

Electric Starter Ass'y

515176133

$319.49

9

Elastic Stop Nut M6

232561414

$0.55

10

Flat Washer 6 mm

234061410

$1.36

11

Starter Relay

515176011

$62.49

12

Elastic Stop Nut M6

232561414

$0.55

13

Battery Support Black

515176230

Unavailable

14

Washer

503175800

$3.28

15

Hex. Screw M6 X 18

207161844

$0.76

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Ground Wire

515175749

$20.99

18

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

19

Flat Washer 6 mm

234061410

$1.36

20

Lock Washer Serrated M6

250200041

$1.15

21

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

22

Battery Wire

515175904

$19.99

23

BATTERY WIRE - Call your local BRP dealership | DELE

515175905

Unavailable

24

Protection Cap

570151000

$21.99

25

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

26

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

27

Protector Cap | XT

515175919

$17.99

28

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

29

Battery Bolt Kit

250000282

$7.29

30

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

31

Cap

515176141

$3.09

32

Ground Cable Battery, no 6, meter)

278001680

Unavailable

33

Cable Battery, no 6, meter)

278001690

Unavailable

34

Terminal 45°, Small Hole

278001682

Unavailable

34

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

34

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

34

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

34

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

34

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

35

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

36

Crimp Plier

529035730

Unavailable

37

Flat Washer 6 mm

234061410

$1.36
