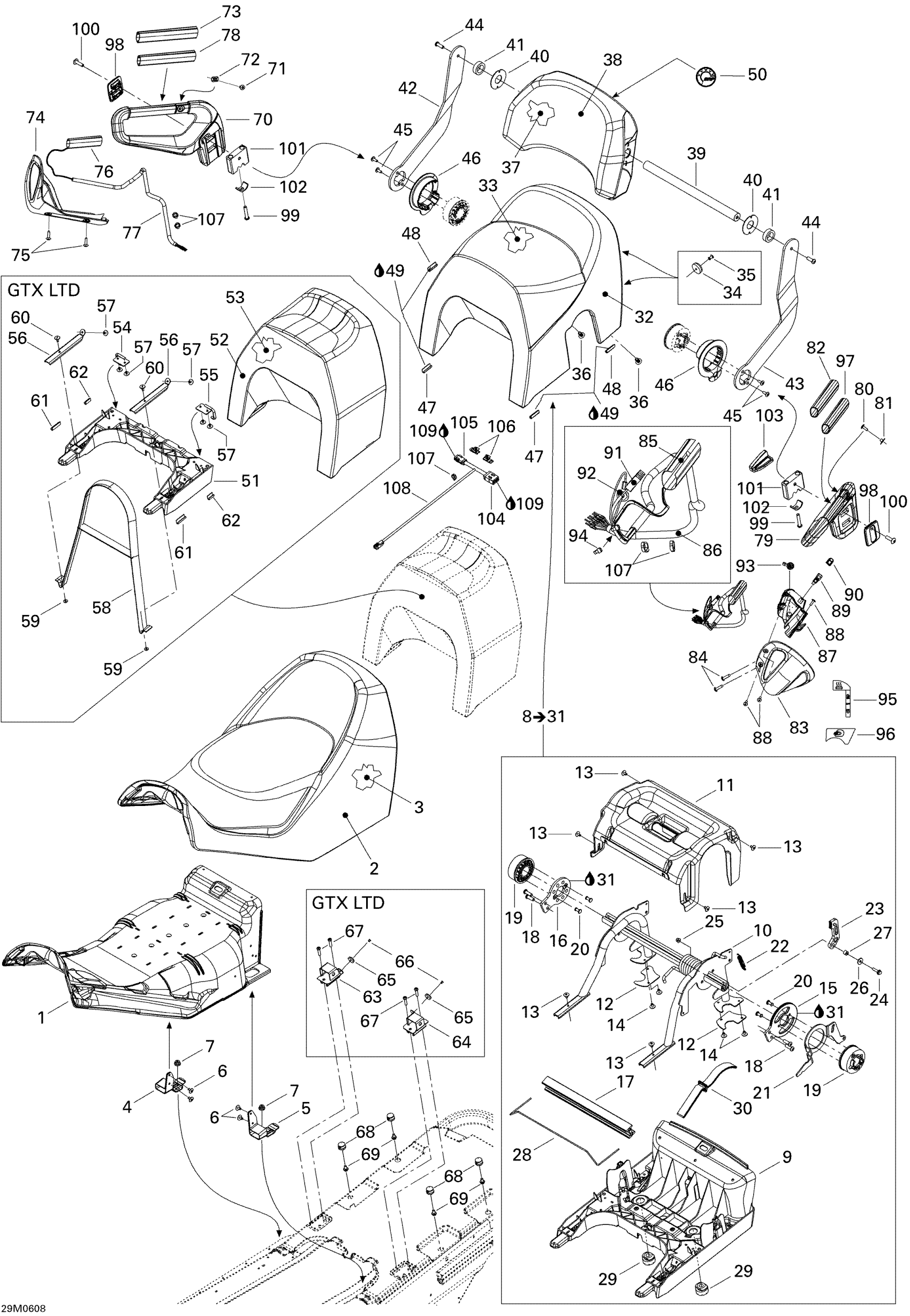

Ski-Doo GTX 600 HO SDI, 2006 09- Seat Diagram

#

Description
Price

1

FRONT SEAT BASE - Call your local BRP dealership

510004353

Unavailable

2

Seat Cover, Earth Grey | LTD, Seashore-Earth Grey Model

510004633

Unavailable

2

SEAT COVER, SLATE GREY - Call your local BRP dealership

510004635

Unavailable

2

SEAT COVER, BLACK - Call your local BRP dealership

510004637

Unavailable

3

FRONT SEAT FOAM - Call your local BRP dealership

510004355

Unavailable

4

RH FIXATION PLATE, BLACK - Call your local BRP dealership

510004463

Unavailable

5

LH FIXATION PLATE, BLACK - Call your local BRP dealership

510004464

Unavailable

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Not Available As Spare Part - Friction Washer

Unavailable

9

SEAT BASE - Call your local BRP dealership

510004433

Unavailable

10

SUPPORT - Call your local BRP dealership

510004381

Unavailable

11

Foam Support

510004423

$38.99

12

WEAR PLATE - Call your local BRP dealership

510004500

Unavailable

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

14

Pop Rivet 3/16”

293150108

$1.19

15

Sprocket

510004391

$29.99

16

LINK PLATE - Call your local BRP dealership

510004393

Unavailable

17

LINK TUBE - Call your local BRP dealership

510005496

Unavailable

18

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

19

SPACER - Call your local BRP dealership

510005425

Unavailable

20

STEEL RIVET - Call your local BRP dealership

293150129

Unavailable

21

HANDLE, BLACK - Call your local BRP dealership

510004385

Unavailable

22

HANDLE SPRING - Call your local BRP dealership

510004395

Unavailable

23

Adjustment Pivot

510006338

$22.49

24

Hex. Flange Screw M6 X 25

207662544

$0.64

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

26

Flat Washer

224061201

$1.37

27

BUSHING - Call your local BRP dealership

510004425

Unavailable

28

ANCHOR SPRING - Call your local BRP dealership

510004421

Unavailable

29

Bumper Rubber

708000760

$10.49

30

BELT - Call your local BRP dealership

510004495

Unavailable

31

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

32

Rear Seat Cover, Earth Grey B-207 | LTD, Seashore-Earth Grey Model

510004357

Unavailable

32

Rear Seat Cover, Slate Grey B-242

510004552

Unavailable

32

REAR SEAT COVER, BLACK B-160 - Call your local BRP dealership

510004555

Unavailable

33

REAR SEAT FOAM - Call your local BRP dealership

510004358

Unavailable

34

Rubber Stopper

415018100

$2.49

35

Pop Rivet 1/8", Black

293150189

$0.27

36

Black Dart

293730010

$0.99

37

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

38

Backrest Cover, Earth Grey | LTD, Seashore-Earth Grey Model

510004641

Unavailable

38

Backrest Cover, Slate Grey

510004643

Unavailable

38

BACKREST COVER, BLACK - Call your local BRP dealership

510004645

Unavailable

39

Upper Backrest Axle

510004377

$44.99

40

Washer

510004379

$10.01

41

Rubber Shim

510004378

$10.99

42

RH ARM, BLACK - Call your local BRP dealership

510004373

Unavailable

43

LH ARM, BLACK - Call your local BRP dealership

510004375

Unavailable

44

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

45

Torx Truss Screw M8 X 16

250000746

$3.38

46

SPACER - Call your local BRP dealership

510004384

Unavailable

47

FRONT SEAT CORNER - Call your local BRP dealership

510004610

Unavailable

48

REAR SEAT CORNER - Call your local BRP dealership

510004611

Unavailable

49

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

50

BRP Logo, Vinyl

219902477

Unavailable

51

CENTRAL SEAT BASE - Call your local BRP dealership

510004435

Unavailable

52

Central Seat Cover, Earth Grey B-207 | LTD, Seashore-Earth Grey Model

510004360

Unavailable

52

Central Seat Cover, Slate Grey B-242

510004561

Unavailable

53

CENTRAL SEAT FOAM - Call your local BRP dealership

510004361

Unavailable

54

RH Rod, Black | LTD

510004458

Unavailable

55

LH Rod, Black | LTD

510004459

Unavailable

56

Reinforcement, Black | LTD

510004527

Unavailable

57

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

58

SEAT BELT - Call your local BRP dealership

510004438

Unavailable

59

Flat Washer

517225900

$0.18

60

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

61

FRONT SEAT CORNER - Call your local BRP dealership

510004610

Unavailable

62

REAR SEAT CORNER - Call your local BRP dealership

510004611

Unavailable

63

RH Fixation Plate, Black

510004439

Unavailable

64

LH Fixation Plate, Black

510004460

Unavailable

65

Rubber Stopper

415018100

$2.49

66

Pop Rivet 1/8", Black

293150189

$0.27

67

Torx Screw M6 X 20

250000722

$1.68

68

SEAT STUD - Call your local BRP dealership

510004676

Unavailable

69

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

70

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

71

Torx Truss Screw M6 X 16

250000721

$1.69

72

Nut Welded, M6

293100003

$9.12

73

Handle Grip

510004449

$12.49

74

RH Deflector

510004415

$27.99

75

Screw 25MM

250000961

$2.59

76

Heater

515176393

$63.99

77

Was 515175506 Tubing

219704426

$142.99

78

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

79

LH Handle

510005862

$126.99

80

Torx Truss Screw M6 X 16

250000721

$1.69

81

Nut Welded, M6

293100003

$9.12

82

Handle Grip

510004449

$12.49

83

LH Deflector

510004416

$27.99

84

Screw 25MM

250000961

$2.59

85

Heater

515176393

$63.99

86

Was 515175506 Tubing

219704426

$142.99

87

SWITCH HOUSING - Call your local BRP dealership

510004457

Unavailable

87

Switch Housing

510004566

$13.18

88

Torx Screw K50 X 16

250000720

$1.69

89

Rocker Switch

510004413

$8.79

90

Switch Protector

510004414

$7.99

91

LH Handle Harness

515176241

$29.99

92

VISOR PLUG HARNESS - Call your local BRP dealership

515176261

Unavailable

93

Cap

572103300

$10.49

94

Tie-Rap 180 mm

414115200

$0.11

95

Handle Heater Decal

516002835

$13.49

96

VISOR DECAL - Call your local BRP dealership

516002836

Unavailable

97

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

98

Passenger Handle Trim

510006602

$13.99

99

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable

100

Hex Torx Truss M8 X30

250000745

$3.17

101

HANDLE LINK - Call your local BRP dealership

510004530

Unavailable

102

HANDLE CLAMP - Call your local BRP dealership

510004565

$16.49

103

GRIP - Call your local BRP dealership

510004419

Unavailable

104

Male Terminal Housing, 8 Circuits

515175817

$8.79

105

Male Housing, 3 Circuits

515175494

$16.18

106

Housing Support

515175283

$9.19

107

Tie-Rap 180 mm

414115200

$0.11

108

SEAT HARNESS - Call your local BRP dealership

515176170

Unavailable

109

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
