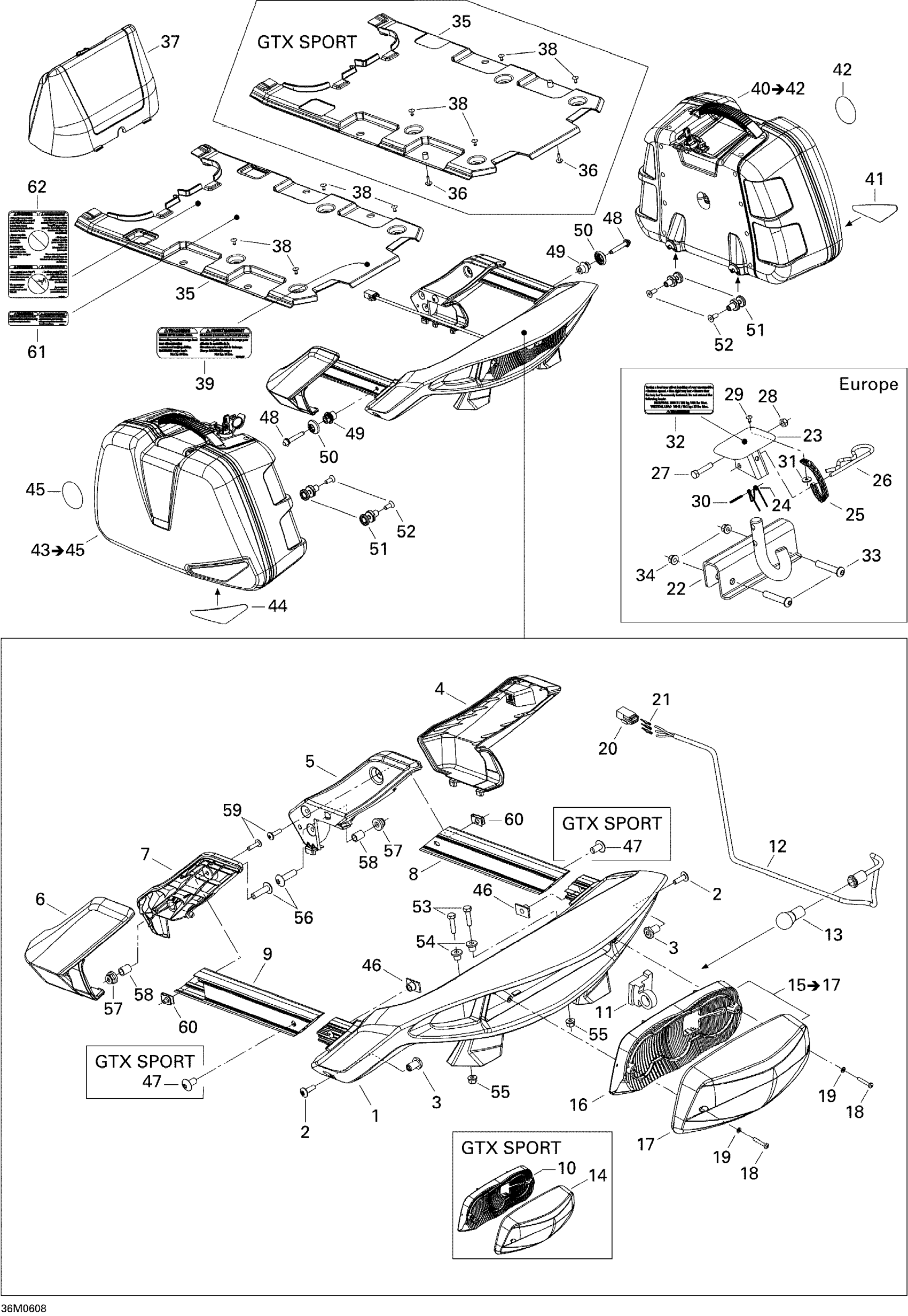

Ski-Doo GTX 600 HO SDI, 2006 09- Luggage Rack Diagram

#

Description
Price

1

RACK - Call your local BRP dealership

511000317

Unavailable

2

Torx Screw M6 X 20

250000722

$1.68

3

INSERT - Call your local BRP dealership

511000398

Unavailable

4

RH OUTSIDE ARM - Call your local BRP dealership

511000322

Unavailable

5

RH INSIDE ARM - Call your local BRP dealership

511000326

Unavailable

6

LH OUTSIDE ARM - Call your local BRP dealership

511000323

Unavailable

7

LH INSIDE ARM - Call your local BRP dealership

511000327

Unavailable

8

RH SIDE BAR - Call your local BRP dealership

511000321

Unavailable

9

LH SIDE BAR - Call your local BRP dealership

511000345

Unavailable

10

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

11

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

12

BULB SOCKET - Call your local BRP dealership | Includes 9 to 10

511000466

Unavailable

13

Bulb

520000758

$9.10

14

Lens

511000315

$36.99

15

Lens And Reflector Kit | LTD

861509300

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

18

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

19

Washer - Call your local BRP dealership

414516400

Unavailable

20

Male Housing, 3 Circuits

515175494

$16.18

21

Male Terminal

515175232

$1.58

22

HITCH, BLACK - Call your local BRP dealership | Europe

511000354

Unavailable

23

Hitch Protector | Europe

517152700

Unavailable

24

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Hair Pin

114045200

$11.11

27

Hex. Screw M6 X 30

207063044

$1.26

28

Elastic Stop Nut M6

232561414

$0.55

29

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

30

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

33

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

34

Hex. Flange Elastic Nut M8

233281414

$1.47

35

RADIATOR COVER - Call your local BRP dealership

511000440

Unavailable

35

Radiator Cover | LTD

511000439

Unavailable

36

Screw M4 X 16

250000725

$3.49

37

Tank Cover

511000357

Unavailable

38

Pop Rivet 3/16"

293150103

$0.55

39

WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership

516002960

Unavailable

40

RH SUITCASE - Call your local BRP dealership | LTD, Includes 35 to 37

511000442

Unavailable

41

REAR REFLECTOR, RED - Call your local BRP dealership

520000237

Unavailable

42

BRP Logo, Vinyl

219902477

Unavailable

43

LH Suitcase | LTD, Includes 38 to 40

511000443

Unavailable

44

REAR REFLECTOR, RED - Call your local BRP dealership

520000237

Unavailable

45

BRP Logo, Vinyl

219902477

Unavailable

46

THREAD INSERT - Call your local BRP dealership

511000341

Unavailable

47

Torx Truss Screw M8 X 16

250000746

$3.38

48

SUITCASE STUD - Call your local BRP dealership | Package SE

511000337

Unavailable

49

STUD NUT - Call your local BRP dealership | Package SE

511000423

Unavailable

50

Rubber Bumper | Package SE

511000358

$56.99

51

SUPPORT ROD - Call your local BRP dealership | LTD

511000338

Unavailable

52

Socket Head Screw M8 X 20, Scotch Grip

205882044

$2.96

53

Hex. Screw M6 X 25

207162544

$1.15

54

FLANGED BUSHING - Call your local BRP dealership

511000340

Unavailable

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

56

Hex Torx Truss M8 X30

250000745

$3.17

57

Hex. Flange Elastic Nut M8

233281414

$1.47

58

BUSHING - Call your local BRP dealership

511000325

Unavailable

59

Torx Screw M5 X 20

250000724

$1.69

60

Panel Nut M5 X 0.8

250000958

$4.23

61

CLENCHING DECAL - Call your local BRP dealership

516003035

Unavailable

62

Seat Decal | LTD

516003036

Unavailable
