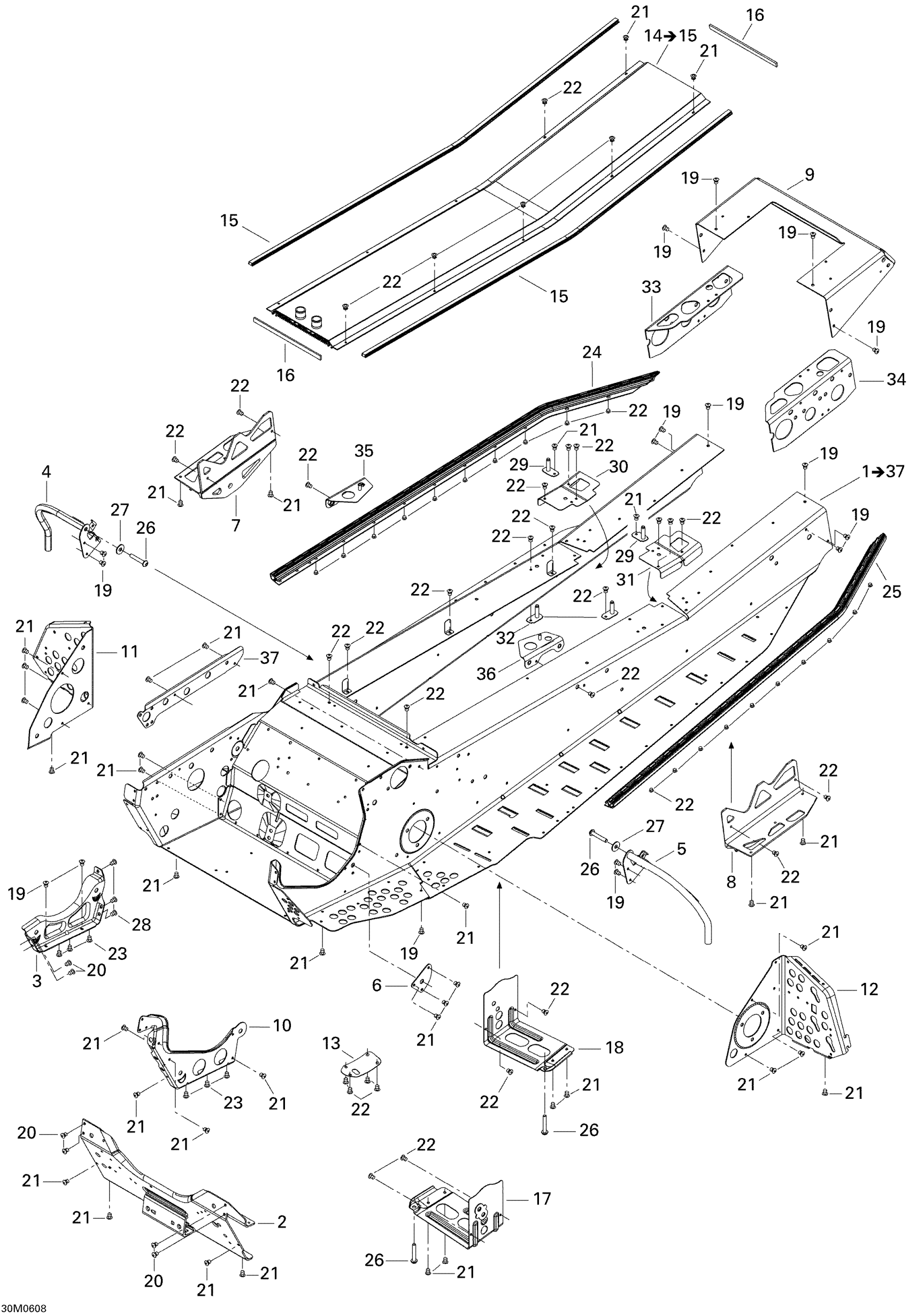

Ski-Doo GTX 600 HO SDI, 2006 09- Frame Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 to 37

415129132

Unavailable

1

Frame Ass'y | Includes 1 to 37, LTD, Seashore-Earth Grey

415129133

Unavailable

1

Frame Ass'y | Includes 1 to 35

415129134

Unavailable

2

FRONT PAN - Call your local BRP dealership

518323239

Unavailable

3

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

Unavailable

4

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

Unavailable

5

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

6

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

Unavailable

7

RH SLIDE BRACKET - Call your local BRP dealership

518324780

Unavailable

8

LH Slide Bracket

518324781

Unavailable

9

Rear Cap

518324410

Unavailable

10

INNER REINFORCEMENT, BLACK - Call your local BRP dealership

518323241

Unavailable

11

RH Footrest Reinforcement

518323805

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

Unavailable

13

PLATE - Call your local BRP dealership

518324169

Unavailable

14

Rear Radiator | Includes 14 to 15

518324245

Unavailable

15

Radiator Protector

518324068

Unavailable

16

GASKET - Call your local BRP dealership | LTD

293200097

Unavailable

17

RH Reinforcement, Black

518324634

Unavailable

18

LH REINFORCEMENT, BLACK - Call your local BRP dealership

518324635

Unavailable

19

Avex Rivet

390909200

$0.30

20

Avex Rivet

390909100

$0.30

21

Pop Rivet 3/16"

390402200

$0.35

22

Pop Rivet 3/16"

390402400

$0.35

23

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

24

RH ROLLER - Call your local BRP dealership

518324957

Unavailable

25

LH ROLLER - Call your local BRP dealership

518324958

Unavailable

26

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

27

Flat Washer 8 mm

234082410

$1.47

28

Hemlock Rivet, 6.5 mm

293150096

$3.27

29

SEAT BRACKET - Call your local BRP dealership

518324384

Unavailable

30

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

Unavailable

31

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

Unavailable

32

Tank Bracket

518322791

Unavailable

33

RH REINFORCEMENT - Call your local BRP dealership

518324959

Unavailable

34

LH Reinforcement

518324960

Unavailable

35

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

Unavailable

36

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

Unavailable

37

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

Unavailable
