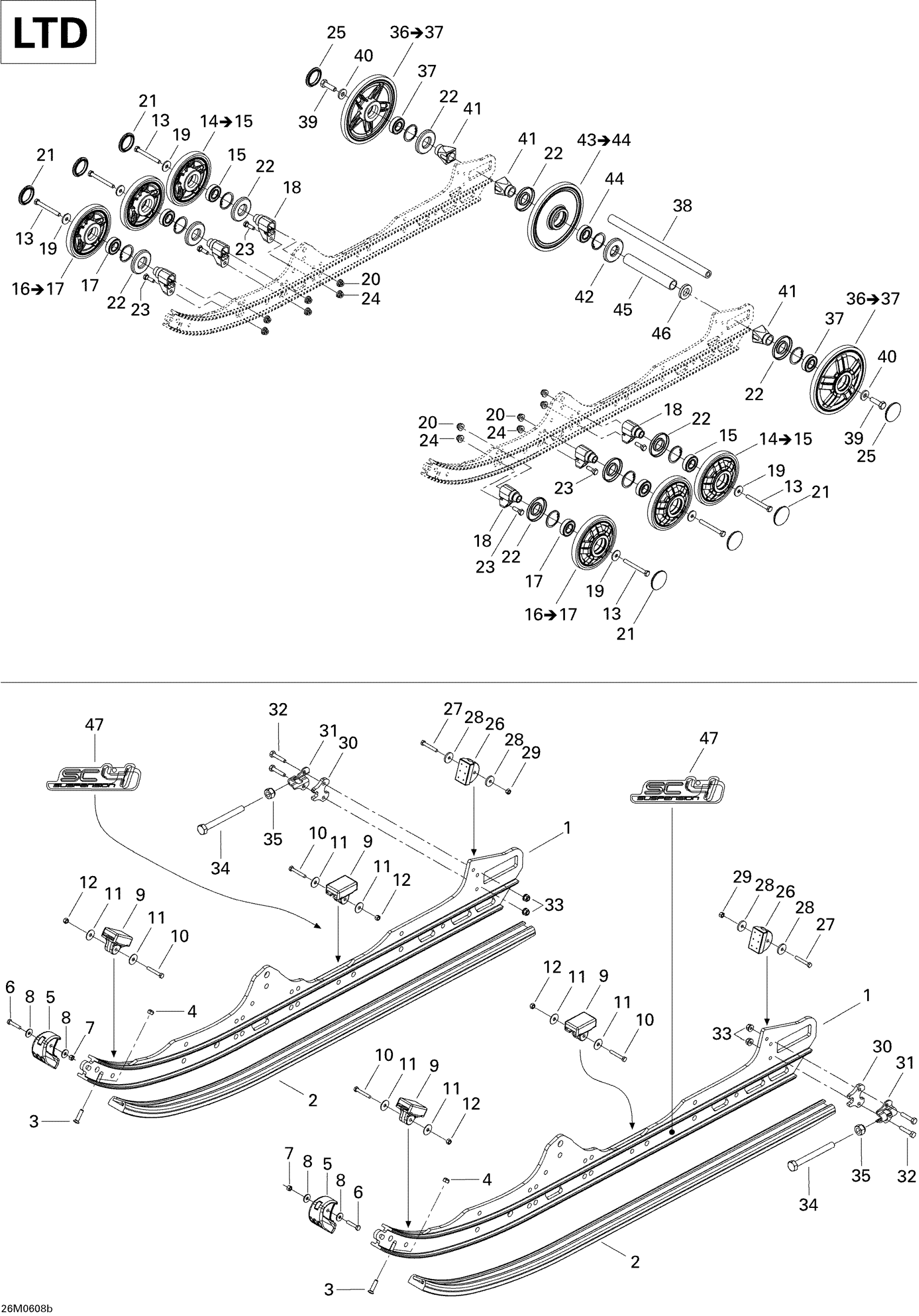

Ski-Doo GTX 600 HO SDI, 2006 08- Rear Suspension LTD Diagram

#

Description
Price

1

RUNNER 136 - Call your local BRP dealership

503191055

Unavailable

2

Slider Shoe, Black

503191087

$29.49

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

Runner Protector

503191137

$11.99

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.87

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$12.99

10

Hex. Screw M5 X 30

207053044

$1.16

11

Washer

250200016

$0.74

12

Elastic Stop Nut M5

232551414

$0.87

13

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

14

WHEEL 147 WITH PATTERN ASS'Y, FULL MOON - Call your local BRP dealership | Includes 15 to 16

503191317

Unavailable

14

Wheel 147 With Pattern Ass'y, Sea-shore | Includes 14 to 15

503191318

Unavailable

14

Wheel 141 With Pattern Ass'y, Full Moon

503191313

$37.99

15

Ball Bearing | Package-STD

503190396

$14.30

16

Wheel 141 With Pattern Ass'y, Full Moon | Includes 16 to 17

503191315

Unavailable

17

Ball Bearing | Package-STD

503190396

$14.30

18

Support

503190580

Unavailable

19

Washer

211200041

$3.17

20

Hex. Flange Elastic Nut M8

233281414

$1.47

21

Wheel Cap

570063600

$3.49

22

Labyrinth Seal

503190434

$6.09

23

Hex. Screw M8 X 25

207182544

$0.90

24

Hex. Flange Elastic Nut M8

233281414

$1.47

25

Wheel Cap

570063600

$3.49

26

Rubber Stopper

503191291

$19.99

27

Hex. Screw M5 X 30

207053044

$1.16

28

Washer

250200016

$0.74

29

Elastic Stop Nut M5

232551414

$0.87

30

Spacer

503193250

$16.49

31

Tensioner

503192583

$8.29

32

Hex. Screw M6 X 30

207063044

$1.26

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

35

Elastic Locking Nut M10 X 1.5

233601416

$1.69

36

WHEEL 180, FULL MOON - Call your local BRP dealership | Includes 34 to 35

503190752

Unavailable

36

Wheel 180 | Includes 36 to 37

503191102

Unavailable

37

Ball Bearing | Package-STD

503190396

$14.30

38

Rear Axle

503190429

$59.99

39

Hex. Screw With Nylon

250000019

$1.69

40

Washer

503190439

$5.93

41

Rear Wheel Spacer

503190428

$8.14

42

Labyrinth Seal

503190682

$6.19

43

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$51.99

44

Ball Bearing | Package-STD

503190396

$14.30

45

Spacer

503196317

$18.49

46

Washer

503190432

$14.22

47

SC4 Decal

516002615

Unavailable
