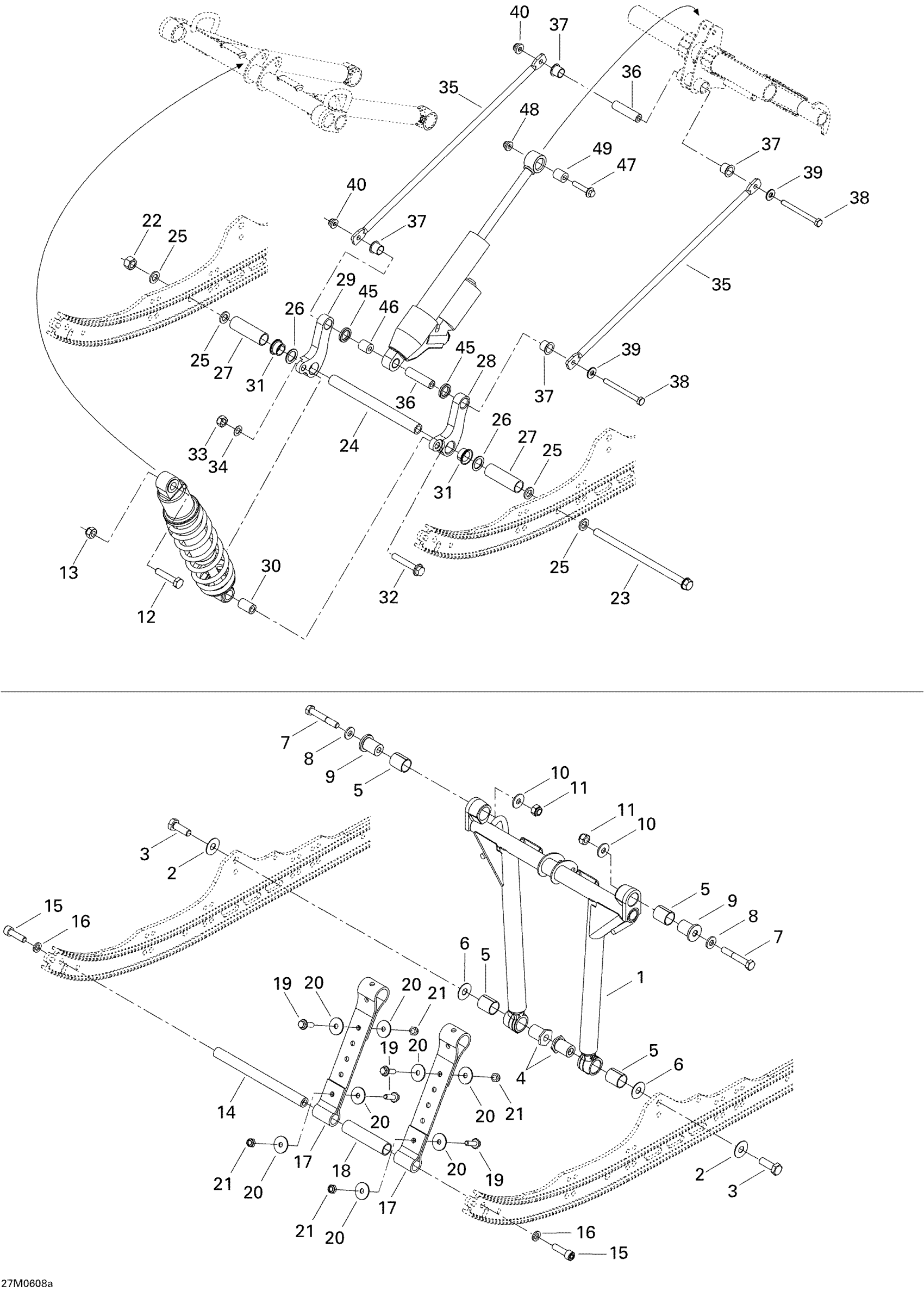

Ski-Doo GTX 600 HO SDI, 2006 08- Front Arm Sport Diagram

#

Description
Price

1

FRONT ARM, BLACK - Call your local BRP dealership

503191266

Unavailable

2

Washer | 7415/7416. 7417/7418.

503189148

$2.85

3

Hex. Cap Screw M12 X 35

250000537

$3.17

4

Lower Axle

503191966

$15.89

5

Bushing

503190974

$12.49

6

Washer

503190656

$2.96

7

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

8

Washer

732900049

$0.58

9

Axle

503190698

$20.99

10

Flat Washer M10 | 4X4

250200014

$1.49

11

Elastic Locking Nut M10 X 1.5

233601416

$1.69

12

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

13

Elastic Stop Nut M10

232500416

$1.90

14

AXLE - Call your local BRP dealership

503189562

Unavailable

15

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

16

Washer

503189564

$0.74

17

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

18

Spacer

503189265

$4.99

19

Hex. Flange Screw M8 X 25

207682544

$1.35

20

Flat Washer

224081301

$0.88

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

Hex. Nut M12

232021416

$4.65

23

HEX. SCREW M12 X 252 - Call your local BRP dealership

250000229

Unavailable

24

CENTER SHAFT - Call your local BRP dealership

503191044

Unavailable

25

Washer | 7415/7416. 7417/7418.

503189148

$2.85

26

WASHER - Call your local BRP dealership

503190697

Unavailable

27

SPACER - Call your local BRP dealership

503190600

Unavailable

28

LH Rocker Arm

503190965

Unavailable

29

RH ROCKER ARM - Call your local BRP dealership

503190966

Unavailable

30

Central Shock Axle

503190604

$14.15

31

CENTRAL ROCKER AXLE CUSHION - Call your local BRP dealership

503190605

Unavailable

32

Hex. Flange Screw M10 X 60

207606044

$3.38

33

Elastic Stop Nut M10

232500416

$1.90

34

Washer

503175800

$3.28

35

THROTTLE ROD - Call your local BRP dealership

503191097

Unavailable

36

Axle Bar (Long)

503190643

$17.39

37

Swivel Bushing

503191555

$7.83

38

Hex. Screw M8 X 90

207089044

$3.48

39

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

40

Hex. Flange Elastic Nut M8

233281414

$1.47

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

45

Plastic Spacer

503190694

$2.11

46

BUSHING - Call your local BRP dealership

503190706

Unavailable

47

Hex. Flange Screw M8 X 40

207684044

$1.48

48

Hex. Flange Elastic Nut M8

233281414

$1.47

49

Bushing

414936000

$13.99
