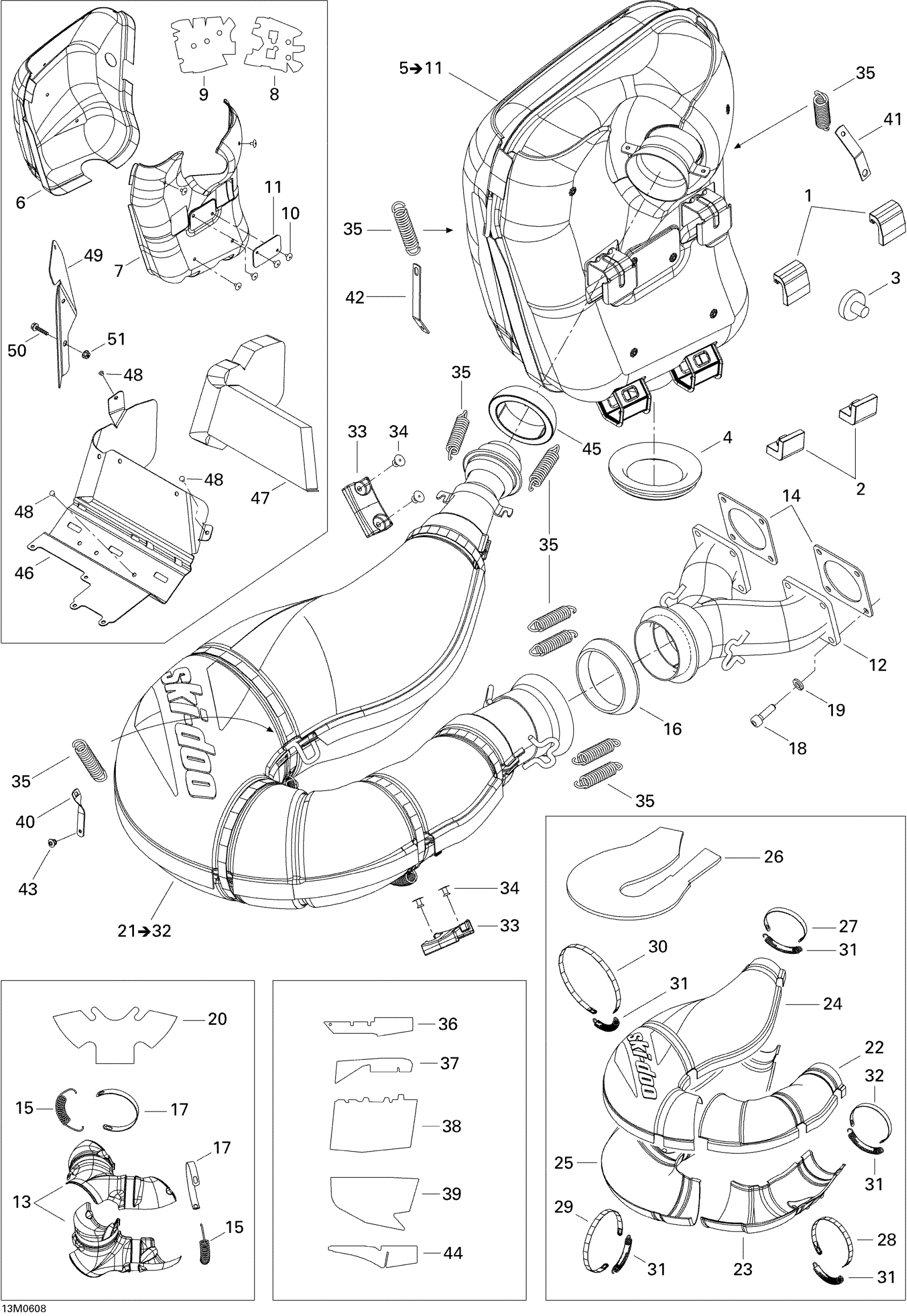

Ski-Doo GTX 600 HO SDI, 2006 Exhaust System Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

Unavailable

2

LOWER STOPPER - Call your local BRP dealership

514054223

Unavailable

3

Exhaust Grommet

514053394

Unavailable

4

Muffler Ass'y | Includes 4 to 11

514054125

Unavailable

5

RH HEAT SHIELD - Call your local BRP dealership

514054126

Unavailable

6

LH Heat Shield

514053585

Unavailable

7

LH INSULATING WOOL - Call your local BRP dealership

514053590

Unavailable

8

RH INSULATING WOOL - Call your local BRP dealership

514053589

Unavailable

9

Pop Rivet 3/16”

390910000

$1.49

10

Reinforcement

514053429

Unavailable

11

LOWER STOPPER - Call your local BRP dealership

514054223

Unavailable

12

EXHAUST MANIFOLD - Call your local BRP dealership

420673072

Unavailable

13

Enveloppe, Exhaust Manifold

514053593

Unavailable

14

Gasket

420850552

$9.09

15

Spring

514053643

$6.49

16

Exhaust Gasket

514053487

$27.99

17

RETAINING STRAP - Call your local BRP dealership

514053603

Unavailable

18

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.89

19

Washer

514053953

$1.49

20

INSULATING WOOL - Call your local BRP dealership

514053588

Unavailable

21

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 23 to 34

514053735

Unavailable

22

Upper Front Half Envelope

514053609

Unavailable

23

Lower Front Half Envelope

514053610

Unavailable

24

UPPER REAR HALF ENVELOPE - Call your local BRP dealership

514053612

Unavailable

25

LOWER REAR HALF ENVELOPE - Call your local BRP dealership

514053613

Unavailable

26

INSULATING WOOL - Call your local BRP dealership

514053584

Unavailable

27

RETAINING STRAP - Call your local BRP dealership

514053437

Unavailable

28

RETAINING STRAP - Call your local BRP dealership

514053500

Unavailable

29

RETAINING STRAP - Call your local BRP dealership

514053534

Unavailable

30

RETAINING STRAP - Call your local BRP dealership

514053535

Unavailable

31

Spring

514053643

$6.49

32

Retaining Strap

514053536

$14.99

33

BUMPER - Call your local BRP dealership

514053352

Unavailable

34

Pop Rivet 3/16"

293150103

$1.49

35

Spring

415107100

$6.49

36

REFLECTIVE SHEET - Call your local BRP dealership

514053560

Unavailable

37

Reflective Sheet

514053622

Unavailable

38

REFLECTIVE SHEET - Call your local BRP dealership

514053954

Unavailable

39

REFLECTIVE SHEET - Call your local BRP dealership

514053562

Unavailable

40

SPRING BRACKET - Call your local BRP dealership

514053955

Unavailable

41

SPRING BRACKET - Call your local BRP dealership

514053725

Unavailable

42

Spring Bracket

514053393

$14.49

43

Pop Rivet 3/16"

293150103

$1.49

44

REFLECTIVE SHEET - Call your local BRP dealership

514053673

Unavailable

45

Exhaust Gasket

514053812

$26.99

46

Acoustic Plate

514053968

Unavailable

47

ACOUSTIC FOAM - Call your local BRP dealership

514053967

Unavailable

48

Pop Rivet 3/16"

390402200

$1.49

49

HEAT DEFLECTOR - Call your local BRP dealership

514053876

Unavailable

50

Hex. Flange Screw M6 X 20

207662044

$2.09

51

Elastic Stop Nut M6

232561414

$1.78
