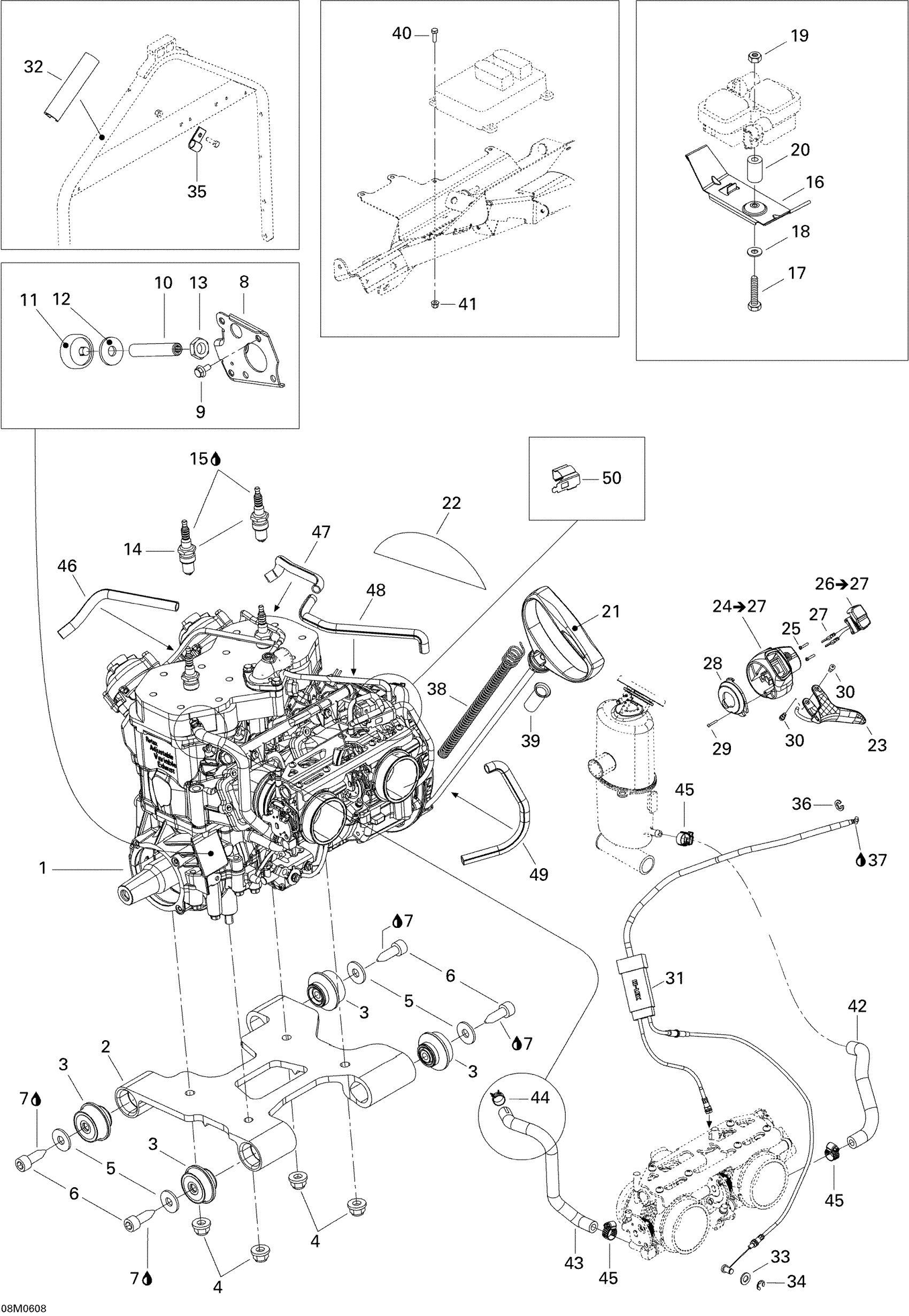

Ski-Doo GTX 600 HO SDI, 2006 01- Engine And Engine Support Diagram

#

Description
Price

1

Engine 593 HO SDI

400509768

Unavailable

2

Engine Support Ass'y | Includes 2 to 4

512060050

Unavailable

3

Rubber Mount

512059691

$47.99

4

Hex. Flange Elastic Nut M10

233201414

$1.58

5

Flat Washer M10 | 4X4

250200014

$1.49

6

Socket Head Screw M10 X 25

205002544

$1.48

7

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

8

PLATE - Call your local BRP dealership

512059840

Unavailable

9

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

10

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

11

STOPPER - Call your local BRP dealership

512059610

Unavailable

12

WASHER - Call your local BRP dealership

512059057

Unavailable

13

Hex. Jam Nut M14

232170411

$1.48

14

Spark Plug NGK BR8ECS

512060029

$10.59

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

COIL SUPPORT - Call your local BRP dealership

512059865

Unavailable

17

Hex. Screw M6 X 45

207064544

$2.11

18

Flat Washer 6 mm

234061410

$1.36

19

Elastic Stop Nut M6

232561414

$0.55

20

SPACER - Call your local BRP dealership

512059812

Unavailable

21

Starter Grip

572084400

$14.83

22

REFLECTIVE SHEET - Call your local BRP dealership

512059893

Unavailable

23

Throttle Handle Ass'y | Includes 13 to 14

512060484

$124.99

24

Housing Throttle Ass'y | Includes 25 to 27

512060121

$38.99

25

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

26

Housing Throttle Ass'y | Includes 25 to 27

512060121

$38.99

27

Male Terminal

515175232

$1.58

28

COVER - Call your local BRP dealership

512059698

Unavailable

29

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

30

Flange Screw

732601143

$4.12

31

THROTTLE CABLE - Call your local BRP dealership

512060086

Unavailable

32

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

33

Flat Washer 8 mm, Nylon

234081100

$1.39

34

Circlip

414753500

$0.71

35

Open Clamp

414176000

$1.99

36

Circlip

414274500

$0.90

37

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

38

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

39

TUBE - Call your local BRP dealership

512059536

Unavailable

40

Hex.Flange Screw M5 X 20

207652044

$1.90

41

Hex. Flange Elastic Nut M5

233251414

$1.04

42

FORMED HOSE - Call your local BRP dealership

512059563

Unavailable

43

HOSE-FORMED - Call your local BRP dealership This part replaces 512059990.

605354601

Unavailable

44

Universal Spring Clamp

513033029

$5.39

45

Tridon Gear Clamp

293650170

$1.99

46

Was 409901700 Tubing (9 mm)

219704399

$84.99

47

Was 409901700 Tubing (9 mm)

219704399

$84.99

48

Was 409901700 Tubing (9 mm)

219704399

$84.99

49

Was 409901700 Tubing (9 mm)

219704399

$84.99

50

Heating Element Bracket

512059809

Unavailable
