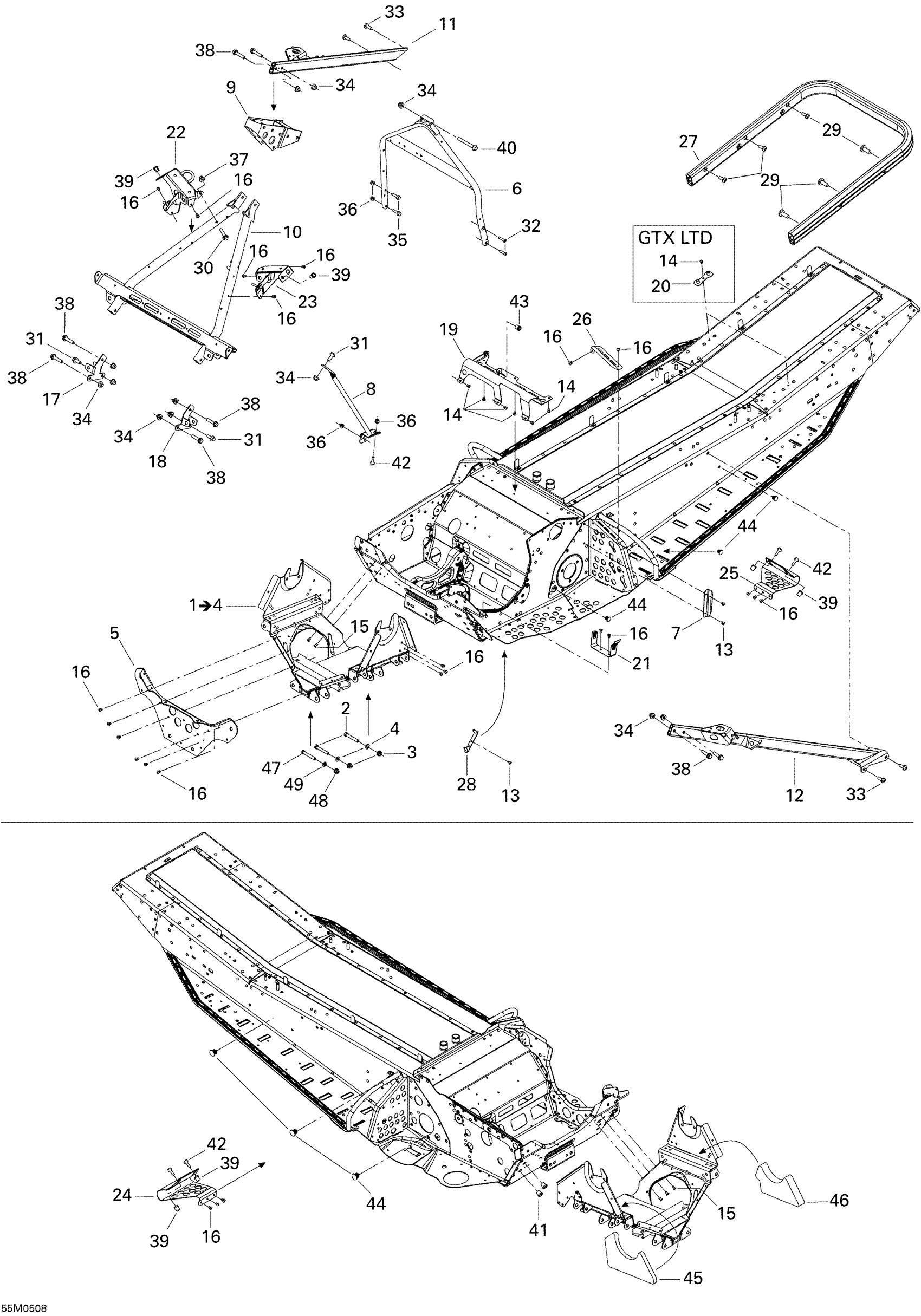

Ski-Doo GTX 600 HO SDI, 2005 09- Frame and Components Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

$529.99

2

Hex. Screw M8 X 55

207085544

$1.68

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Flat Washer 8 mm

234081410

$0.83

5

Front Plate

518324726

Unavailable

6

HANDLE SUPPORT - Call your local BRP dealership

518324505

Unavailable

7

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable

8

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

9

BRACKET BLOCK - Call your local BRP dealership

518323854

Unavailable

10

UPPER CROSS MEMBER - Call your local BRP dealership

518324739

Unavailable

11

RH MEMBER - Call your local BRP dealership

518324182

Unavailable

12

LH Member

518324183

Unavailable

13

Pop Rivet 3/16"

390402200

$0.35

14

Pop Rivet 3/16"

390402400

$0.35

14

Pop Rivet 3/16"

390402400

$0.35

15

Avex Rivet

390909100

$0.30

16

Avex Rivet

390909200

$0.30

17

RH SHOCK BRACKET - Call your local BRP dealership

518322461

Unavailable

18

LH SHOCK BRACKET - Call your local BRP dealership

518322462

Unavailable

19

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

20

REAR SEAT BRACKET - Call your local BRP dealership | LTD

518324613

Unavailable

21

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

Unavailable

22

RH Console Support

518323535

Unavailable

23

LH Console Support

518323536

Unavailable

24

RH TOE HOLD - Call your local BRP dealership

518324391

Unavailable

25

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

26

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

27

Rear Bumper | Europe

518324401

Unavailable

27

Rear Bumper | LTD

518324507

Unavailable

27

Rear Bumper

518324655

Unavailable

27

Rear Bumper | LTD (Europe)

518324656

Unavailable

28

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

29

Hex. Flange Screw M8 X 20

207682044

$1.15

30

Hex. Flange Screw M6 X 35

207063544

$1.37

31

Hex. Flange Screw M8 X 20

207682044

$1.15

32

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

33

Pan Head Torx Screw M8 X 12

250000887

$1.90

34

Hex. Flange Elastic Nut M8

233281414

$1.47

35

Hex. Flange Screw M6 X 25

207662544

$0.64

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

Hex. Flange Screw M8 X 35

207683544

$1.69

39

Insert

293450275

$12.99

40

Hex. Flange Screw M8 X 70

207687044

$7.41

41

Insert

293450166

$4.29

42

Hex. Flange Screw M6 X 20

207662044

$2.00

43

Threaded Insert M6 X 1.0

250100242

Unavailable

44

Panel Fastener

518321954

$7.69

45

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

46

LH FRONT FOAM - Call your local BRP dealership

518323007

Unavailable

47

Hex. Screw M8 X 55

207085544

$1.68

48

Hex. Flange Elastic Nut M8

233281414

$1.47

49

Flat Washer 8 mm

234081410

$0.83
