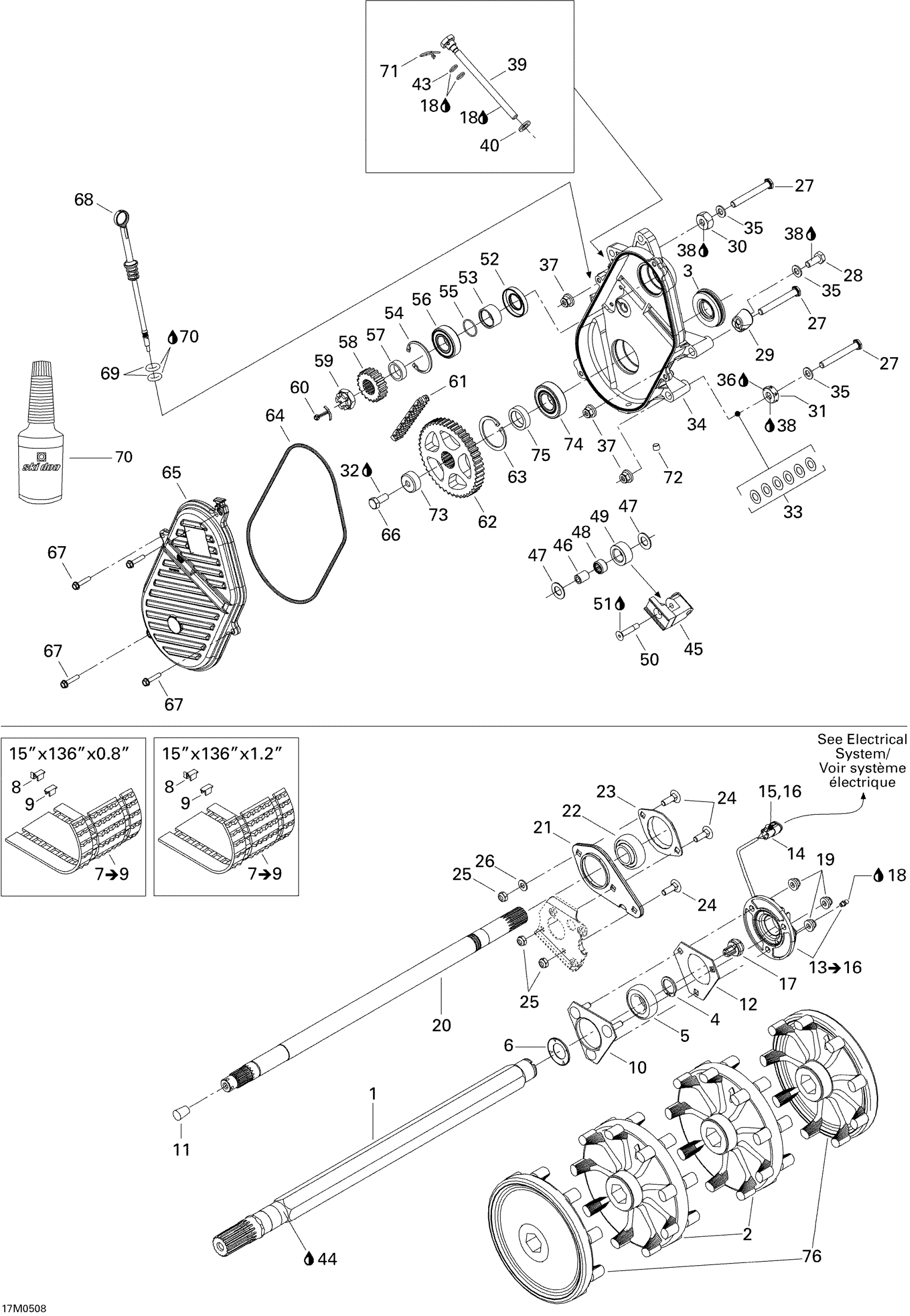

Ski-Doo GTX 600 HO SDI, 2005 05- Drive System Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

SPROCKET, 10 TEETH - Call your local BRP dealership

504152198

Unavailable

3

Oil Seal Ass'y

504151918

$20.49

4

CIRCLIP - Call your local BRP dealership

371910200

$2.09

5

Ball Bearing

293350060

$38.49

6

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

7

Track 15" X 136" X 0.88" Ass'y | Includes 7 to 9, North America This part replaces 504152489.

504152455

$799.99

7

Track 15" X 136" X 1.25" Ass'y | Includes 7 to 9 / GTX SPORT 500 SS (Europe)

504152488

Unavailable

8

Track Guide | Track Width 16''

415129528

$3.29

9

Cleat

504152651

$9.69

10

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

11

CORK - Call your local BRP dealership

414784800

Unavailable

12

FLANGE - Call your local BRP dealership

501025000

Unavailable

13

Rotation Sensor

504152345

$71.99

14

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

15

Female Terminal

278000632

$2.09

16

Female Lock, 3 Circuits

515175676

$5.39

17

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

18

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

COUNTER SHAFT - Call your local BRP dealership

504152018

Unavailable

21

SPACER - Call your local BRP dealership

504151968

Unavailable

22

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

23

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

24

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

25

Hex. Elastic Stop Nut M8

232581414

$0.56

26

Flat Washer 8 mm

234081410

$0.83

27

HEX. SCREW M10 X 80 - Call your local BRP dealership

250000151

Unavailable

28

Hex. Screw M10 X 25

207102544

$1.37

29

Spacer

504152252

Unavailable

30

Spacer

504083800

Unavailable

31

SPACER - Call your local BRP dealership

504152237

Unavailable

32

Loctite 271, 10 ml

293800005

$26.99

33

WASHER - Call your local BRP dealership

504073700

Unavailable

34

Chaincase

504152312

Unavailable

35

Washer

503175800

$3.28

36

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

37

Hex. Flange Elastic Nut M10

233201414

$1.58

38

Loctite 243, 10 ml

293800060

$21.49

39

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

40

Flat Washer 10 mm

234001410

$1.26

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

O-Ring

414484400

$7.51

44

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

45

Chain Tensioner

504151951

Unavailable

46

SPACER - Call your local BRP dealership

504080200

Unavailable

47

WASHER - Call your local BRP dealership

504080300

Unavailable

48

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

49

ROLLER - Call your local BRP dealership

414531300

Unavailable

50

SCREW - Call your local BRP dealership

732601144

Unavailable

51

Loctite 271, 10 ml

293800005

$26.99

52

Oil Seal

293200158

$14.22

53

SPACER - Call your local BRP dealership

507031500

Unavailable

54

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

55

O-RING - Call your local BRP dealership

414876700

Unavailable

56

Ball Bearing

293350115

$12.11

57

SHIM - Call your local BRP dealership

504147200

Unavailable

58

Sprocket, 21 Teeth

504096200

$93.99

59

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

60

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

61

Drive Chain, 74 Links | Except Europe

504151857

$153.49

62

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

63

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

64

O-Ring

415046400

$24.99

65

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

66

Hex. Screw M10 X 25

207102544

$1.37

67

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

68

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

69

O-RING - Call your local BRP dealership

414969400

Unavailable

70

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

71

Hair Pin

414575600

$1.89

72

Plug 1/8”-27

504151921

$4.19

73

CAP - Call your local BRP dealership

504152460

Unavailable

74

Ball Bearing

504152005

$46.49

75

Shim

504152058

Unavailable

76

HALF SPROCKET, 10 TEETH - Call your local BRP dealership

504152199

Unavailable
