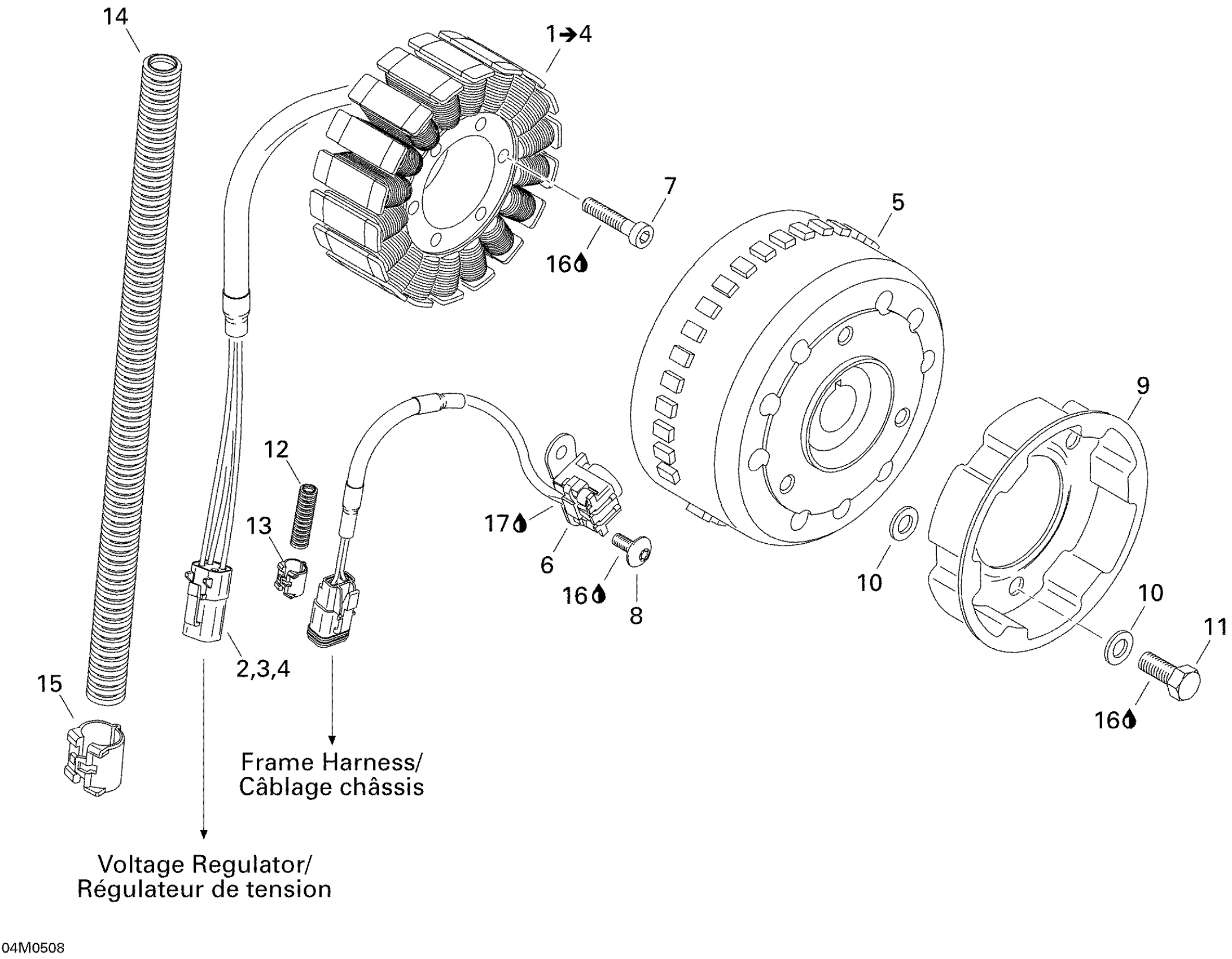

Ski-Doo GTX 600 HO SDI, 2005 03- Magneto Diagram

#

Description
Price

1

STATOR ASS'Y - Call your local BRP dealership

420866068

Unavailable

2

Female Terminal Housing, 4 Circuits

278001473

$26.99

3

Male Terminal

515175568

$9.12

4

Female Lock, 4 Circuits

278001474

$3.49

5

FLYWHEEL - Call your local BRP dealership

420866040

Unavailable

6

Stator Plate A

420889905

$319.49

7

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

420241816

$1.59

8

Torx Screw M6 X 16

420640324

$2.11

9

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$24.99

10

Flat Washer

420827405

$1.69

11

Hex. Screw M8 x 16

207181644

$1.15

12

TUBE - Call your local BRP dealership

420460012

Unavailable

13

CLIP - Call your local BRP dealership

420960890

Unavailable

14

TUBE - Call your local BRP dealership

420660911

Unavailable

15

CLIP - Call your local BRP dealership

420960892

Unavailable

16

Loctite 243, 10 ml

293800060

$21.49

17

Not Available As Spare Part - Friction Washer

Unavailable
