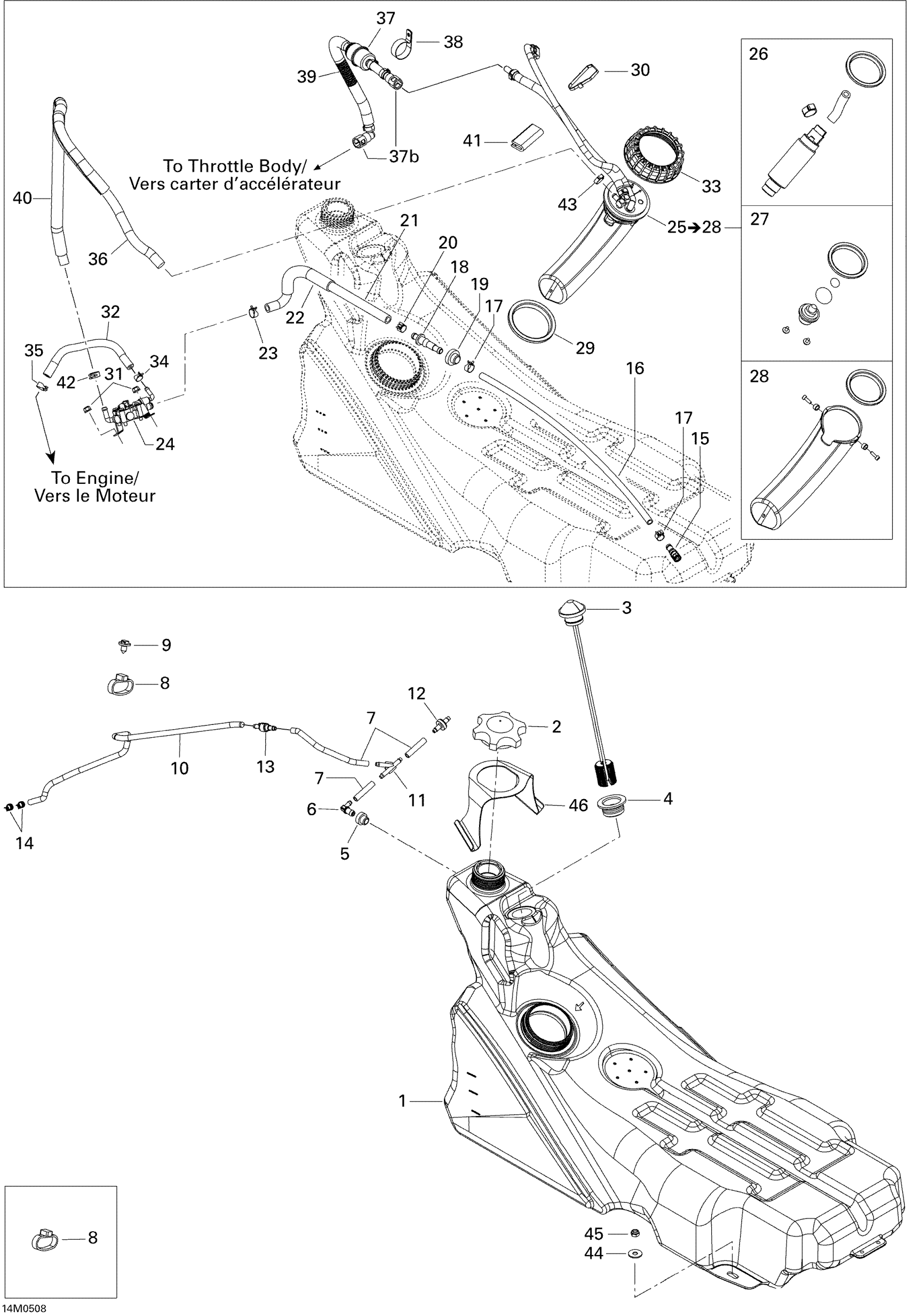

Ski-Doo GTX 600 HO SDI, 2005 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank | GSX Sport

513033093

Unavailable

1

Fuel Tank | GSX LTD

513033119

Unavailable

2

Fuel Tank Cap

513033025

$24.49

3

FUEL GAUGE - Call your local BRP dealership

513033358

$48.99

4

Grommet

293720058

$11.99

5

Grommet

513032908

$10.49

6

Male Connector

414580700

$4.12

7

Polyurethane Hose 10000Mm Long

219704410

$56.99

7

Polyurethane Hose 10000Mm Long

219704410

$56.99

7

Polyurethane Hose 10000Mm Long

219704410

$56.99

8

Tie-Rap 180 mm

414115200

$0.11

9

Mount Dart

293730040

$1.04

10

Polyurethane Hose 10000Mm Long

219704410

$56.99

11

Y-Fitting

293710059

$9.69

12

Check Valve

275500398

$10.99

13

Check Valve

275500505

$31.99

14

Spring Clamp

414554800

$0.88

15

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

16

Hose

513033070

$14.99

17

Norma Spring Clamp

513033010

$9.69

18

Male Connector

414872700

$1.90

19

Grommet | Europe

707800347

$10.49

20

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

21

Formed Hose

513033374

$30.99

22

Tubing 16 Mm 1000Mm Long

219704408

$7.49

23

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

24

Fuel Pump

403901812

$84.99

25

FUEL PUMP MODULE - Call your local BRP dealership | Includes 25 to 27

513033120

Unavailable

26

PUMP KIT - Call your local BRP dealership

861302700

Unavailable

27

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

28

Réservoir Kit

861302800

Unavailable

29

SEAL - Call your local BRP dealership

513033039

Unavailable

30

Tie-Rap 180 mm

414115200

$0.11

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

HOSE - Call your local BRP dealership

513033035

Unavailable

33

Nut, Fuel Pump Module

513033040

$29.99

34

Spring Clamp

414415200

$0.88

35

Universal Spring Clamp

513033029

$5.39

36

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

37

Fuel Filter Ass'y | Includes 44 to 47

513033133

$93.99

38

Open Clamp

513033047

$5.19

39

Tubing 16 Mm 1000Mm Long

219704408

$7.49

40

Tubing 16 Mm 1000Mm Long

219704408

$7.49

41

Was 271000110 Protection Trim

219704353

$15.99

42

Universal Spring Clamp

513033029

$5.39

43

Crimp Clamp, 15.3-706R

293650047

$3.29

44

Flat Washer 8 mm

234082410

$1.47

45

Hex. Elastic Stop Nut M8

232581414

$0.56

46

SUPPORT - Call your local BRP dealership

513033066

Unavailable
