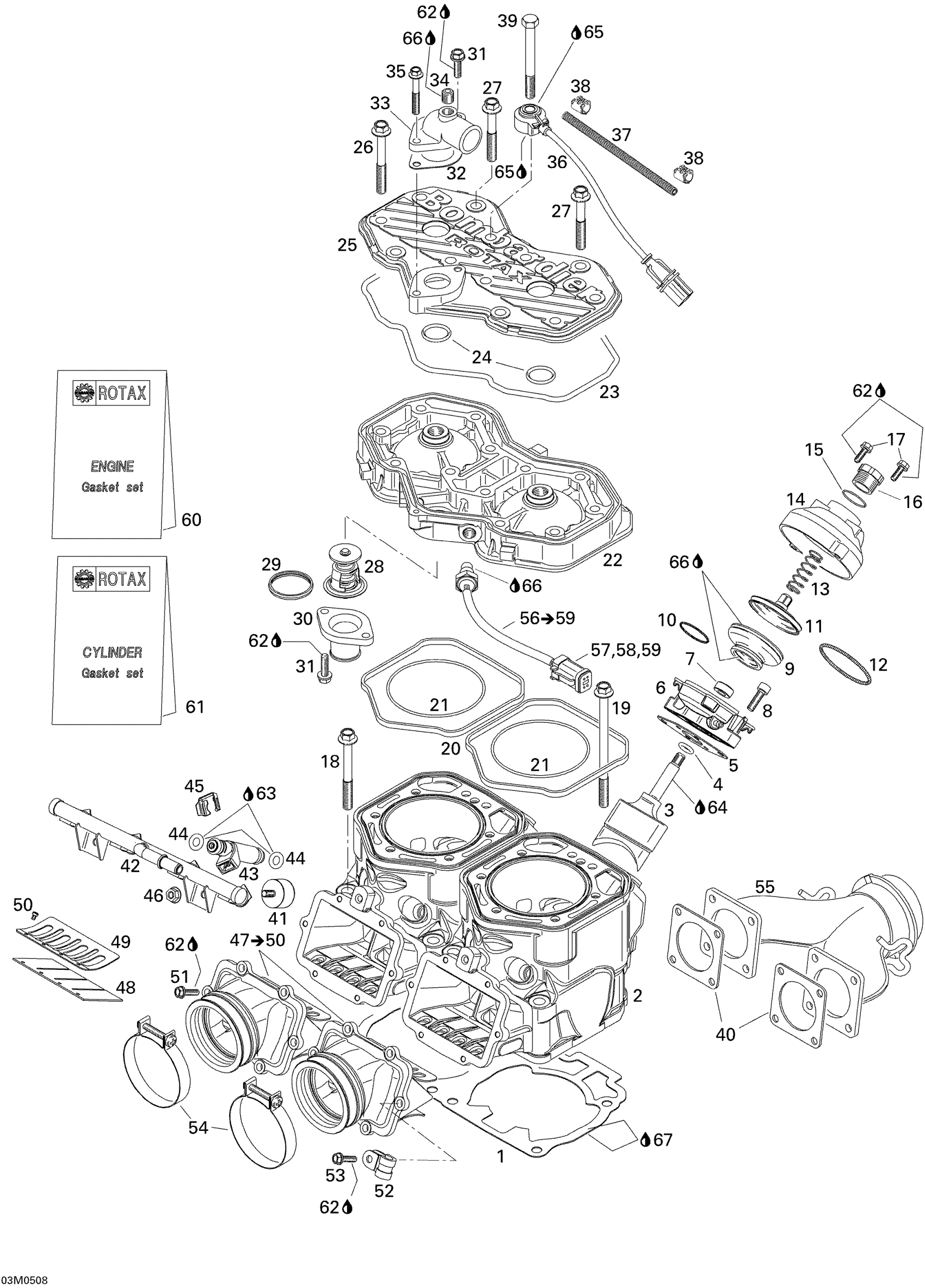

Ski-Doo GTX 600 HO SDI, 2005 01- Cylinder, Exhaust Manifold And Reed Valve Diagram

Gasket 0.5 mm

420431160

$17.53

Gasket 0.6 mm

420431161

$23.49

Gasket 0.7 mm

420431162

$23.49

Double Gasket 0.8 mm

420431163

$23.49

CYLINDER H.O. SDI - Call your local BRP dealership

420613944

Unavailable

REBUILD-CYLINDER NICASIL 593SDI - Call your local BRP dealership

421000624

Unavailable

Exhaust Valve

420854650

$67.99

O-Ring

420430110

$4.44

Gasket

420931542

$7.37

VALVE HOUSING - Call your local BRP dealership

420854454

Unavailable

Oil Seal | Included in gasket kit

420950732

$9.27

Socket Head Screw M6 X 25

205062544

$1.15

Bellows

420260729

$38.99

Hose Spring This part replaces 420838253.

420838255

$7.41

Exhaust Valve This part replaces 290253257.

420854449

$35.99

Hose Spring This part replaces 420239048.

420939281

$7.41

SPRING - Call your local BRP dealership

420239942

Unavailable

Valve Cover This part replaces 420911558.

420911559

$29.49

O-Ring

420430220

$8.26

Adjuster Screw

420241221

$14.22

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.11

Hex. Collar Screw

420640524

$13.16

Hex. Collar Screw

420640534

$14.28

Rubber Ring

420931590

$6.19

O-Ring This part replaces 420850540.

293300026

$3.39

Cylinder Head

420613702

Unavailable

O-Ring This part replaces 290950320.

420950320

$14.28

O-Ring

420430782

$5.39

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

Hex. Screw M8 X 56.5

420941627

$8.57

Thermostat This part replaces 414834100.

420922519

$63.99

Sealing Ring

420931272

$15.89

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

Gasket

420850338

$11.60

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

Hose Nipple

420822340

Unavailable

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

Noise Sensor

270000484

$82.99

TUBE - Call your local BRP dealership

420460010

Unavailable

CLIP - Call your local BRP dealership

420960890

Unavailable

HEX. SCREW M8 X 80 - Call your local BRP dealership

420941221

Unavailable

Gasket

420850552

$8.85

STOPPER - Call your local BRP dealership

420960065

Unavailable

RAIL FUEL - Call your local BRP dealership

420874490

Unavailable

Fuel Injectors

420874485

$238.49

O-Ring

420631220

$14.28

CLIP - Call your local BRP dealership

420851800

Unavailable

NUT - Call your local BRP dealership

420442172

Unavailable

SOCKET CARBURETOR - Call your local BRP dealership | Inclusdes 47 to 50

420867260

Unavailable

Reed Pedal

420924680

$38.99

Reed Pedal Stop

420924695

$15.28

Phillips Screw M3 X 5

420941215

$1.69

Taptite Screw M5 X 16

420941928

Unavailable

Cable Clamp

420851115

Unavailable

Tapping Screw M5 X 22

420841550

$1.69

Clamp

420851065

$14.28

EXHAUST MANIFOLD - Call your local BRP dealership

420673072

Unavailable

Temperature Sensor This part replaces 515176043.

515177835

$92.99

Male Connector, 4 Circuits | CE

278000739

$19.49

Female Terminal

278000632

$2.09

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

Gasket Set, Engine

420889931

$253.99

Gasket Set, Cylinder

420889936

$174.99

Loctite 243, 10 ml

293800060

$21.49

Dow Corning 111, 150 g

413707000

$59.99

Not Available As Spare Part - Friction Washer

Unavailable

Loctite 5910, 300 ml

293800081

$57.99

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99
