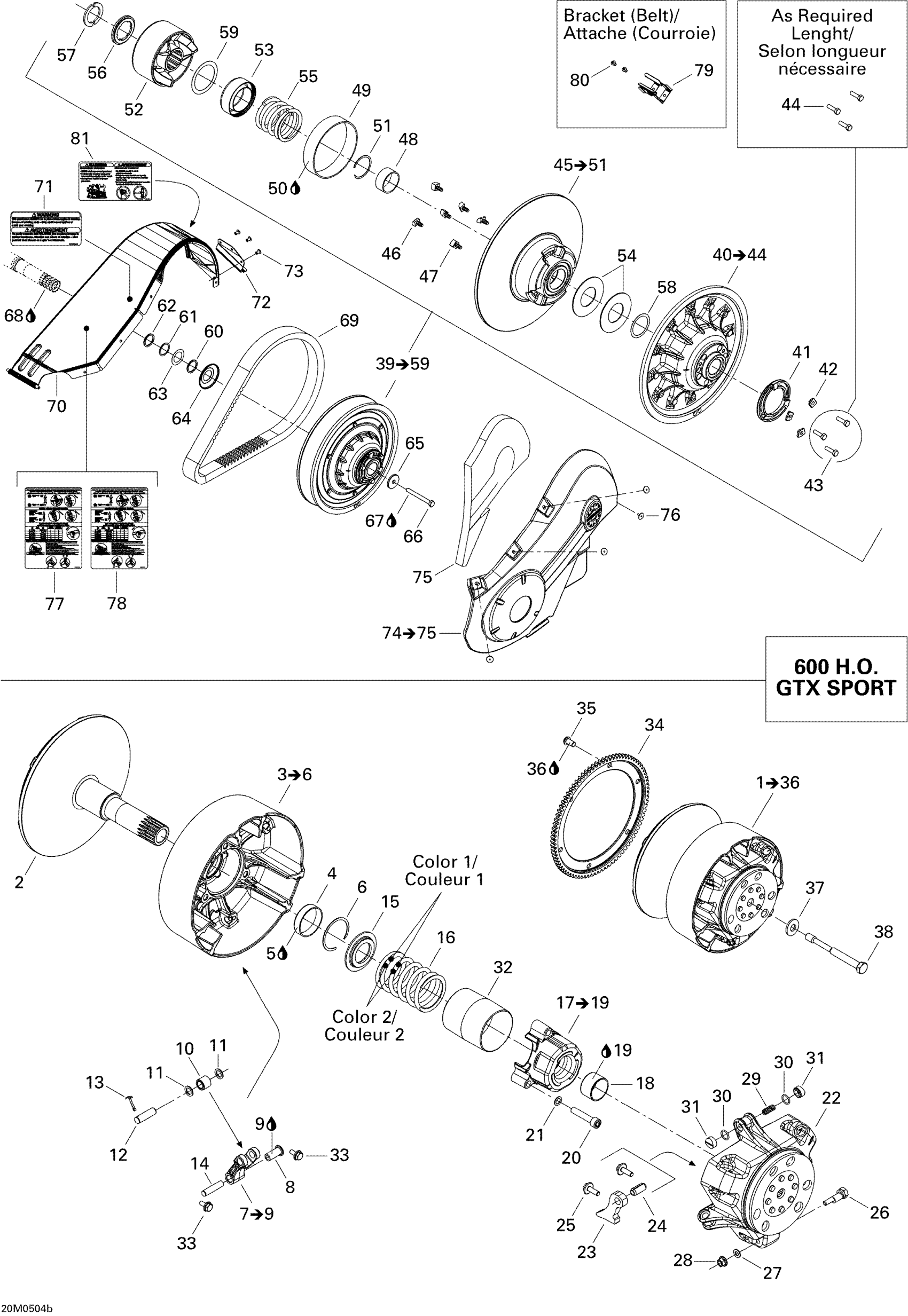

Ski-Doo GTX 600 HO, 2005 05- Driven Pulley 600HO Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$439.99

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

4

Bushing

417222758

$22.49

5

Loctite 609, 10 ml

413703100

$26.99

6

Circlip

293370037

$3.19

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$26.99

10

Roller

417222947

$21.99

11

Stopper Washer

417004302

$15.90

12

Pin

417004308

$13.99

13

Cotter Pin

250400060

$2.00

14

Lever Axle

417223164

$4.49

15

Spring Seat

417222312

$9.59

16

Spring, Violet/blue

415034900

$43.49

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

18

Bushing

417009204

$17.49

19

Loctite 609, 10 ml

413703100

$26.99

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

21

Lock Washer 8 mm

250200009

$2.11

22

Governor Cup

417222213

Unavailable

23

RAMP 410 - Call your local BRP dealership

417222596

Unavailable

24

Spring Pin M10 X 22

250400050

$2.99

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

26

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

27

Washer

417005600

$4.09

28

Hex. Flange Nut M6

233061414

$1.68

29

Spring

417005700

$4.76

30

O-Ring

732401030

$0.98

31

Slider Shoe This part replaces 420460045.

417223021

$5.90

32

Guard

417009205

$21.99

33

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

34

Ens This part replaces 861790500.

861791800

$201.49

35

Hex. Screw M8 X 16

236281684

$4.12

36

Loctite 271, 10 ml

293800005

$26.99

37

Spring Washer 14 mm

250200006

$6.99

38

Drive Pulley Bolt

417120000

$65.49

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Fixed Flange Ass'y | Includes 40 to 44

417126603

Unavailable

41

Adjustment Ring

415005800

Unavailable

42

Adjustment Shim

415005900

Unavailable

43

Hex. Screw M6 X 25

207162544

$1.15

44

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

45

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46

417126909

Unavailable

46

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

47

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

48

Not Available As Spare Part - Friction Washer

Unavailable

49

BUSHING - Call your local BRP dealership

417126902

Unavailable

50

Loctite 609, 10 ml

413703100

$26.99

51

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

52

Cam Ass'y

417126385

Unavailable

53

GUARD - Call your local BRP dealership

417126381

Unavailable

54

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

55

SPRING, BLACK - Call your local BRP dealership

417126687

Unavailable

56

SPACER - Call your local BRP dealership

417126733

Unavailable

57

HALF KEY - Call your local BRP dealership

417126734

Unavailable

58

SHIM - Call your local BRP dealership

504112300

Unavailable

59

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

60

Spacer

417300252

$5.49

61

Spacer

417300265

$2.29

62

Spacer

417300252

$5.49

63

Shim

504112000

$8.59

64

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

65

Strength Washer

517302322

$12.63

66

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

67

Loctite 243, 10 ml

293800060

$21.49

68

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

69

Drive Belt

417300586

$154.99

70

BELT GUARD - Call your local BRP dealership

417300213

Unavailable

71

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

72

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

73

Avex Rivet

390909200

$0.30

74

Side Protector Ass'y | Includes 49 to 50

417300248

Unavailable

75

Foam

417300246

Unavailable

76

Pop Rivet 3/16"

293150103

$0.55

77

Decal, Suspension Adjustment Decal

516001640

Unavailable

78

Not Available As Spare Parts

XXX

Unavailable

79

Bracket

517281905

$18.49

80

Pop Rivet 3/16"

390402200

$0.35

81

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable
