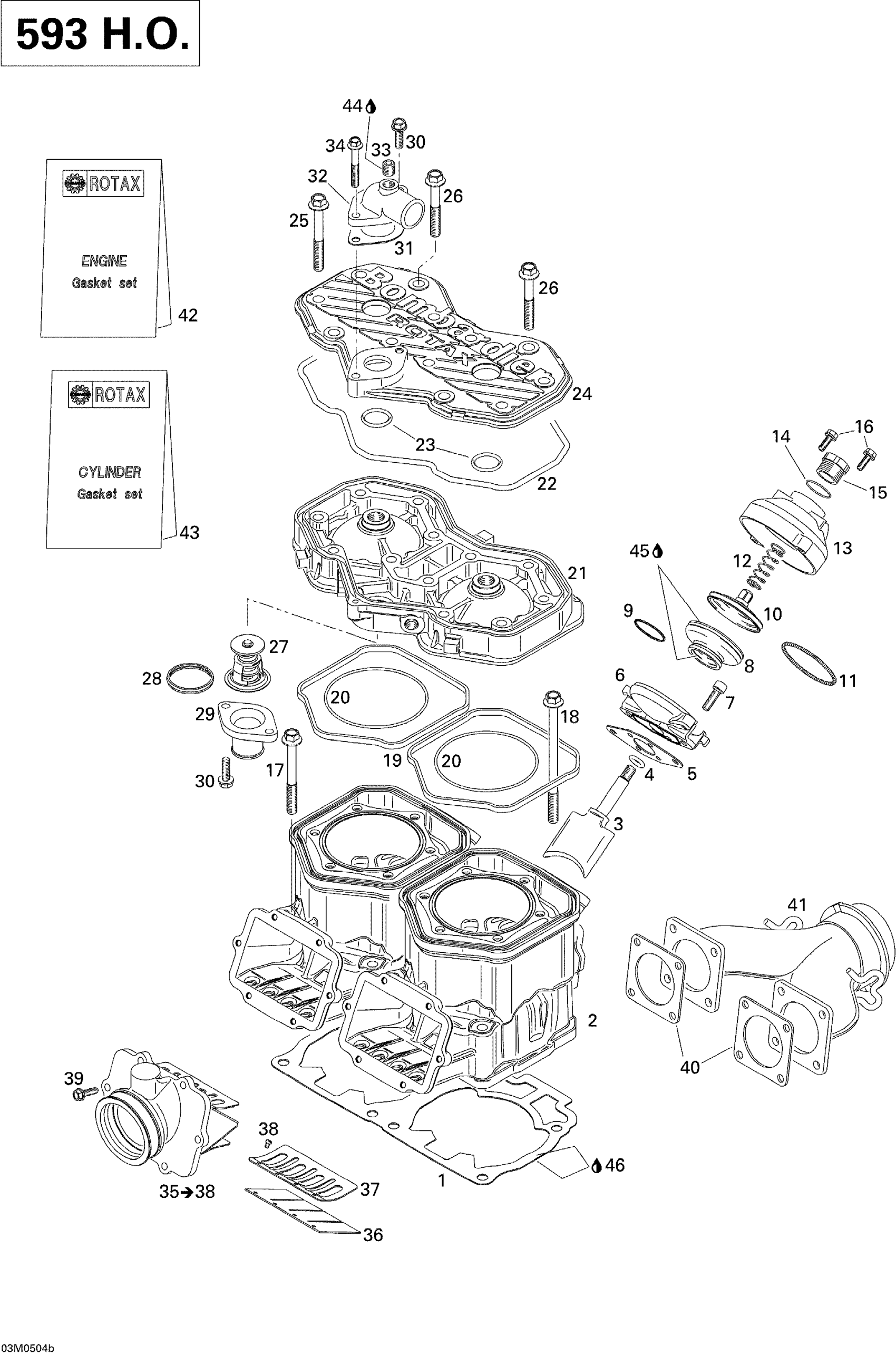

Ski-Doo GTX 600 HO, 2005 01- Cylinder, Exhaust Manifold And Reed Valve 593HO Diagram

#

Description
Price

1

Gasket 0.6 mm

420431161

$23.49

1

Gasket 0.5 mm

420431160

$17.53

1

Gasket 0.7 mm

420431162

$23.49

1

Double Gasket 0.8 mm

420431163

$23.49

2

CYLINDER WITH SLEEVE - Call your local BRP dealership

420613714

Unavailable

3

Exhaust Valve

420854650

$67.99

4

Gasket

420931542

$7.37

5

O-Ring

420430110

$4.44

6

Valve Housing

420854455

$74.49

7

Socket Head Screw M6 X 25

205062544

$1.15

8

Bellows

420260729

$38.99

9

Hose Spring This part replaces 420838253.

420838255

$7.41

10

Exhaust Valve This part replaces 290253257.

420854449

$35.99

11

Hose Spring This part replaces 420239048.

420939281

$7.41

12

Spring This part replaces 420239944.

420239954

$7.51

13

Valve Cover This part replaces 420911558.

420911559

$29.49

14

O-Ring

420430220

$8.26

15

Adjuster Screw

420241221

$14.22

16

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.11

17

Hex. Collar Screw

420640524

$13.16

18

Hex. Collar Screw

420640534

$14.28

19

Rubber Ring

420931590

$6.19

20

O-Ring This part replaces 420850540.

293300026

$3.39

21

CYLINDER HEAD, SILVER - Call your local BRP dealership

420613700

Unavailable

22

O-Ring This part replaces 290950320.

420950320

$14.28

23

O-Ring

420430782

$5.39

24

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

25

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

26

Hex. Screw M8 X 56.5

420941627

$8.57

27

Thermostat This part replaces 414834100.

420922519

$63.99

28

Sealing Ring

420931272

$15.89

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

30

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

31

Gasket

420850338

$11.60

32

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

33

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

34

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

35

Intake Socket Ass'y | Includes 35 to 38

420867879

$360.49

36

Reed Pedal

420924680

$38.99

37

Reed Pedal Stop

420924695

$15.28

38

Phillips Screw M3 X 5

420941215

$1.69

39

Taptite Screw M5 X 16

420941928

Unavailable

40

Gasket

420850552

$8.85

41

EXHAUST MANIFOLD - Call your local BRP dealership

420673072

Unavailable

42

Gasket Set, Engine

420889931

$253.99

43

Gasket Set, Cylinder

420889936

$174.99

44

Loctite 243, 10 ml

293800060

$21.49

45

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

46

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99
