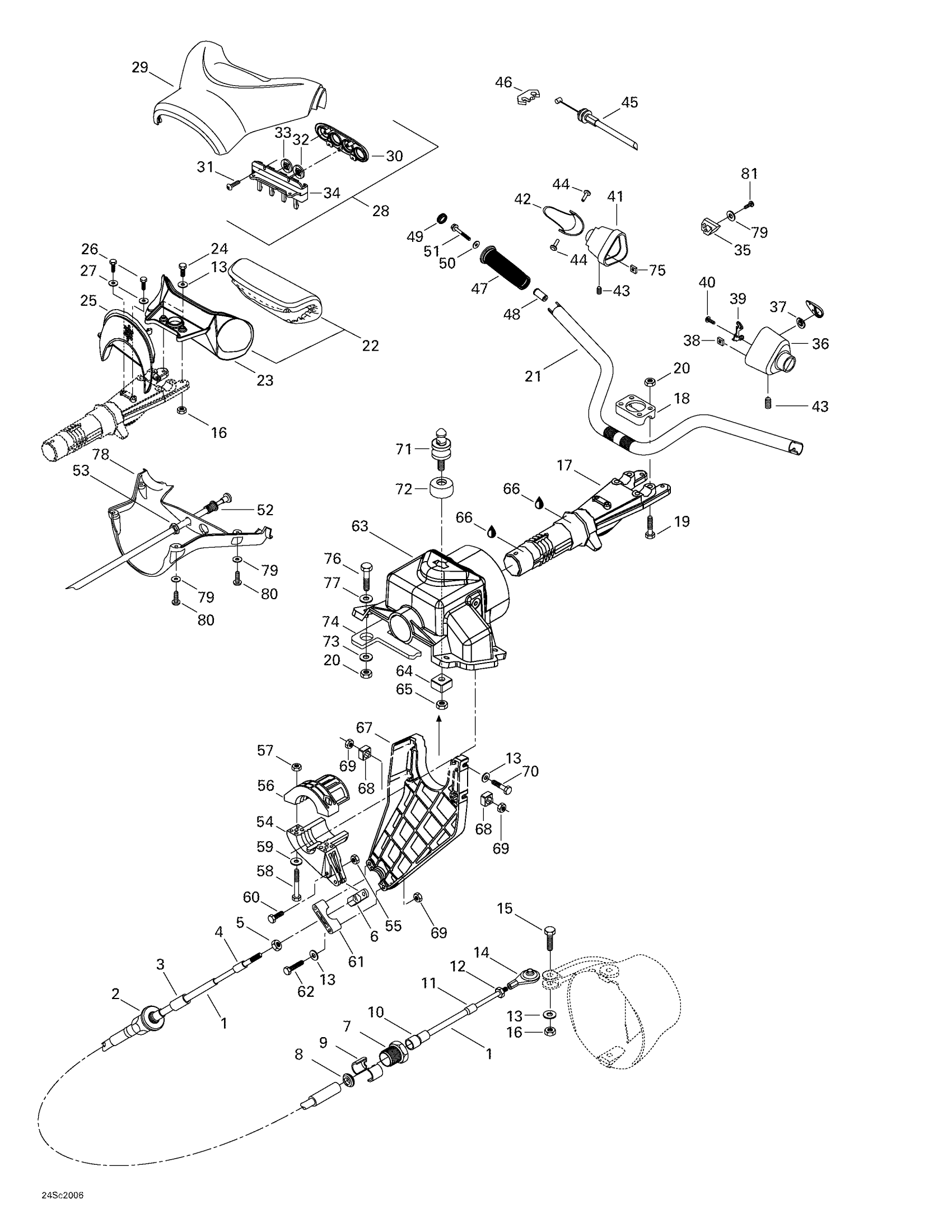

Sea-doo GTX, 5653/5669/5544/5545, 2000 Steering System Diagram

#

Description
Price

1

Steering Cable | Includes 38 to 42

277001580

$201.49

2

Ajustment Knob

277000782

$22.99

3

End Piece

277001583

$14.49

4

Wiper Rod

277001582

$11.11

5

Nut 1/4"-28

211000056

Unavailable

6

Ball Joint

277001180

$35.99

7

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

8

Rubber Washer

293830063

$1.90

9

Half Ring

277001527

$10.37

10

End Piece

277001583

$14.49

11

Wiper Rod

277001582

$11.11

12

Nut 1/4"-28

212100056

Unavailable

13

Stainless Flat Washer M6

234061600

$0.33

14

Ball Joint

277000775

$51.99

15

Hex. Screw M6 X 35

207063560

$2.22

16

Hex. Elastic Stop Nut M6

232561600

$1.15

17

Steering Stem

277000562400

Unavailable

18

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

19

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

20

Hex. Elastic Nut M8

232581600

$1.48

21

Handlebar

277000824

Unavailable

22

Handle Pad | Includes 9 to 10

277000867

Unavailable

23

Handle Bar Pad Support

277000687

Unavailable

24

Hex. Screw M6 X 30

207063060

$1.89

25

PLATE - Call your local BRP dealership

277000549

Unavailable

26

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

27

Flat Washer M6, Stainless

234062600

$0.77

28

Upper Steering Cover Ass’Y | LE, Includes 32 to 37

277000753

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

RETAINER PLATE - Call your local BRP dealership | LE

277000688

Unavailable

31

Screw K40 X 10

241140060

$1.48

32

Mode Knob | LE

293000079

Unavailable

33

«Set» Knob | LE

293000080

Unavailable

34

Switch Support | LE

277000563

Unavailable

35

INSERT - Call your local BRP dealership

293450153

Unavailable

36

LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 14 to 16

277000869

Unavailable

37

Switch Knob

277000306

Unavailable

38

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

39

Retainer Plate

277000845

Unavailable

40

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

41

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

42

Throttle Handle

277000214

Unavailable

43

Socket Head Screw M6 X 16

250000036

$9.00

44

PIN - Call your local BRP dealership

277000381

Unavailable

45

THROTTLE CABLE - Call your local BRP dealership

277000892

Unavailable

46

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

47

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Black, Cap

277000203

$9.39

50

Flat Washer M6, Stainless

234062600

$0.77

51

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

52

CHOKE CABLE - Call your local BRP dealership | Includes 50 - 51.

270000383

Unavailable

53

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

54

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

55

Hex. Elastic Stop Nut M6

232561600

$1.15

56

Arm Thrust | Includes 43 to 44

277000519

Unavailable

57

Hex. Elastic Stop Nut M6

232561600

$1.15

58

Hex. Screw M6 X 25

207162560

$1.47

59

Flat Washer M6, Stainless

234062600

$0.77

60

Hex. Screw M6 X 30

211000081

$3.59

61

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

62

Hex. Screw M6 X 50

207065060

$2.22

63

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

64

Nut Housing Ass’Y | Includes 64 to 65

271001115

Unavailable

65

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

66

Synthetic Grease, 400 G

293550010

Unavailable

67

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

68

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

69

Hex. Elastic Stop Nut M6

232561600

$1.15

70

Hex. Forming Screw M6 X 20

207162060

$1.29

71

Latch Stud

291001420

Unavailable

72

RUBBER PAD - Call your local BRP dealership

293830078

Unavailable

73

Flat Washer 8 mm, Stainless

234082600

$2.43

74

GASKET - Call your local BRP dealership

293250171

Unavailable

75

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

76

Hex. Screw M8 X 35

207083560

$1.47

77

Stainless, Flat Washer 8 mm

234081600

$0.55

78

LOWER STEERING COVER - Call your local BRP dealership

277000625

Unavailable

79

Flat Washer M5, Stainless

234051600

$0.77

80

Hex. Flange Screw K40 X 16

241141660

$1.48

81

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable
