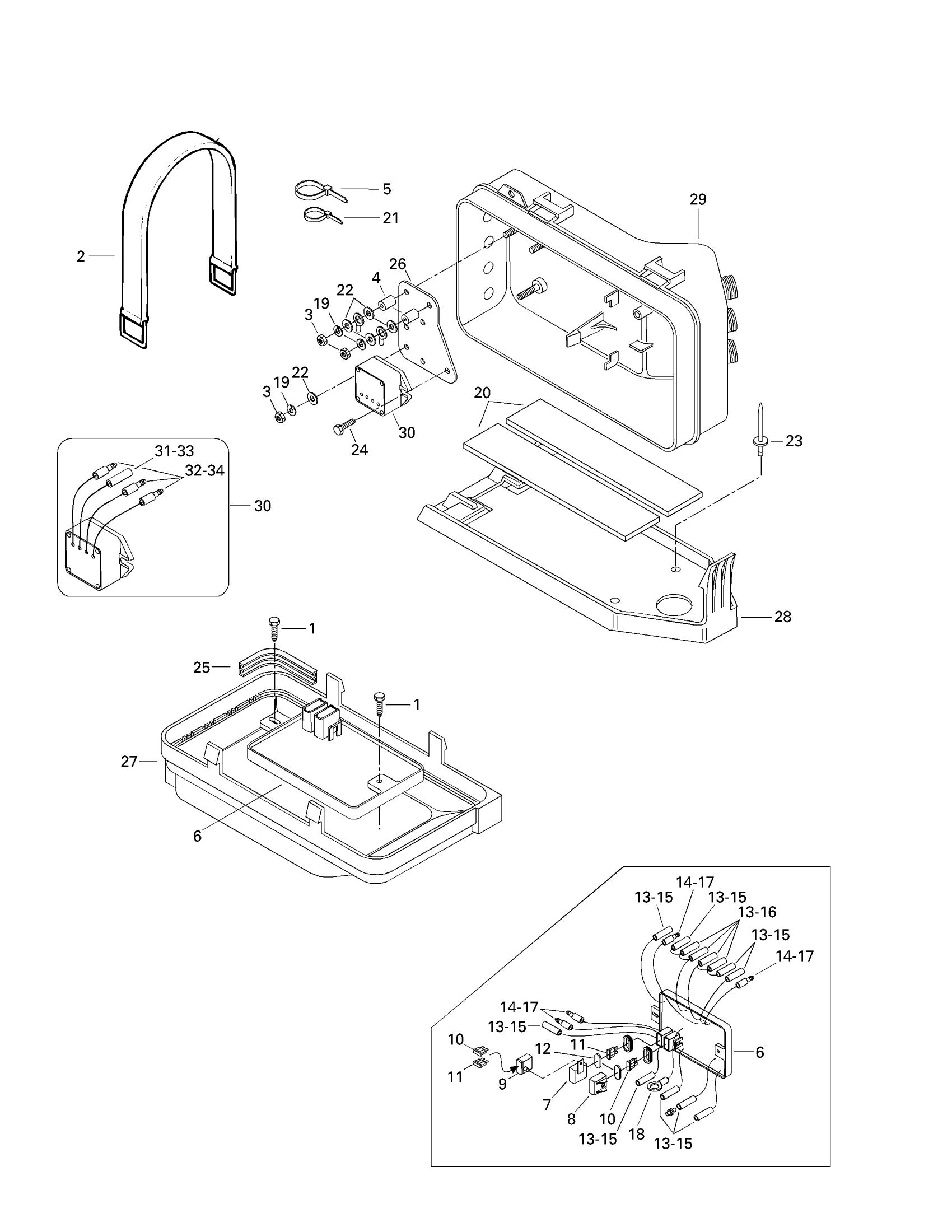

Sea-doo GTX, 5642, 1997 Electrical System Diagram

#

Description
Price

1

Hex. Screw M6.3 x 16

211000012

Unavailable

2

Retainer Strap

293850097

$11.64

3

Hex. Nut M6

232061600

$1.15

4

Spacer

278000644

Unavailable

5

Tie Wrap 142 mm

293750002

$1.25

6

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 6 - 18.

278001133

Unavailable

7

Fuse Holder Cap

278001326

$7.69

8

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

9

Fuse Holder

278000379

Unavailable

10

Fuse, 5 Amperes | CE

278000344

$3.28

11

Fuse, 15 Amperes

278000343

$3.28

12

Cushion

278000805

$3.28

13

Female Terminal | DS 650 X

278001009

$3.19

14

Male Terminal

278000230

$4.39

15

Insulated Sheath

278001007

$3.58

16

Insulated Sheath

278000770

$7.90

17

Insulated Sheath

278001008

$3.28

18

Open Barrel

278000992

$2.21

19

Lock Washer Helical M6

234161601

$1.15

20

Rubber Strip

293830012

Unavailable

21

Tie Wrap 94 mm | 4X4

293750001

$1.03

22

Stainless Flat Washer M6

234061600

$0.33

23

Avdel Rivet 3/16"

293150037

$0.56

24

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

25

Gasket

278000181

Unavailable

26

Mounting Plate

278000615

Unavailable

27

Electric Box Cover

278001082

Unavailable

28

Electric Box Support

278001119

Unavailable

29

Electric Box Base

278001085

Unavailable

30

Rectifier Ass'y | Includes 14 - 18.

278000443

Unavailable

31

Female Terminal | DS 650 X

278001009

$3.19

32

Male Terminal

278000230

$4.39

33

Insulated Sheath

278001007

$3.58

34

Insulated Sheath

278001008

$3.28
