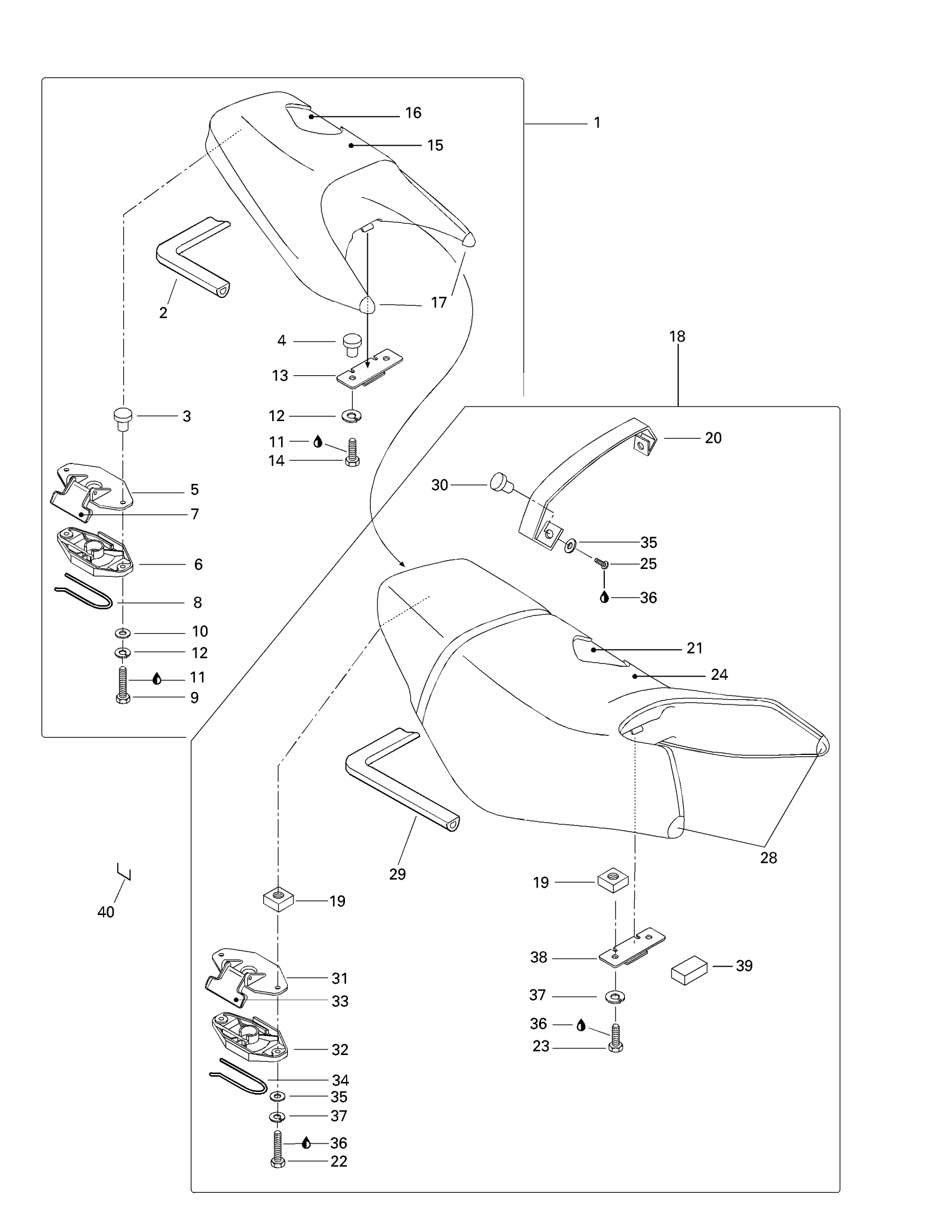

Sea-doo GTX, 5642, 1997 Seat Rear And Front (engine Cover) Diagram

#

Description
Price

1

Rear Seat Ass'y (Green) | Includes 1 - 17.

269000458

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$135.79

3

NUT-T-SHAPE - Call your local BRP dealership

211100038

Unavailable

4

Threaded Insert

211100035

Unavailable

5

Latch Ass'y

269700109

$23.10

6

Latch Ass'y

269700109

$23.10

7

Latch Ass'y

269700109

$23.10

8

Latch Spring

269700017

$8.34

9

Hex. Screw M6 X 35

207163560

$1.34

10

Stainless Flat Washer M6

234061600

$0.28

11

Loctite 243, 10 ml

293800060

$21.49

12

Lock Washer Helical M6

234161601

$1.06

13

Base Keeper

291000174

$17.88

14

Hex. Screw M6 X 16

207161660

$1.40

15

Rear Seat Cover (Green)

269000352

Unavailable

16

Rear Seat Foam

269000353

Unavailable

17

Rear Seat Corner RH

269000392

Unavailable

Rear Seat Corner LH

269000393

Unavailable

18

Front Seat Ass'y (Green) | Includes 18 - 38.

269000354

Unavailable

19

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

20

Strap (Green)

269000357

Unavailable

21

Front Foam

269000358

Unavailable

22

Hex. Screw M6 X 30

207163060

$1.43

23

Hex. Forming Screw M6 X 20

207162060

$1.18

24

Front Seat Cover (Green)

269000356

Unavailable

25

Hex. Screw M6 X 16

207161660

$1.40

26

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

27

Hex. Nut M6

232061600

$1.04

28

SEAT CORNER - Call your local BRP dealership

269000447

Unavailable

29

Was 293200017 Neoprene Seal

219704365

$135.79

30

Nut Welded, M6

293100003

$7.25

31

Latch Ass'y

269700109

$23.10

32

Latch Ass'y

269700109

$23.10

33

Latch Ass'y

269700109

$23.10

34

Latch Spring

269700017

$8.34

35

Stainless Flat Washer M6

234061600

$0.28

36

Loctite 243, 10 ml

293800060

$21.49

37

Lock Washer Helical M6

234161601

$1.06

38

Base Keeper

291000174

$17.88

39

Rubber Stopper

268000446

Unavailable

40

Staple

293730005

Unavailable
