10- Electrical System

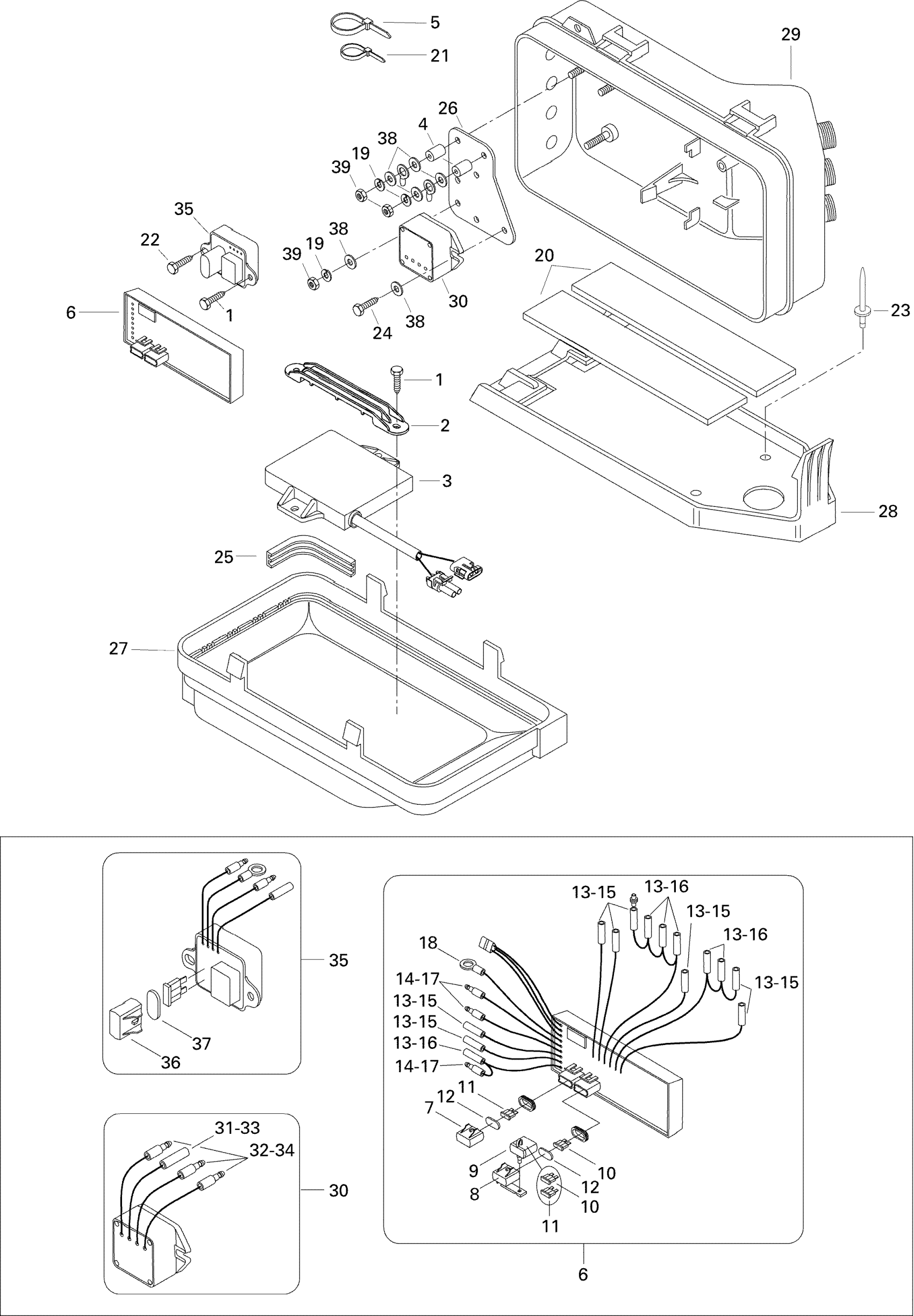

Sea-doo GTX, 5640, 1996 10- Electrical System Diagram
#
1
Hex. Screw M6.3 x 16
211000012
Unavailable
2
Module Support
278000611
Unavailable
3
Electronic Module Ass‘y (Cover)
278000858
Unavailable
4
Spacer
278000644
Unavailable
5
Tie Wrap 142 mm
293750002
$1.25
6
ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 6 to 18
278000897
Unavailable
7
Fuse Holder Cap
278001326
$7.69
8
FUSE CAP - Call your local BRP dealership
278000378
Unavailable
9
Fuse Holder
278000379
Unavailable
10
Fuse, 5 Amperes | CE
278000344
$3.28
11
Fuse, 15 Amperes
278000343
$3.28
12
Cushion
278000805
$3.28
13
Female Terminal | DS 650 X
278001009
$3.19
14
Male Terminal
278000230
$4.39
15
Insulated Sheath
278001007
$3.58
16
Insulated Sheath
278000770
$7.90
17
Insulated Sheath
278001008
$3.28
18
Ring Terminal
278000300
Unavailable
19
Lock Washer Helical M6
234161601
$1.15
20
Rubber Strip
293830012
Unavailable
21
Tie Wrap 94 mm | 4X4
293750001
$1.03
22
Self Tapping Screw M6.3 x 25
215462550
Unavailable
23
Avdel Rivet 3/16"
293150037
$0.56
24
HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership
211000036
Unavailable
25
Gasket
278000181
Unavailable
26
Mounting Plate
278000615
Unavailable
27
Electric Box Cover
278000786
Unavailable
28
Box Support
278000780
Unavailable
29
Electric Box Base
278000781
Unavailable
30
Rectifier Ass'y | Includes 14 - 18.
278000443
Unavailable
31
Female Terminal | DS 650 X
278001009
$3.19
32
Male Terminal
278000230
$4.39
33
Insulated Sheath
278001007
$3.58
34
Insulated Sheath
278001008
$3.28
35
Relay Ass‘y | Includes 35 to 37
278000656
Unavailable
36
FUSE CAP - Call your local BRP dealership
278000378
Unavailable
37
Cushion
278000805
$3.28
38
Stainless Flat Washer M6
234061600
$0.33
39
Hex. Nut M6
232061600
$1.15
