- GTX, 5640, 1996
10- Electrical Box And Battery

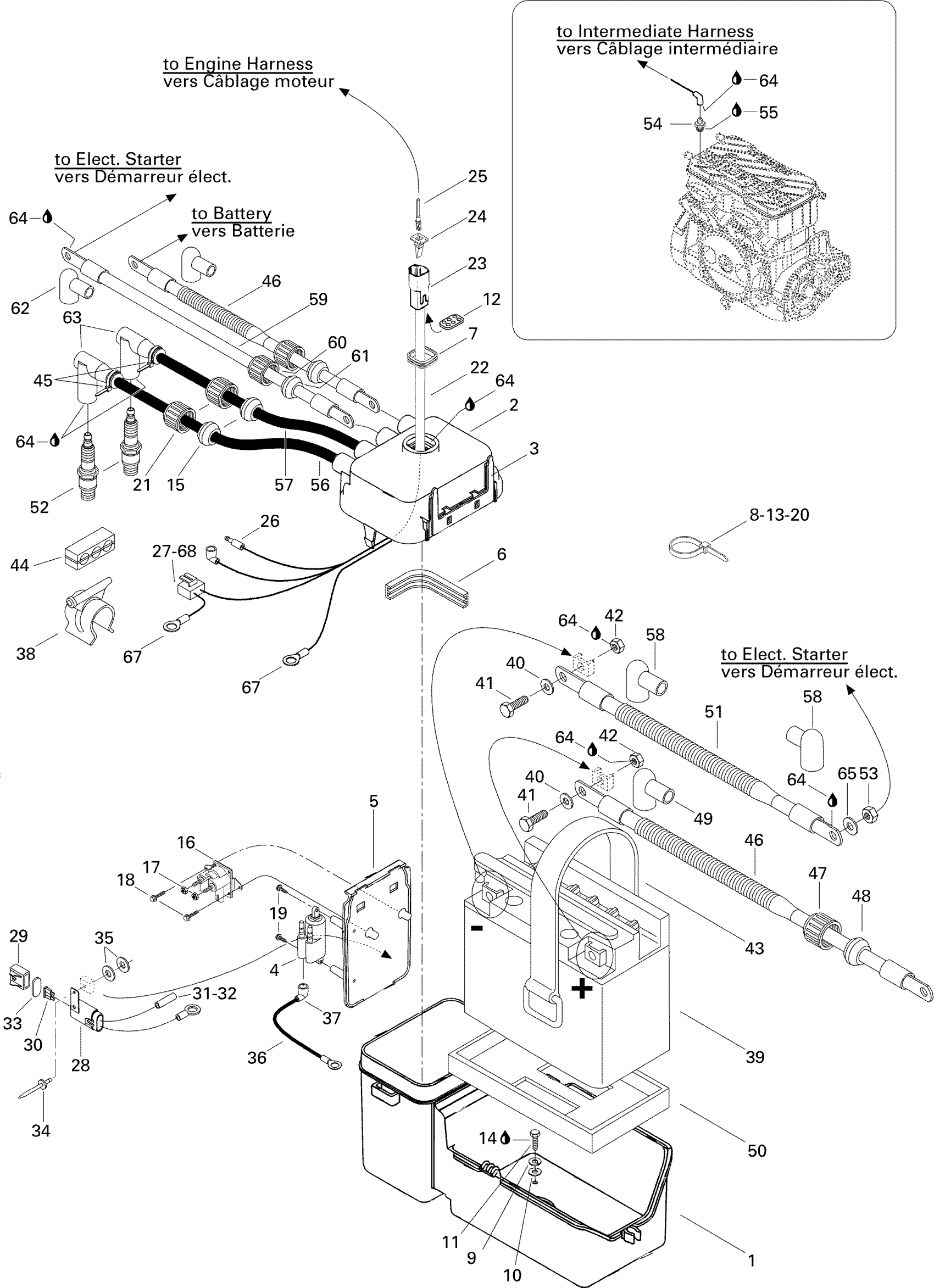

Sea-doo GTX, 5640, 1996 10- Electrical Box And Battery Diagram
#
1
Base | GTI 5641.
278000901
Unavailable
2
Cover | GTI 5641.
278000825
Unavailable
3
Ground Plate
278000732
Unavailable
4
Ignition Coil
278000383
$99.49
5
Mounting Plate
278000826
Unavailable
6
GASKET - Call your local BRP dealership
278000440
Unavailable
7
Gasket
293200030
Unavailable
8
Tie Wrap 142 mm
293750002
$1.25
9
Helical Lock Washer M5
234151601
$1.15
10
Flat Washer 5 mm, Stainless
234052600
$0.77
11
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
12
Sealing Cap
293000052
$3.19
13
Tie-Rap 180 mm
414115200
$0.11
14
Loctite 271, 10 ml
293800005
$26.99
15
Grommet
278000682
Unavailable
16
Starter Relay
278003012
$42.49
17
Hex. Elastic Stop Nut M6
232561600
$1.15
18
Hex. Flange Screw M6 X 10
210261040
$1.48
19
Self Tapping Screw M6.3 x 25
215462550
Unavailable
20
Tie Wrap 94 mm | 4X4
293750001
$1.03
21
Electric Wire Cap
278000100
Unavailable
22
Rear Electric Box Harness | Includes 19 - 27.
278000861
Unavailable
23
Male Terminal Housing, 6 Circuits
710001539
$19.99
24
Female Lock, 6 Circuits
278000735
$3.19
25
Male Terminal
278000631
$4.39
26
Male Terminal
278000230
$4.39
27
Male Connector, 2 Circuits
278001113
$16.86
28
Fuse Harness 15 Amp | Includes 28 - 34.
278000665
Unavailable
29
Fuse Holder Cap
278001326
$7.69
30
Fuse, 15 Amperes
278000343
$3.28
31
Female Terminal | DS 650 X
278001009
$3.19
32
Insulated Sheath
278001007
$3.58
33
Cushion
278000805
$3.28
34
Pop Rivet 3/16"
293150005
$0.52
35
Flat Washer, Emhart
213200016
$0.72
36
Ground Harness | Includes 82 - 84.
278000664
Unavailable
37
FEMALE TERMINAL - Call your local BRP dealership
278000228
Unavailable
38
COLLAR SUPPORT - Call your local BRP dealership
278000559
Unavailable
39
Battery 19A | Includes 5 to 8
278001756
$153.36
40
FLAT WASHER 6 MM - Call your local BRP dealership
211200018
Unavailable
41
Hex. Screw M6 X 16
207161644
$0.74
42
Hex. Nut M6
232061414
$0.53
43
STRAP - Call your local BRP dealership
293850031
Unavailable
44
3 WIRE SUPPORT - Call your local BRP dealership
278000245
Unavailable
45
Tie Wrap 142 mm
293750002
$1.25
46
Engine Harness | RX DI 5591/5592.
278000511
Unavailable
47
Electric Wire Cap
278000100
Unavailable
48
GROMMET - Call your local BRP dealership
278000098
Unavailable
49
PROTECTION CAP - Call your local BRP dealership
278000020
Unavailable
50
Battery Lower Pad
278000776
Unavailable
51
Battery Ground Cable | Includes 93,94
278000973
Unavailable
52
NGK Spark Plug BR8ES This part replaces 278000609.
219703119
$4.23
53
Hex. Elastic Stop Nut M6
232561600
$1.15
54
Temperature Sensor
278000194
Unavailable
55
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
56
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
57
Spark Plug Wire 530 (MAG)
278000322
Unavailable
58
PROTECTION CAP - Call your local BRP dealership
278000020
Unavailable
59
Starter Cable (Red) | Includes 63 - 66.
278000444
Unavailable
60
Electric Wire Cap
278000100
Unavailable
61
GROMMET - Call your local BRP dealership
278000098
Unavailable
62
PROTECTION CAP - Call your local BRP dealership
278000020
Unavailable
63
SPARK PLUG CAP - Call your local BRP dealership
278000237
$16.99
64
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
65
Stainless Flat Washer M6
234061600
$0.33
66
Loctite 243, 10 ml
293800060
$21.49
67
Ring Terminal
278000300
Unavailable
68
Female Terminal
278001114
$3.19
