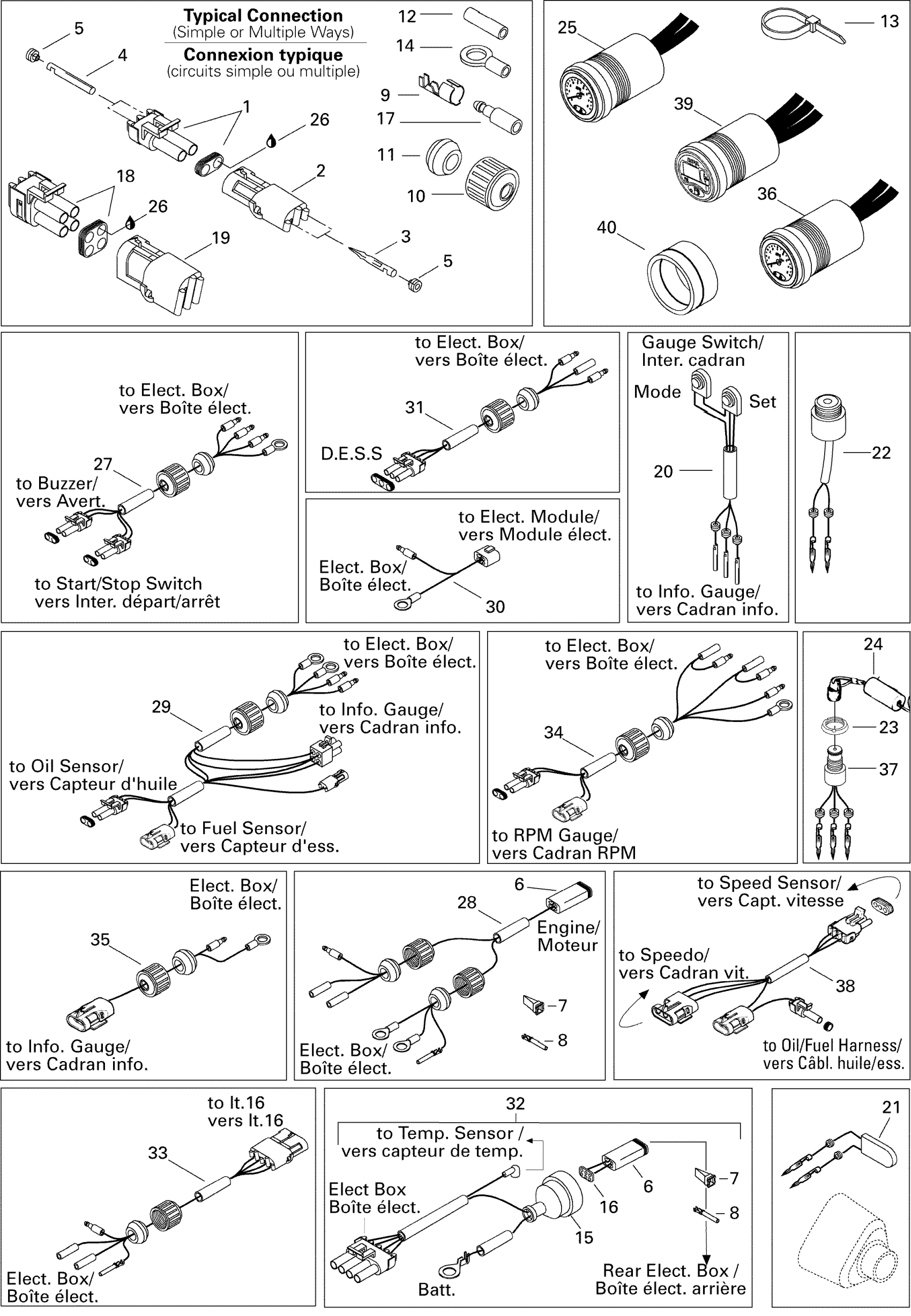

Sea-doo GTX, 5640, 1996 10- Electrical Accessories Diagram
#
1a
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
1b
Male Connector, 2 Circuits
278000220
$15.49
1c
Male Housing, 3 Circuits
278000273
$9.59
1d
Male Housing, 4 Circuits
278000395
$15.99
1e
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000221
Unavailable
2a
Female Housing, 1 Circuit
278000161
$9.59
2b
Female Housing, 2 Circuits
278000217
$9.59
2c
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
2d
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278000394
Unavailable
2e
FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000156
Unavailable
3a
Male Terminal
409004300
$5.61
3b
Male Terminal | XT Models
278000222
$3.19
4a
Female Terminal
409007300
$0.45
4b
Female Terminal
278000223
$3.19
5a
Wire Seal
278000218
$4.39
5b
Wire Seal
278001065
$7.69
6
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
7
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
8
Female Terminal
278000632
$2.09
9
Female Terminal | DS 650 X
278001009
$3.19
10
Electric Wire Cap
278000100
Unavailable
11a
Grommet, 1 Circuit, Blue
293720030
Unavailable
11b
GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership
293720025
Unavailable
11c
GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership
278000193
Unavailable
11d
Grommet
293720034
Unavailable
11e
Grommet, 4 Circuit, Red
570026800
Unavailable
12a
Insulated Sheath
278001007
$3.58
12b
Insulated Sheath
278000770
$7.90
12c
Insulated Sheath
278001008
$3.28
13a
Tie Wrap 94 mm | 4X4
293750001
$1.03
13b
Tie Wrap 142 mm
293750002
$1.25
13c
Tie-Rap 180 mm
414115200
$0.11
14a
OPEN BARREL - Call your local BRP dealership
409003200
Unavailable
14b
Ring Terminal
278000300
Unavailable
15
Switch Boot
570150700
Unavailable
16
Sealing Cap
293000052
$3.19
17
Male Terminal
278000230
$4.39
18
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership
278000891
Unavailable
19
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
20
Gauge Switch Ass'y
278000854
Unavailable
21
SWITCH-IGNIT. - Call your local BRP dealership | Includes 64 - 66. This part replaces 278000501.
278000427
Unavailable
22
BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3
278000881
Unavailable
23
Safety Nut (DESS Switch)
278002963
$3.28
24
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
$84.99
25
Speedometer | Includes 1b,2b,3b,4b,5a
278000848
Unavailable
26
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
27
4 Ways Harness | Includes 1b,4b,5a,10,11e,12c,14b,17
278000832
Unavailable
28
Engine Harness | Includes 6,7,8,9,10,11c,12a,12c,14b,17
278000969
Unavailable
29
OIL / FUEL GAUGE HARNESS - Call your local BRP dealership | Includes 1b,2a,2b,3b,4b,5a,10,11d,14b,17,18
278000895
Unavailable
30
Harness 2 Ways (Incl. 14b)
278000660
Unavailable
31
Harness Anti-Theft | Includes 1c,3c,4b,5a,10,11c
278000831
Unavailable
32
Intermediate Harness | Includes 1d,4b,5a,6,7,8,14a,15,16
278000836
Unavailable
33
Female Terminal | Includes 2d,3a,3b,5a,10,11d
278000661
Unavailable
34
Rear Harness 4 Ways (Tacho) | Includes 1b,2b,3b,4b,5a,9,10,11d,12b,12c,14b,17
278000894
Unavailable
35
2 Ways Harness | Includes 45 - 54.
278000893
Unavailable
36
Tachometer | Includes 1b,2b,3b,4b,5a
278000847
Unavailable
37
Safety Switch This part replaces 278002325.
278002773
$114.99
38
Harness Intermidiate (Speedo) | Includes 1a,1c,2b,2c,3b,4b,5a
278000892
Unavailable
39
Infometer Center Gauge | Includes 1b,1c,2b,2c,3b,4b,5a,19
278000841
Unavailable
40
Gauge Support
293720038
Unavailable
