09- Seat

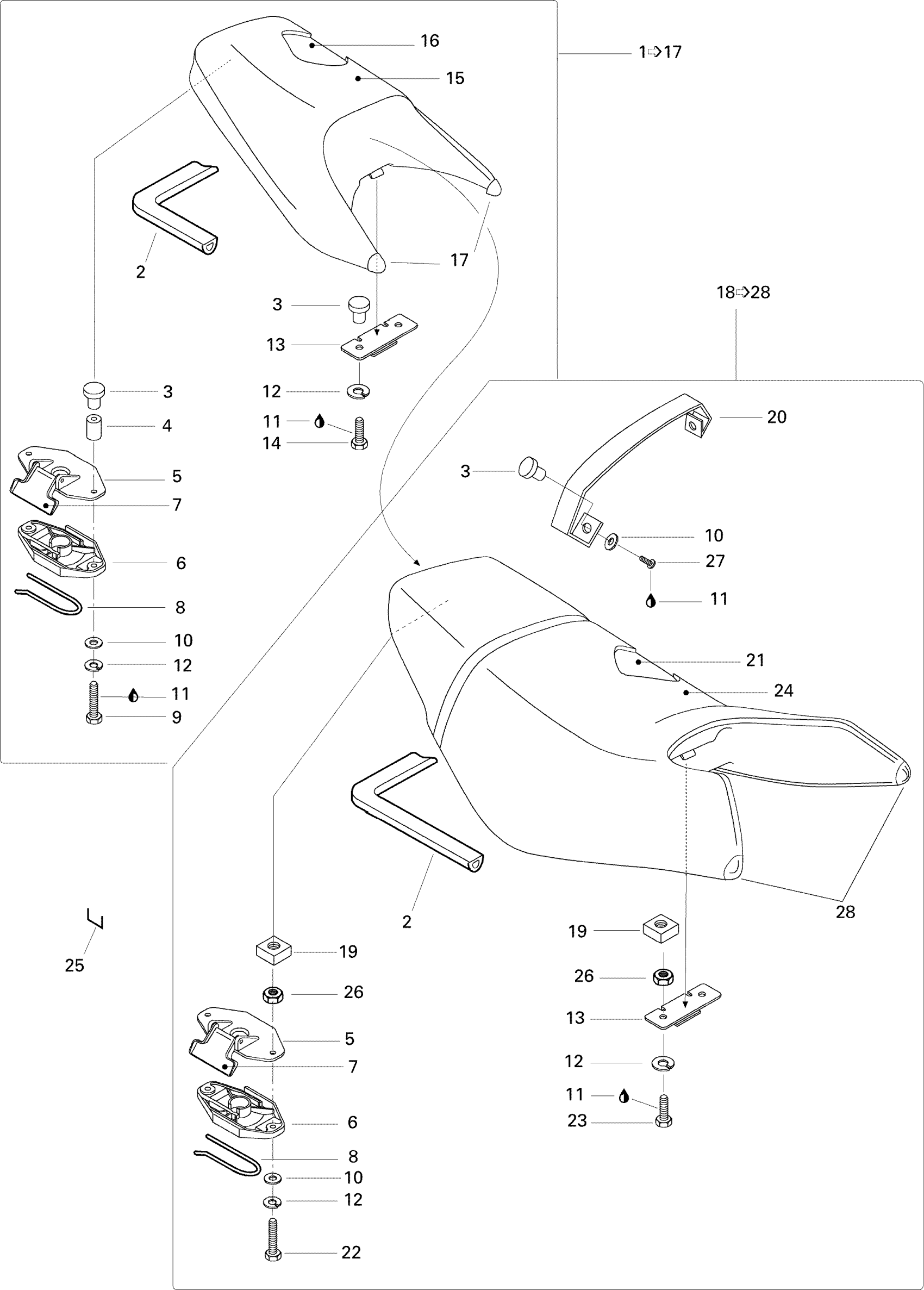

Sea-doo GTX, 5640, 1996 09- Seat Diagram
#
Description
Price
1
Rear Seat Ass'y (Green) | Includes 1 to 17
269000350
Unavailable
2
Was 293200017 Neoprene Seal
219704365
$149.99
3
Nut Welded, M6
293100003
$9.12
4
SPACER - Call your local BRP dealership
291000532
Unavailable
5
Latch Ass'y
269700109
$24.99
6
Latch Ass'y
269700109
$24.99
7
Latch Ass'y
269700109
$24.99
8
Latch Spring
269700017
$9.19
9
Hex. Screw M6 X 35
207163560
$1.49
10
Stainless Flat Washer M6
234061600
$0.33
11
Loctite 243, 10 ml
293800060
$21.49
12
Lock Washer Helical M6
234161601
$1.15
13
Base Keeper
291000174
$19.99
14
Hex. Screw M6 X 16
207161660
$1.59
15
Rear Seat Cover (Green)
269000352
Unavailable
16
Rear Seat Foam
269000353
Unavailable
17
Rear Seat Corner RH
269000392
Unavailable
17
Rear Seat Corner LH
269000393
Unavailable
18
Front Seat Ass'y (Green) | Includes 18 - 38.
269000354
Unavailable
19
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
20
Strap (Green)
269000357
Unavailable
21
Front Foam
269000358
Unavailable
22
Hex. Screw M6 X 30, Scotch Grip
207363060
Unavailable
23
Hex. Forming Screw M6 X 20
207162060
$1.29
24
Front Seat Cover (Green)
269000356
Unavailable
25
Staple
293730005
Unavailable
26
Hex. Nut M6
232061600
$1.15
27
Hex. Screw M6 X 16, Scotch Grip
207361660
$1.15
28
SEAT CORNER - Call your local BRP dealership
269000447
Unavailable
