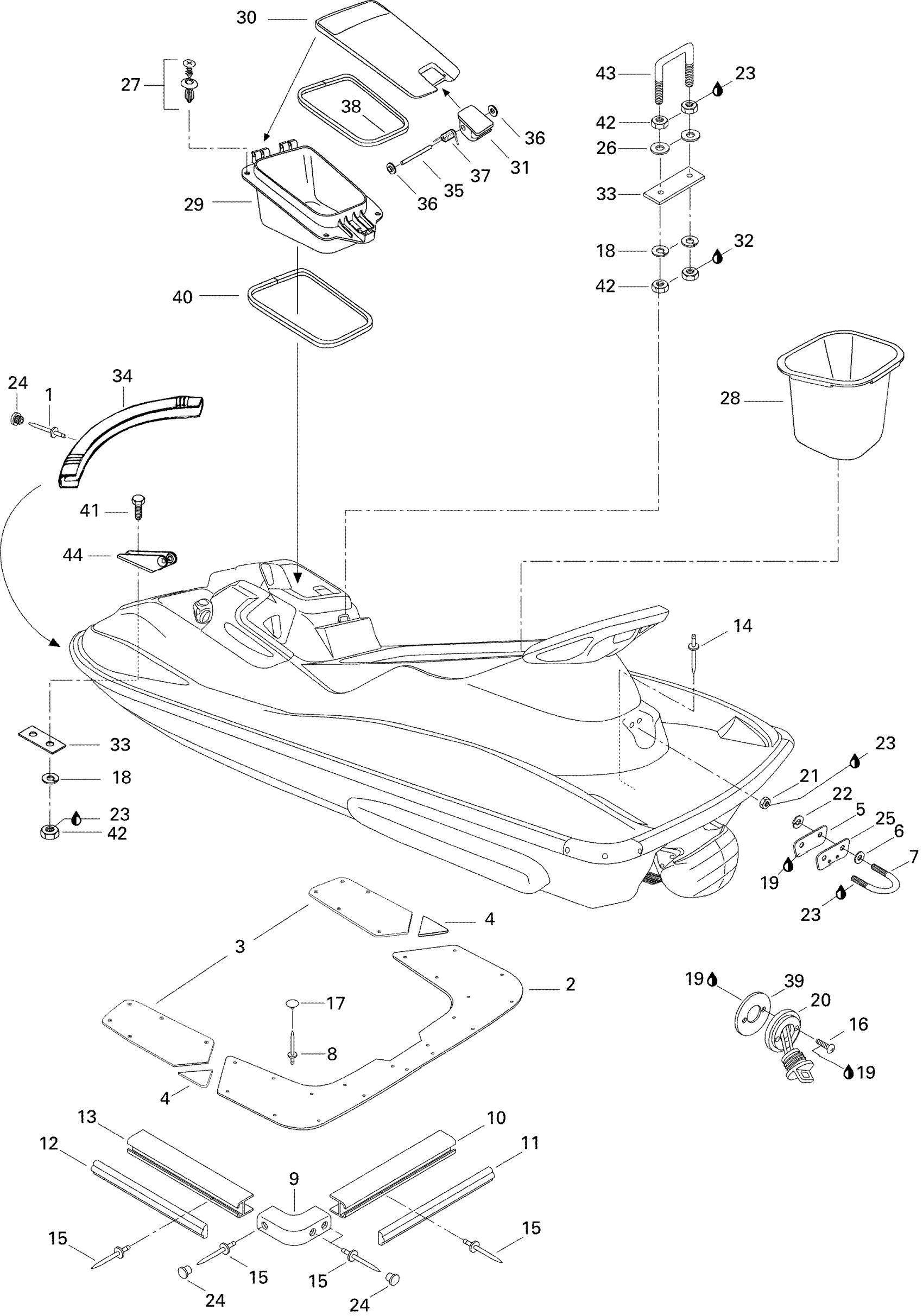

Sea-doo GTX, 5640, 1996 Body, Rear View Diagram

#

Description
Price

1

Pop Rivet 3/16"

293150013

$1.11

2

Center Rear Carpet (Black)

291000983

Unavailable

3

RH Lateral Carpet (Black)

291000981

Unavailable

3

LH Lateral Carpet (Black)

291000982

Unavailable

4

RH Anti-Skid Carpet

291000935

Unavailable

4

LH Anti-Skid Carpet

291000936

Unavailable

5

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

6

Flat Washer M8.5 x 18

293050001

$1.29

7

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

8

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

9

Bumper Corner (Black)

291000220

Unavailable

10

Rear Bumper (Black)

291000227

Unavailable

11

REAR BUMPER TRIM, BLACK - Call your local BRP dealership | Viper Red B-176

291000788

Unavailable

12

LATERAL BUMPER TRIM, BLACK - Call your local BRP dealership | Viper Red B-176

291000843

Unavailable

13

Side Bumper (Black)

291000842

Unavailable

14

Pop Rivet 1/8''

293150033

Unavailable

15

Pop Rivet 3/16"

293150014

$0.87

16

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

17

Black, Snap Cap

293000014

$0.85

18

Lock Washer Helical M6

234161601

$0.92

19

Silicone Sealant 51388, 300 ml

296000309

$35.72

20

Drain Plug

292000187

$10.21

21

Hex. Nut M8

232081600

$1.22

22

Lock Washer 8 mm, Stainless

234181601

$0.46

23

Loctite 271, 10 ml

293800005

$20.77

24

Bumper Plug, Black

291000339

$2.34

25

Finition Plate

291000544

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.64

27

SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership

211000088

Unavailable

28

Rear Tray (Seat)

269500270

Unavailable

29

Box Gloves | GTI 5641.

269500257

Unavailable

30

Door-Box Gloves | GTI 5641.

269500256

Unavailable

31

Latch, Black

269500553

$16.87

32

Loctite 243, 10 ml

293800060

$20.77

33

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

34

NOSE BUMPER (BLACK) - Call your local BRP dealership

291000223

Unavailable

35

Pin

211400008

$7.32

36

Push Nut | Not shown

211100002

$0.83

37

Latch Spring

291000922

$4.80

38

GASKET - Call your local BRP dealership

293250060

Unavailable

39

GASKET - Call your local BRP dealership

293250030

Unavailable

40

Seal 1000Mm Long

219704373

$7.64

41

Hex. Screw M6 X 25

207162560

$1.22

42

Hex. Nut M6

232061600

$0.91

43

SEAT HOOK - Call your local BRP dealership

291000468

Unavailable

44

SHOCK SUPPORT - Call your local BRP dealership

291000855

Unavailable
